Power button/card reader board
Table 5-6 Power button/card reader board description and part number
Description Spare part number
Power button/card reader board
NOTE: The power button board spare part kit does not include the cable. The cable is available as spare
part number L64887-001 in models with a 15 W processor and L64888-001 in models with a 6 W
processor.
L64886-001
Before removing the power button/card reader board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).

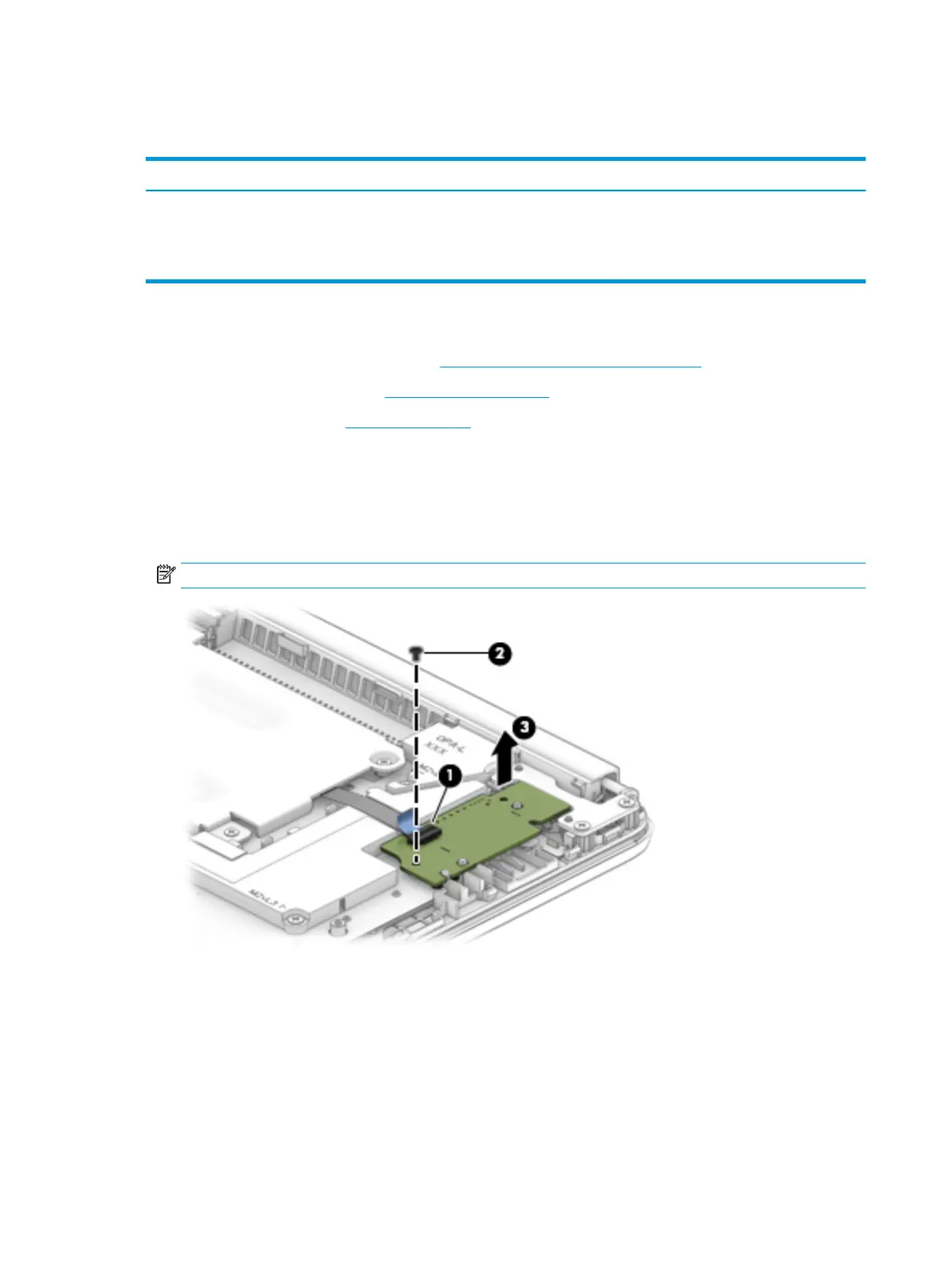

Remove the power button/card reader board:
1. Disconnect the cable from the board (1).
2. Remove the Phillips M2.0 × 3.0 screw (2) that secures the board to the computer.
3. Remove the board from the computer (3).
NOTE: The following illustration shows a fanless model. Computer appearance can vary.
Reverse this procedure to install the power button/card reader board.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
