Battery connector (fanless products only)
Table 5-12 Battery connector description and part number
Description Spare part number
Battery connector L64889-001
Before removing the battery connector, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
4. Remove the heat plate (see Heat sink (thermal module) on page 41).

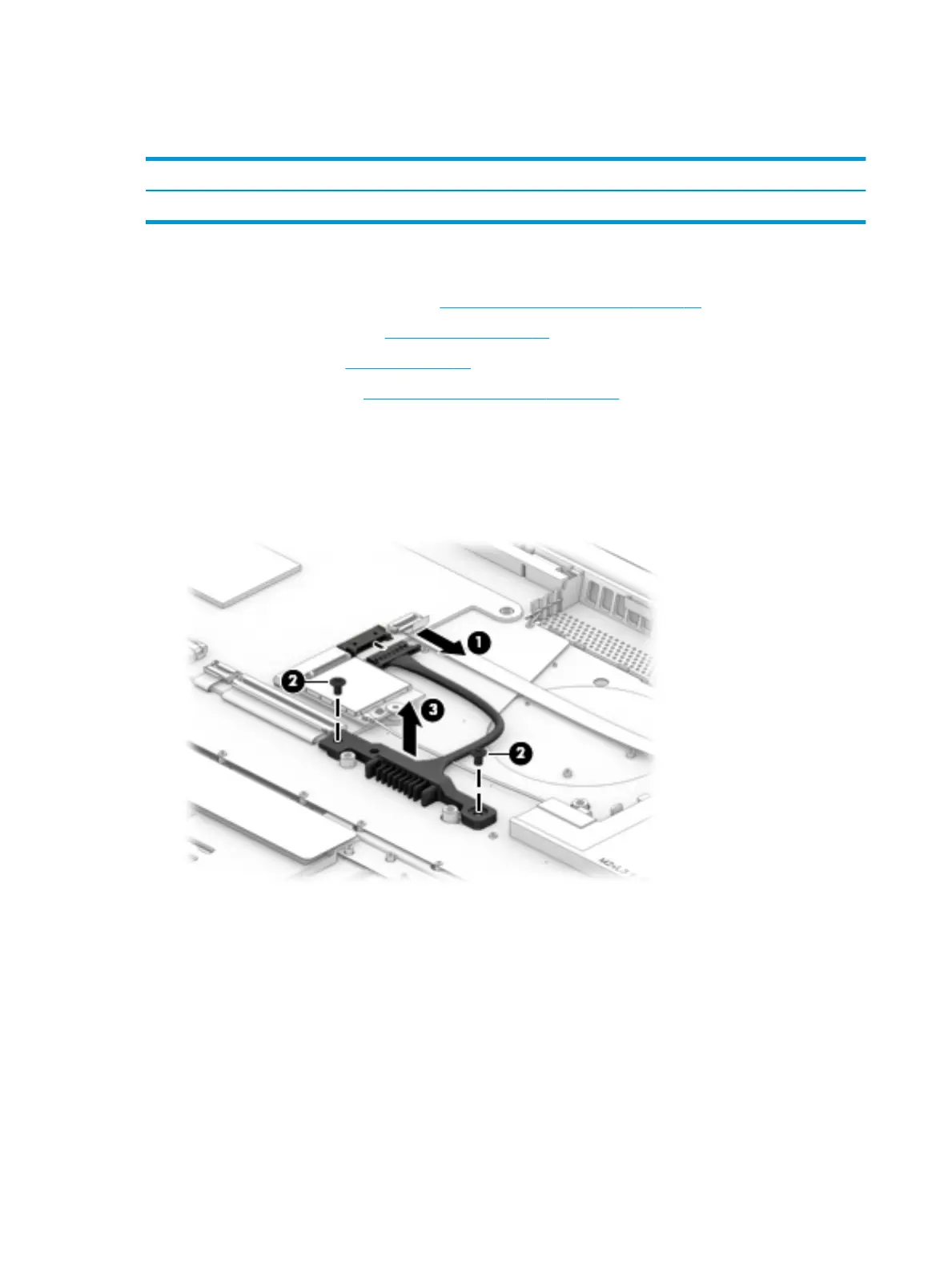

Remove the battery connector:
1. Disconnect the battery connector cable from the system board (1).
2. Remove the two Phillips M2.0 × 3.0 screws (2) that secure the connector to the computer.
3. Lift the battery connector out of the computer (3).
Reverse this procedure to install the battery connector.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
