HP 16600A Series User Manual

51
16522p05
HP 16522AHP 16522A
HP 16522AHP
16522A
5-Card Module
Expander
J12 J11 J10 J9
J7 J8
Expander
J12 J11 J10 J9
J7 J8
Master
J12 J11 J10 J9
J7 J8
Expander
J12 J11 J10 J9
J7 J8
Expander
J12 J11 J10 J9
J7 J8

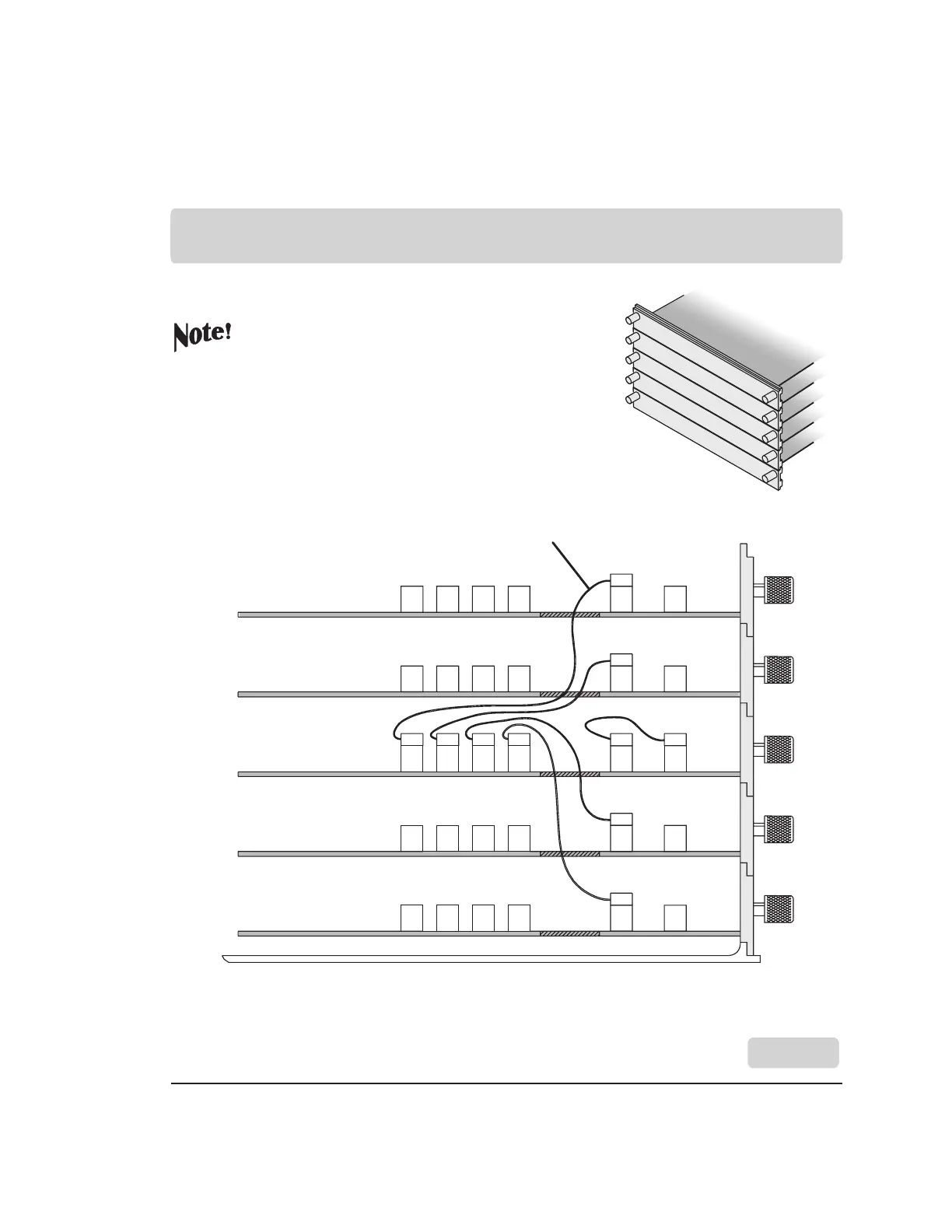

Carefully slide the five cards half way into the mainframe slots.
Cable the bottom two Expanders to the Master first.
Cable the upper two Expanders to the Master.
Gently slide the cabled assembly fully into the frame and
tighten.
EXPANDER
EXPANDER
MASTER
EXPANDER
EXPANDER
2x10 Cable
HP 16522A
Done
Done
for HP 16700A and HP 16702A
