Removal and Replacement Procedures
Maintenance and Service Guide 5–29
6. Turn the computer display-side up with the front toward you.
7. Open the computer as far as possible.

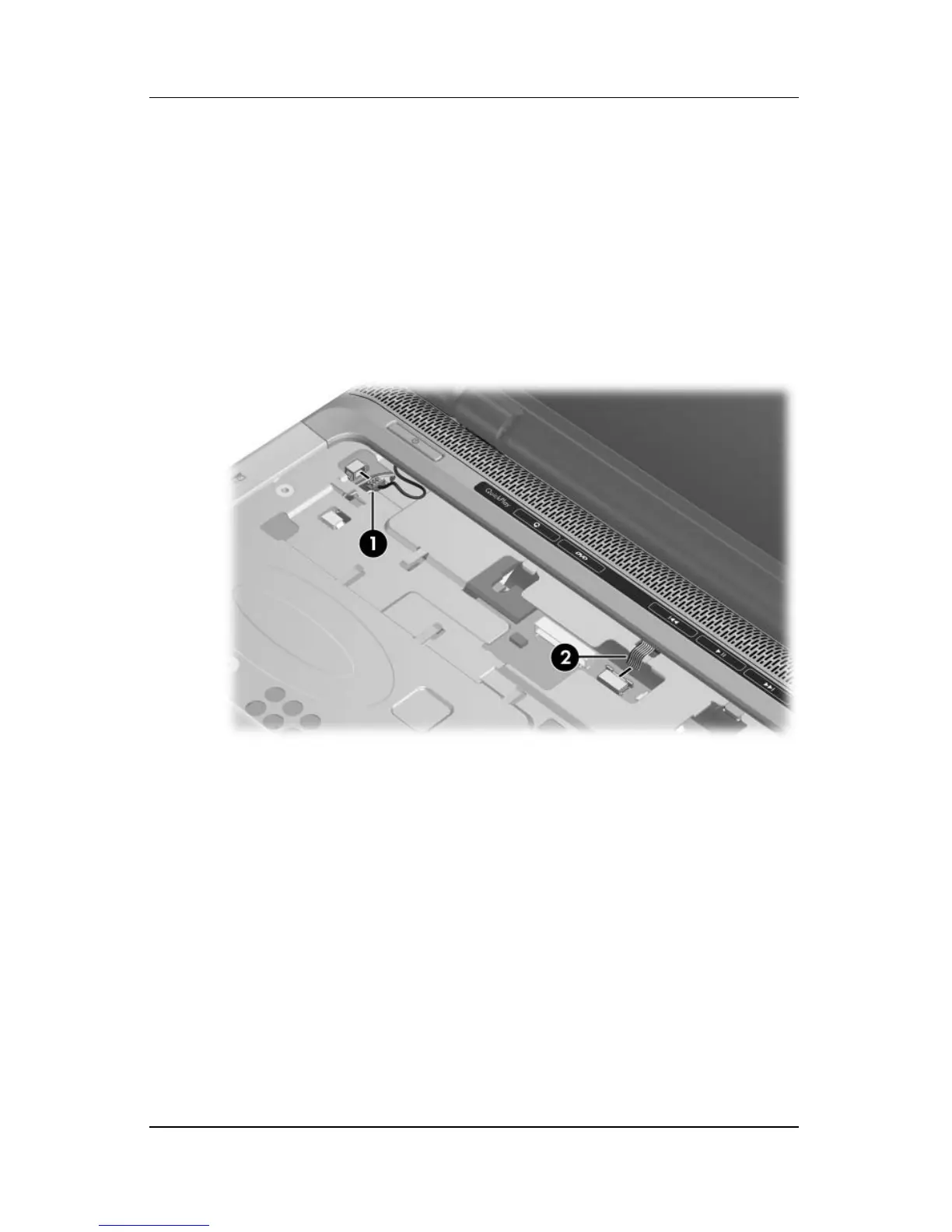

8. Disconnect the power button board cable 1 from the
system board.
9. Release the ZIF connector to which the LED board cable 2 is
connected and disconnect the cable from the system board.
Disconnecting the Switch Cover Cables
