Removal and Replacement Procedures
Maintenance and Service Guide 5–35

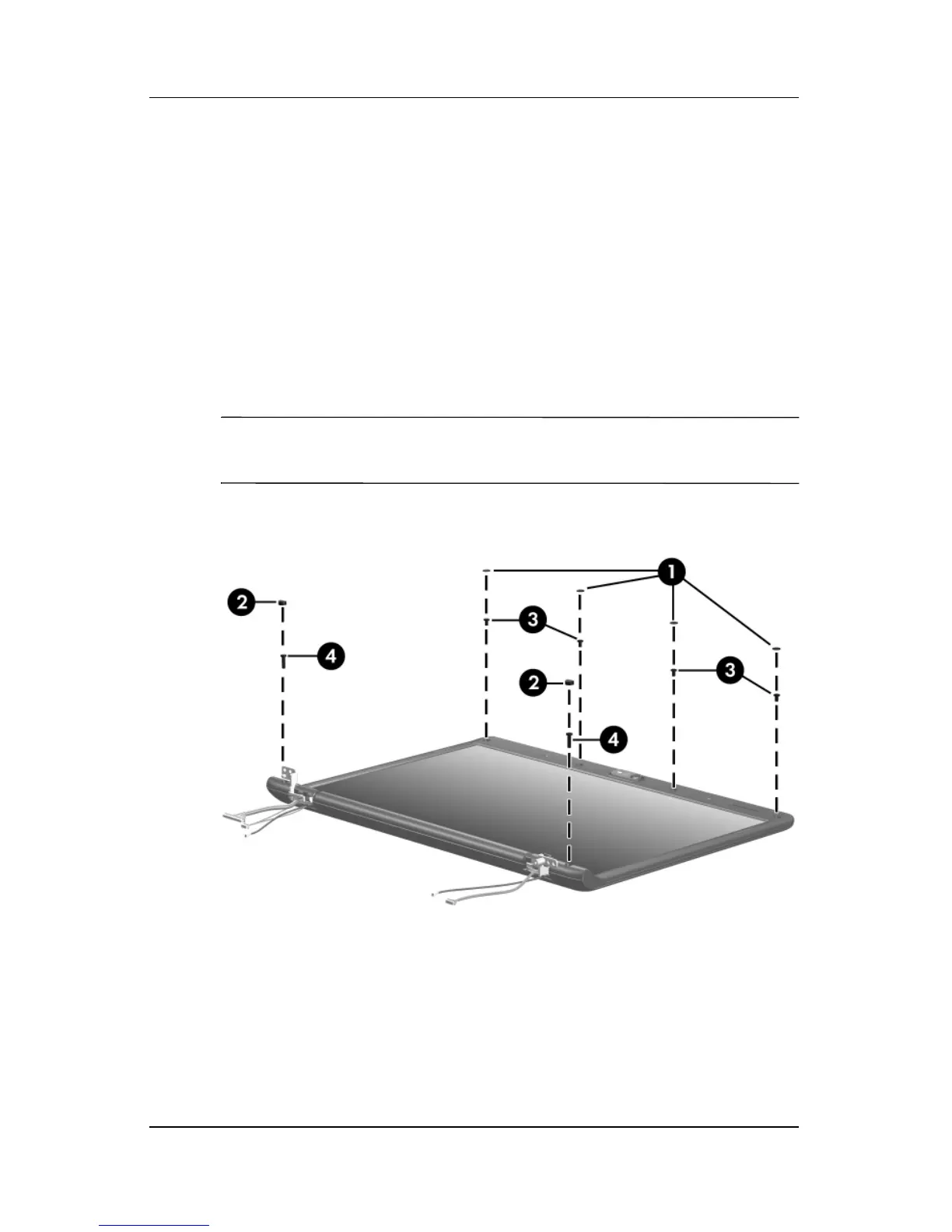

10. Remove the following:
1 Four rubber screw covers on the top edge of the
display bezel
2 Two rubber screw covers on the bottom edge of
the display bezel
3 Four Phillips PM2.5×5.0 screws on the top edge of the
display bezel
2 Two Phillips PM2.5×9.0 screws on the bottom edge of
the display bezel
The display bezel rubber screw covers are included in the
Display Plastics Kit, spare part number 417104-001.
Removing the Display Bezel Screws
