Removal and Replacement Procedures
Maintenance and Service Guide 5ā43
ā
The microphones are included in the Display Cable Kit, spare
part number 410099-001.

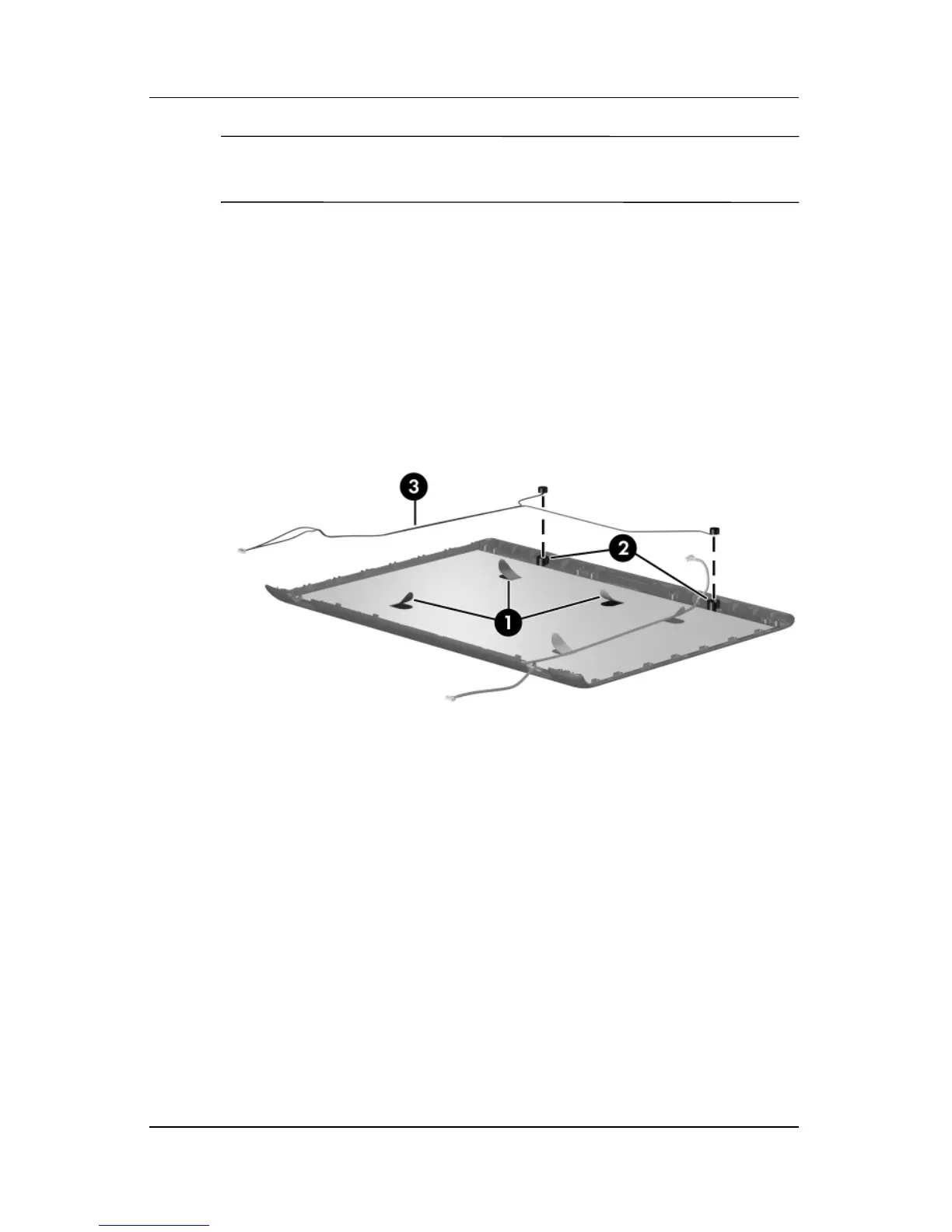

30. If it is necessary to replace the microphones and cables,
release the retention tabs 1 built in to the display enclosure
lining that secure the microphones and cables to the
display enclosure.
31. Remove the microphones from the clips 2 in the
display enclosure.
32. Remove the microphone cables 3 from the display enclosure.
Removing the Microphones
