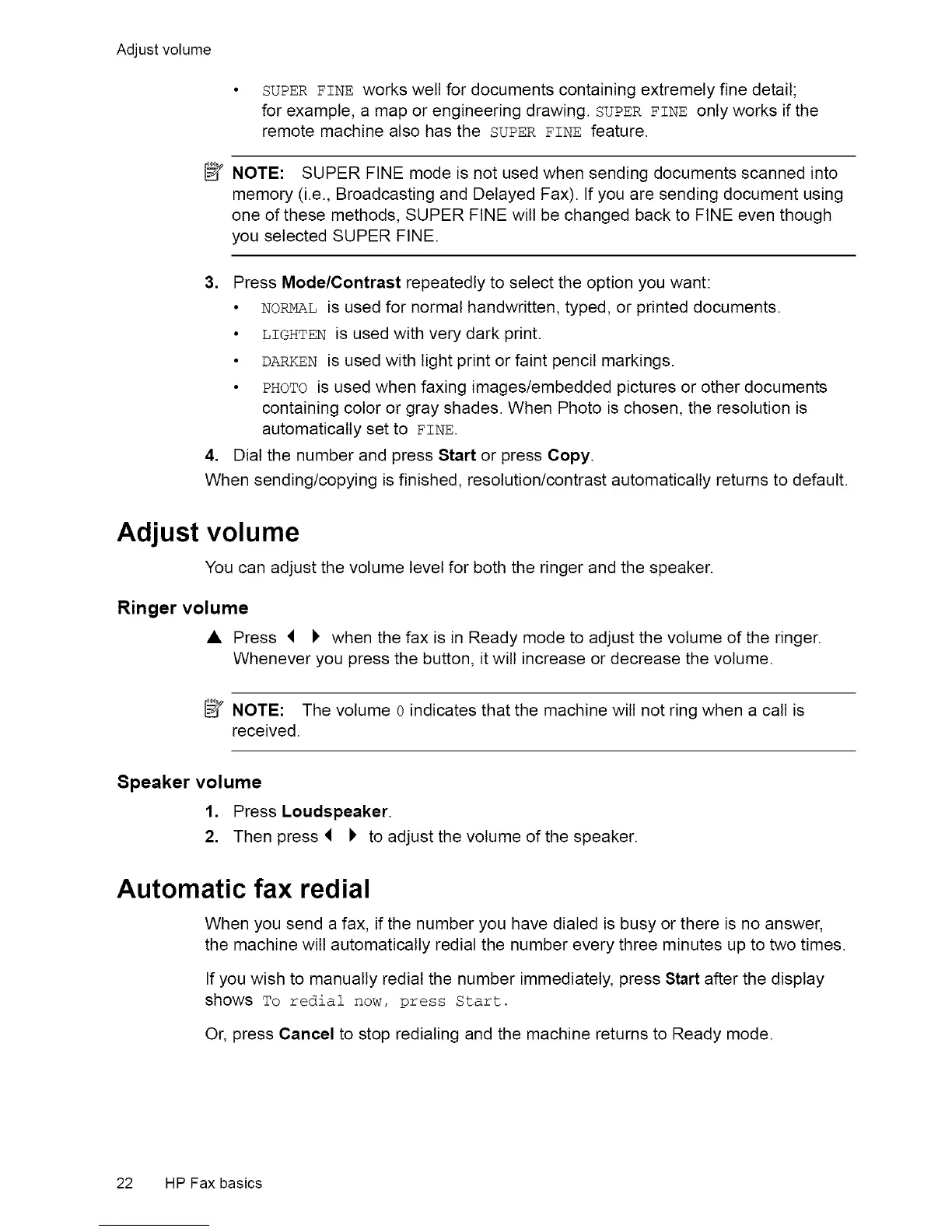

HP 2140 User Manual

Adjustvolume
• SUPER £1NE works well for documents containing extremely fine detail;
for example, a map or engineering drawing. SUPER £INE only works if the
remote machine also has the suP_.R £TN_. feature.
_P NOTE: SUPER FINE mode is not used when sending documents scanned into
memory (i.e., Broadcasting and Delayed Fax). If you are sending document using
one of these methods, SUPER FINE will be changed back to FINE even though
you selected SUPER FINE.
3. Press Mode/Contrast repeatedly to select the option you want:
• NOmVA<is used for normal handwritten, typed, or printed documents.
• T,TG_TENis used with very dark print.
• hARKEN is used with light print or faint pencil markings.
• P_OTO is used when faxing images/embedded pictures or other documents
containing color or gray shades. When Photo is chosen, the resolution is
automatically set to £INE.
4. Dial the number and press Start or press Copy.
When sending/copying is finished, resolution/contrast automatically returns to default.
Adjust volume
You can adjust the volume level for both the ringer and the speaker.
Ringer volume
• Press _ I, when the fax is in Ready mode to adjust the volume of the ringer.
Whenever you press the button, it will increase or decrease the volume.
_ NOTE: The volume 0 indicates that the machine will not ring when a call is
received.
Speaker volume
1. Press Loudspeaker.
2. Then press < I, to adjust the volume of the speaker.
Automatic fax redial
When you send a fax, if the number you have dialed is busy or there is no answer,
the machine wilt automatically redial the number every three minutes up to two times.
If you wish to manually redial the number immediately, press Start after the display
shows To redial now, press Start.
Or,press Cancel to stop redialing and the machine returns to Ready mode.
22 HP Fax basics

HP 2140 Specifications

General

HDD speed	5400 RPM
HDD capacity	160 GB
HDD interface	SATA
Storage media	HDD
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Battery life (max)	4 h
Number of battery cells	3
Bus type	FSB
Stepping	C0
Tjunction	90 °C
Processor cache	0.512 MB
Processor cores	1
Processor model	N270
Processor family	Intel Pentium Mobile
Processor series	Intel Atom N200 Series
Processor socket	Socket F (1207)
Processor threads	2
Processor codename	Diamondville
Processing Die size	26 mm²
Processor frequency	1.6 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	533 MHz
Processor operating modes	32-bit
Thermal Design Power (TDP)	2.5 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	47 M
HD type	Not supported
Display diagonal	10.1 \
Display resolution	1024 x 576 pixels
Native aspect ratio	16:9
Operating system installed	Windows XP Home Edition
Memory slots	1x SO-DIMM
Internal memory	1 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	1 x 1 GB
Graphics card	GMA 950
Dimensions (WxDxH)	261.4 x 166.2 x 26.7 mm
Wireless technology	IEEE 802.11 a/b/g/n
Motherboard chipset	Intel 945GSE
Keyboard layout	-
Pointing device	Touchpad
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Audio system	HD
Cable lock slot type	Kensington
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC adapter power	65 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Product type	Netbook
Country of origin	China
Processor code	SLB73
Processor ARK ID	36331
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3

Weight and Dimensions

Depth	166.2 mm
Width	261.4 mm
Height	26.7 mm
Weight	1190 g
