HP 2510p - Compaq Business Notebook Maintenance And Service Guide

4. Remove the battery (see Battery on page 44).
5. Remove the keyboard (see
Keyboard on page 60).

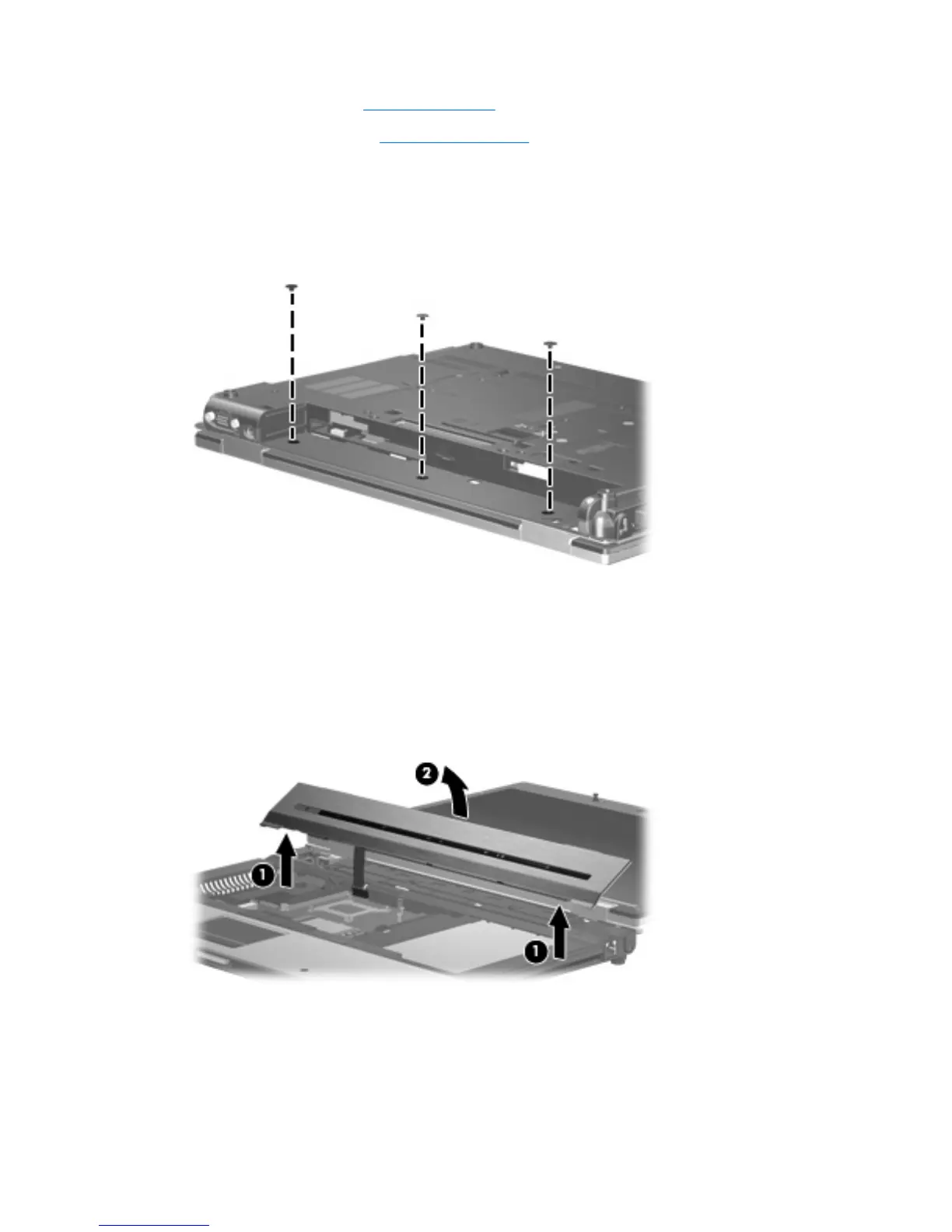

Remove the switch cover:
1. Turn the computer upside-down, with the rear toward you.
2. Remove the three Phillips PM2.0×2.0 broadhead screws that secure the switch cover to the
computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
5. Release the switch cover by lifting the left and right inside edges of the switch cover (1) until it
disengages from the computer.
6. Lift the switch cover (2) up and forward and rest it on the computer while being careful not to
disconnect the LED board cable from the system board.
66 Chapter 4 Removal and replacement procedures

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
