HP 2510p - Compaq Business Notebook Maintenance And Service Guide

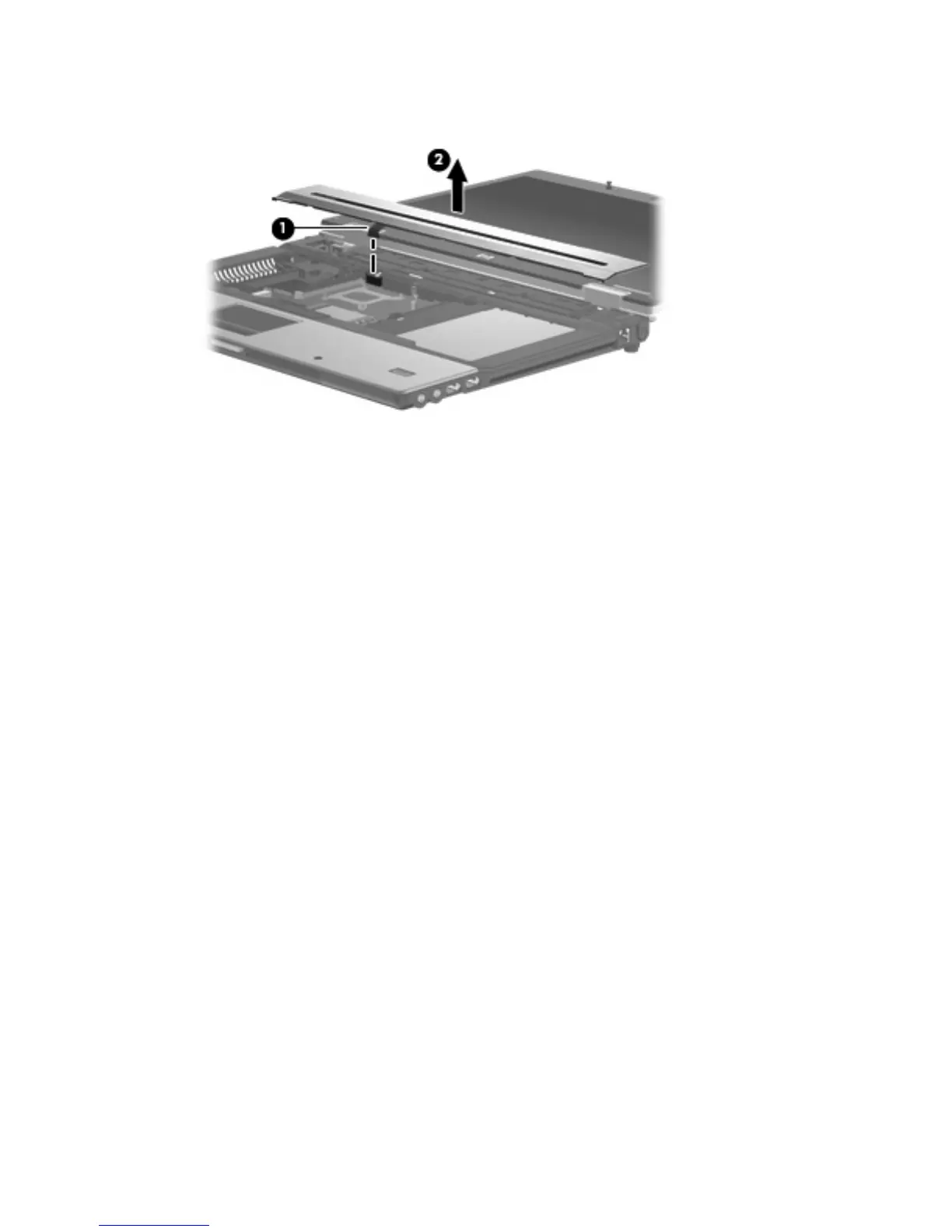

7. Disconnect the LED board cable (1) from the ZIF connector on the system board, and then remove
the switch cover from the computer (2).
Reverse this procedure to install the switch cover.
Component replacement procedures 67

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
