HP 255 G7

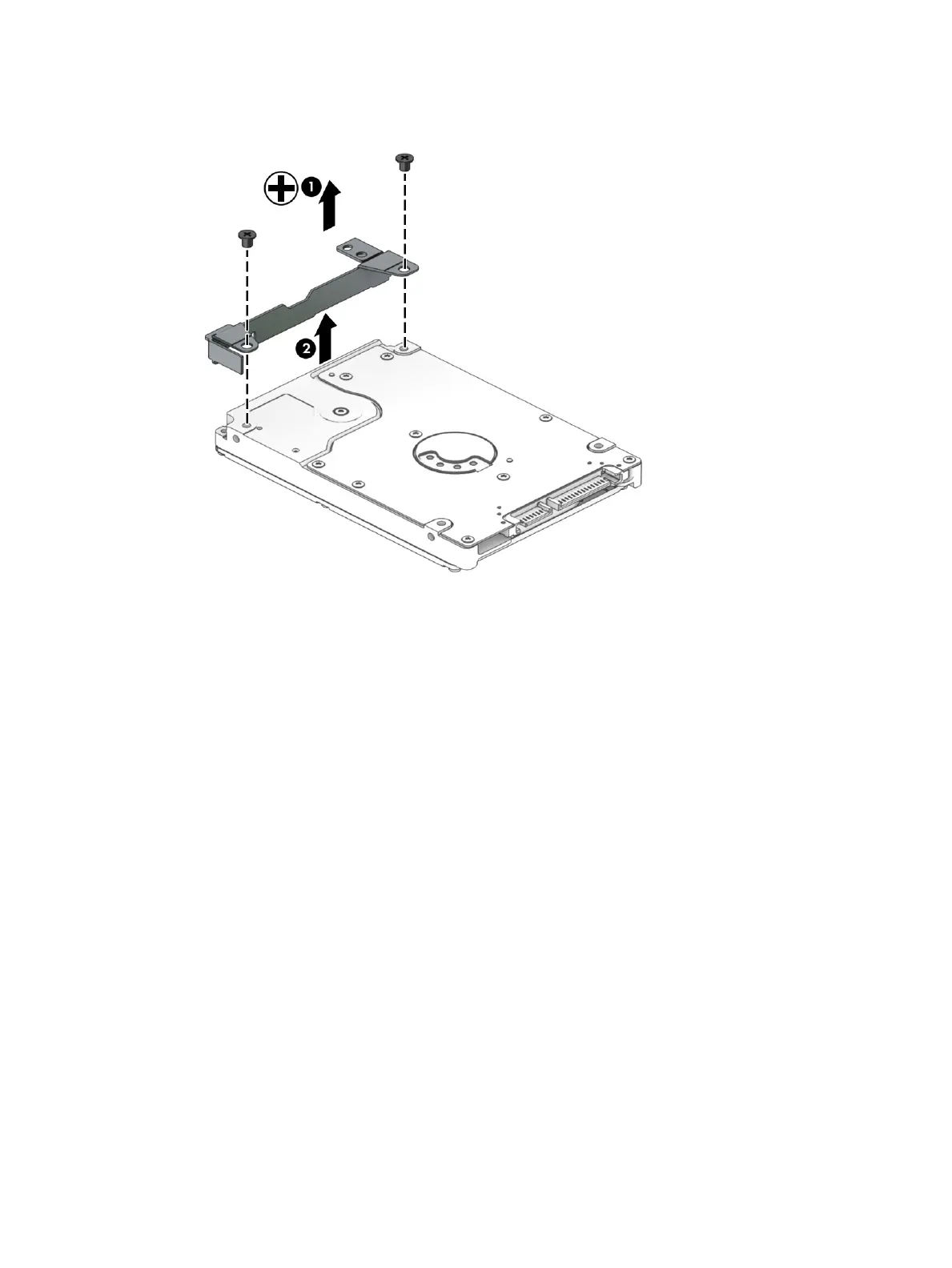

2. If it is necessary to disassemble the hard drive, remove the two Phillips M3.0 × 3.0 screws (1), and then
lift the bracket o the drive (2).
Reverse this procedure to reassemble and install the hard drive.
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
