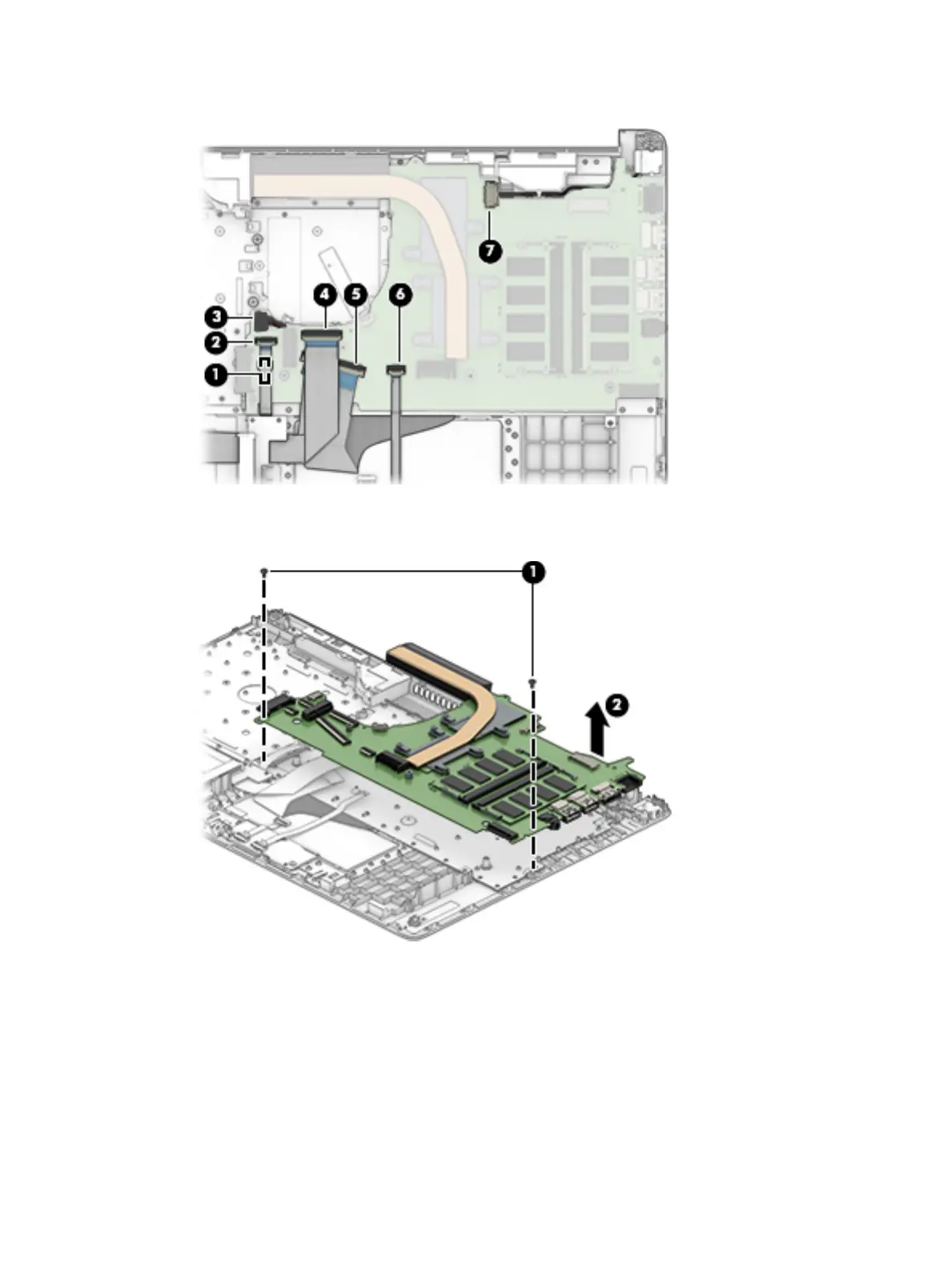

(7): Power connector cable
2. Remove the two Phillips M2.0 × 3.0 screws that secure the system board to the computer (1).
3. Lift the left side of the system board, and then remove the system board from the computer (2).
Reverse this procedure to install the system board.
Component replacement procedures 63
