HP 322pf - D-SUB Connector CN503

18

3) Lift the CN502 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
D-SUB connector CN503


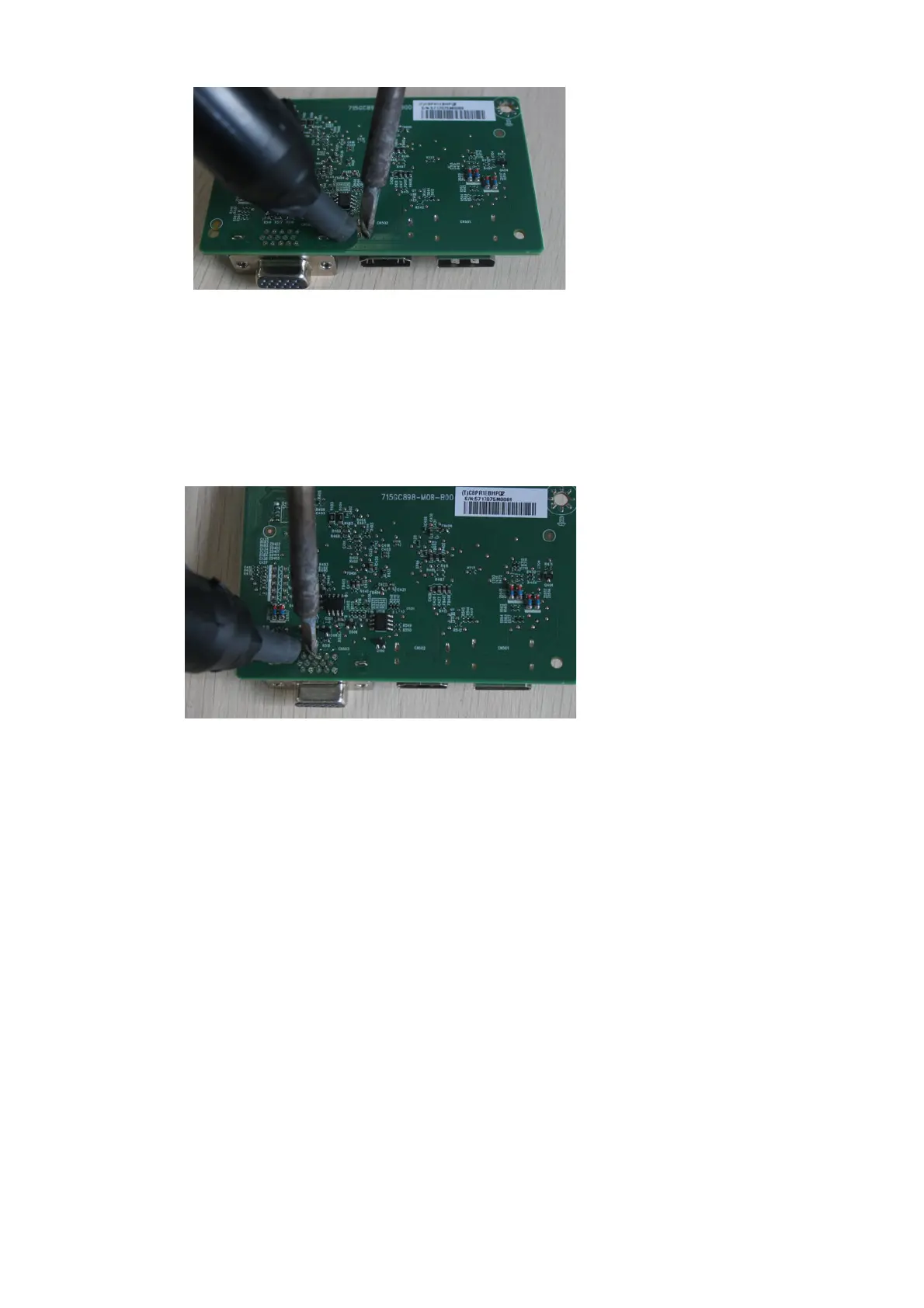

Repair the D-SUB connector:

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN503 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
