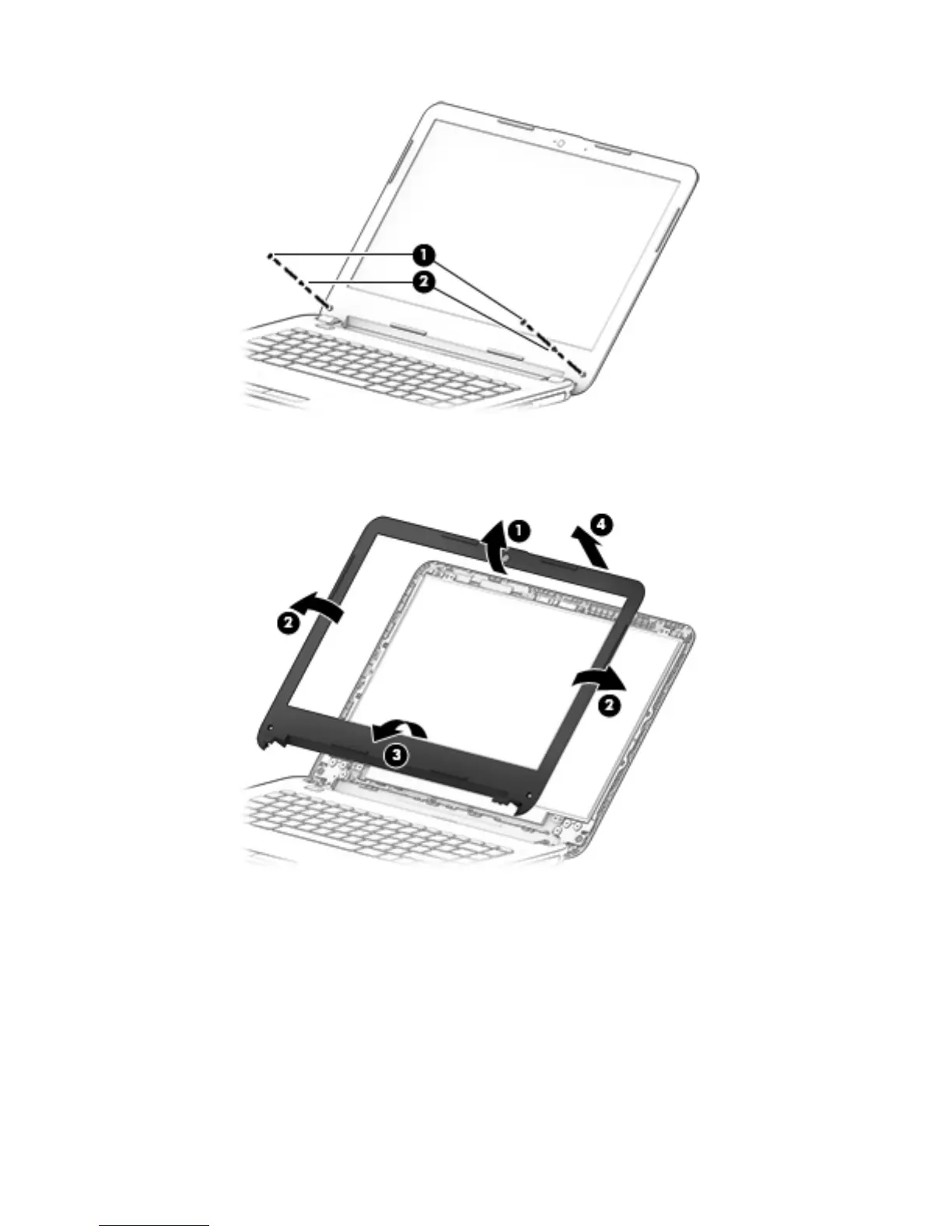

b. Flex the inside of the top edge (1), the left and right edges (2), and the bottom edge (3) until the
bezel disengages from the display enclosure.
c. Remove the display bezel (4).
2. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift to disengage the adhesive that secures the webcam/microphone module to the display, and
then remove the module (1) enough to disconnect the cable.
Component replacement procedures 31
