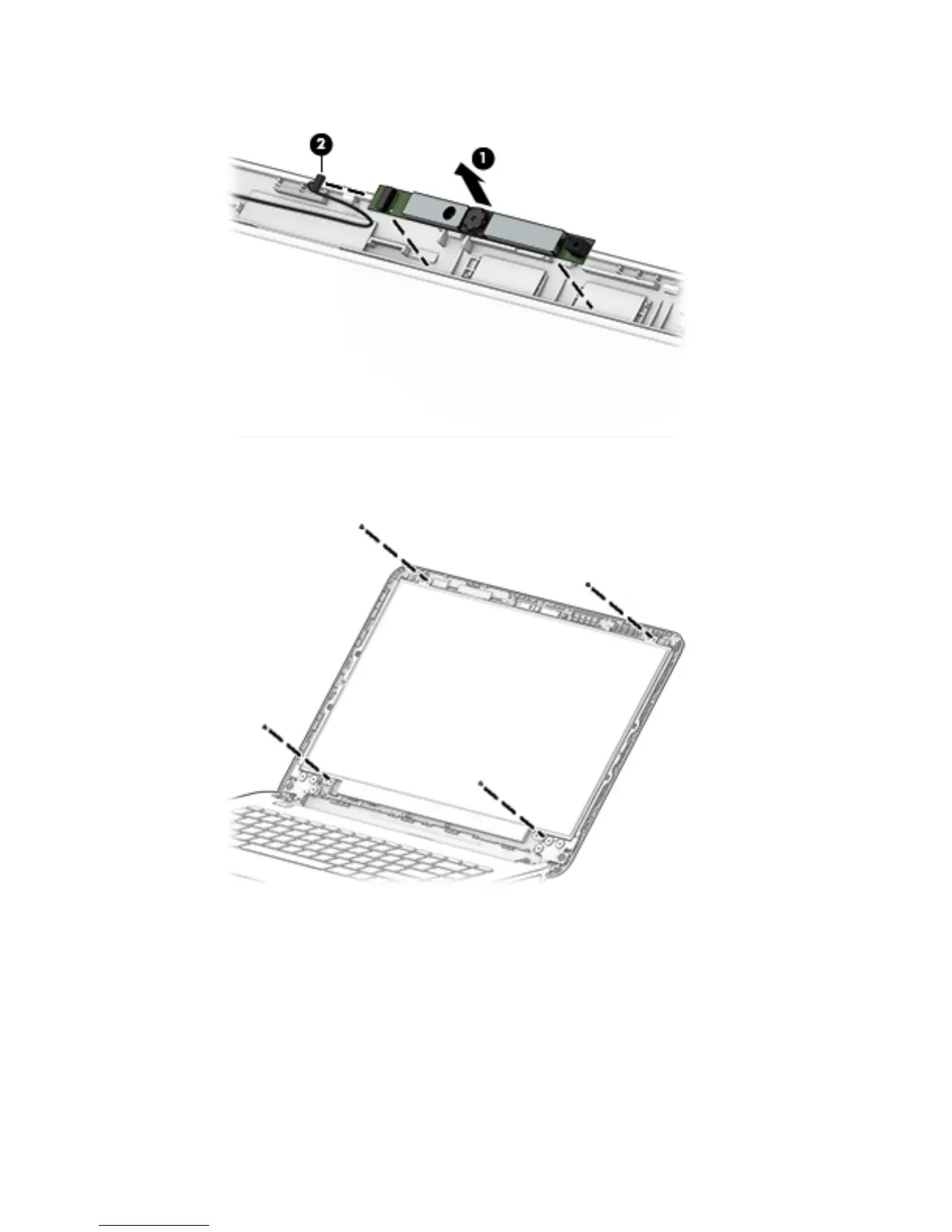

c. Disconnect the cable (2) from the module.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the enclosure.
b. Rotate the display panel o the display enclosure (1) to gain access to the display cable connection
on the back of the panel.
32 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
