c. Remove the display bezel (4).
NOTE: The following image shows the display panel connected to the computer. It will not be
connected in this procedure.

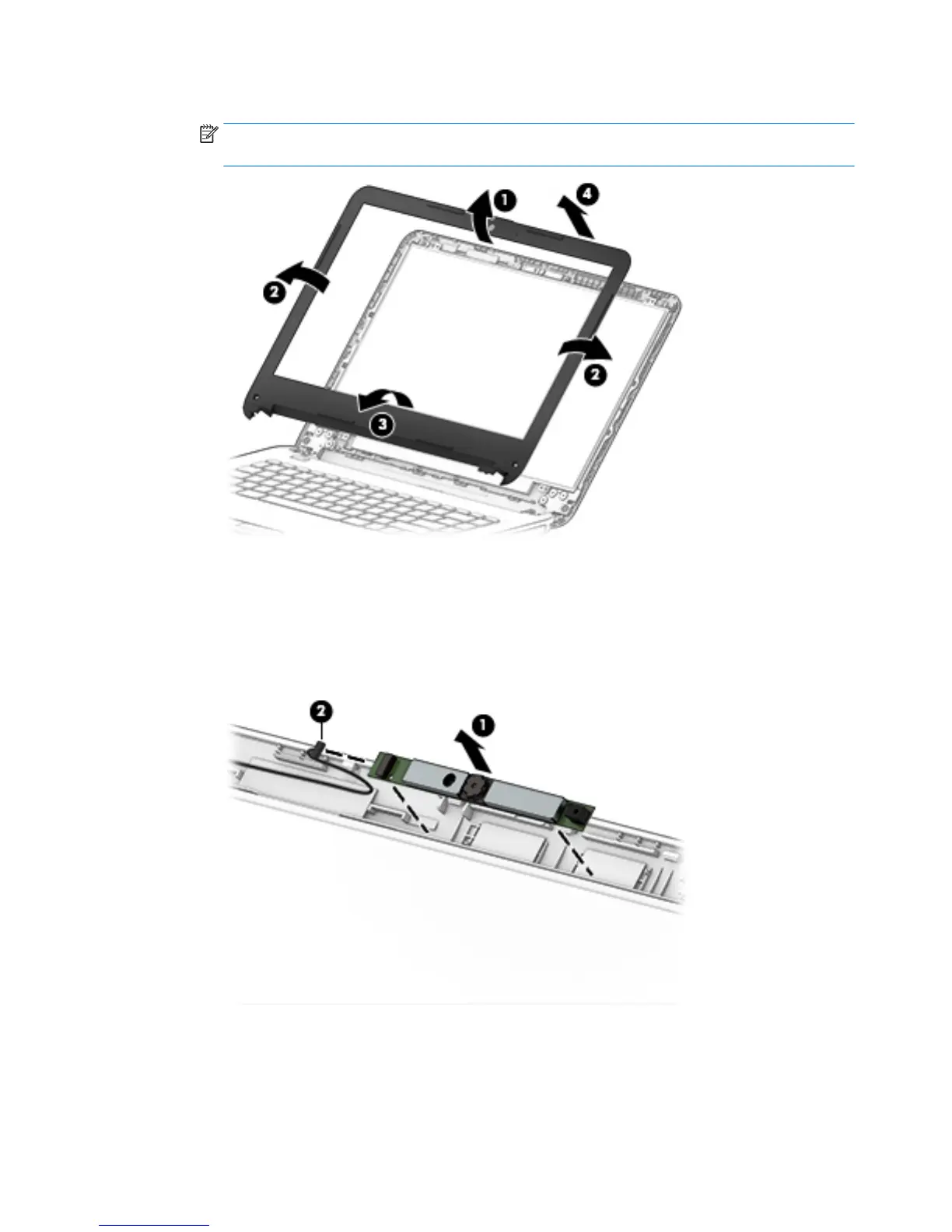

2. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift to disengage the adhesive that secures the webcam/microphone module to the display, and
then remove the module (1) enough to disconnect the cable.
c. Disconnect the cable (2) from the module.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the enclosure.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
