6. To remove the display/webcam cable, remove the cable from the clips built into the display enclosure,
and then remove the cable from the display enclosure.
7. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.

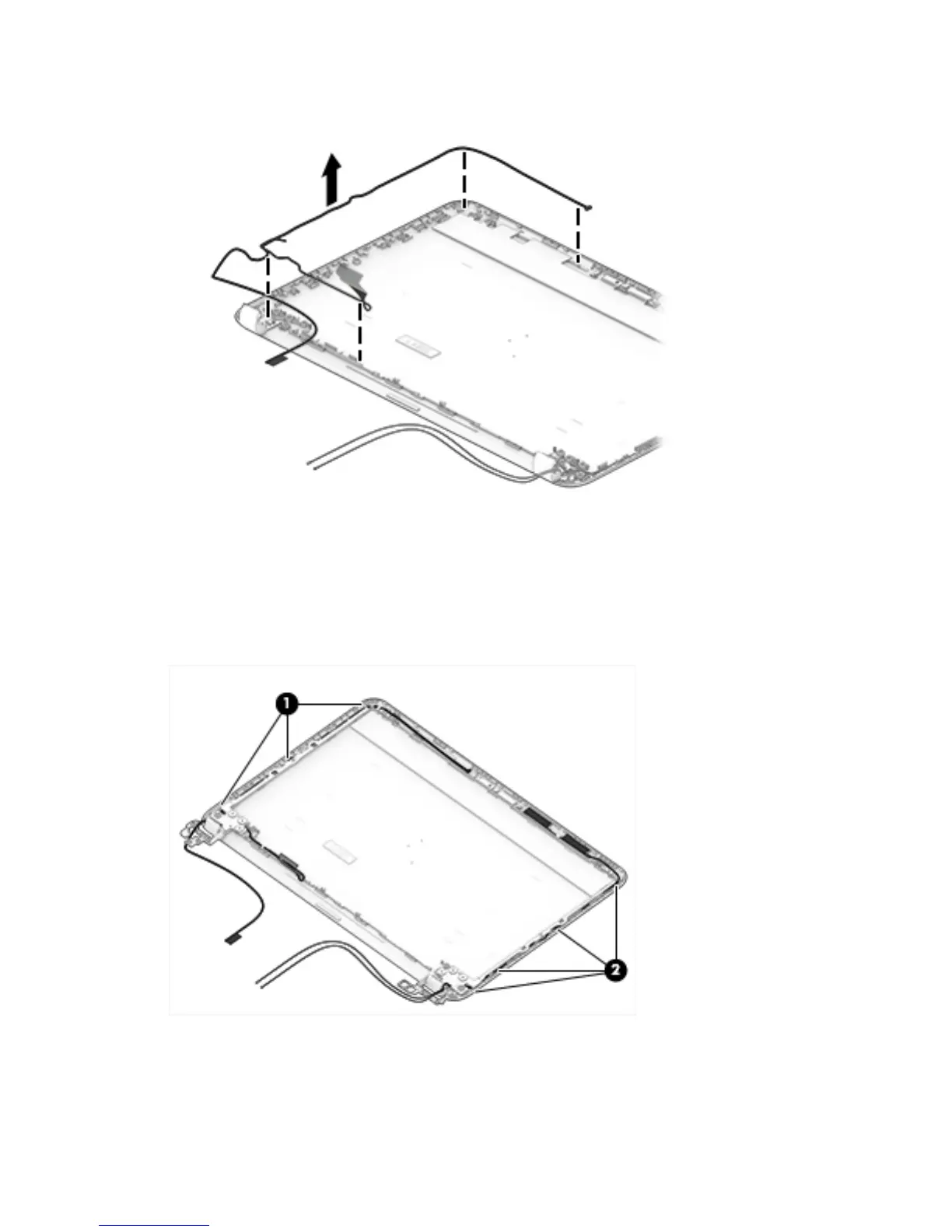

Use the following image to determine proper cable routing in the display.
(1): Display/webcam cable
(2): Antenna cables
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 63
