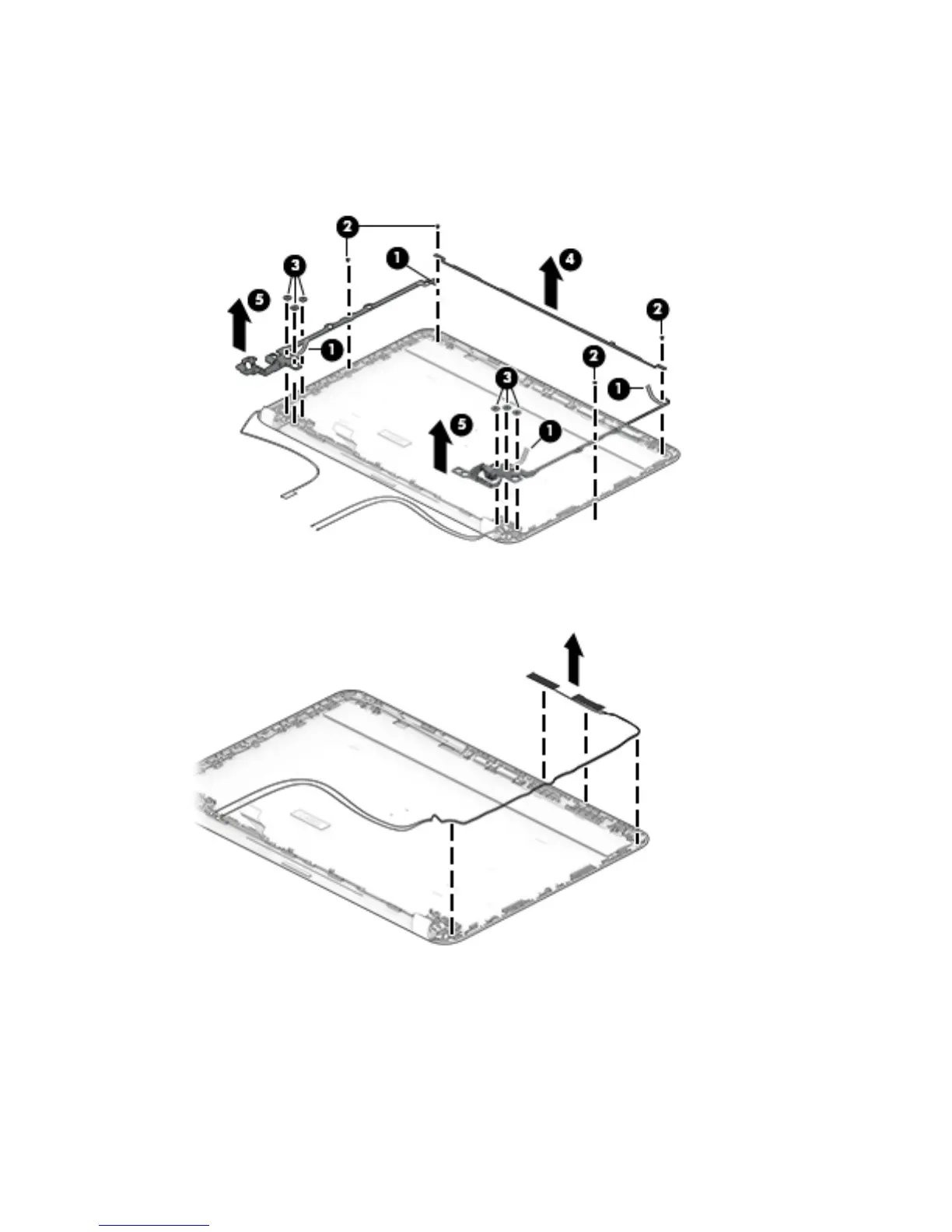

a. Remove the tape that secures the hinges to the display enclosure (1).
b. Remove the two Phillips PM2.0×3.0 screws (2) from the top half of the left and right hinges.
c. Remove the six Phillips PM2.0×3.0 screws (3) from the bottom of the hinges.
d. Remove the top hinge (4) and the left and right hinges (5).
5. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips built into the display enclosure, and then remove the cables.
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
