Fan

Table 5-9 Fan description and part number

Description Spare part number

Fan for use in models with a backlit keyboard L63587-001

Fan for use in models without a backlit keyboard L63588-001

Before removing the fan, follow these steps:

1. Prepare the computer for disassembly (Preparation for disassembly on page 24).

2. Remove the bottom cover (see Bottom cover on page 25).

3. Remove the battery (see Battery on page 27).

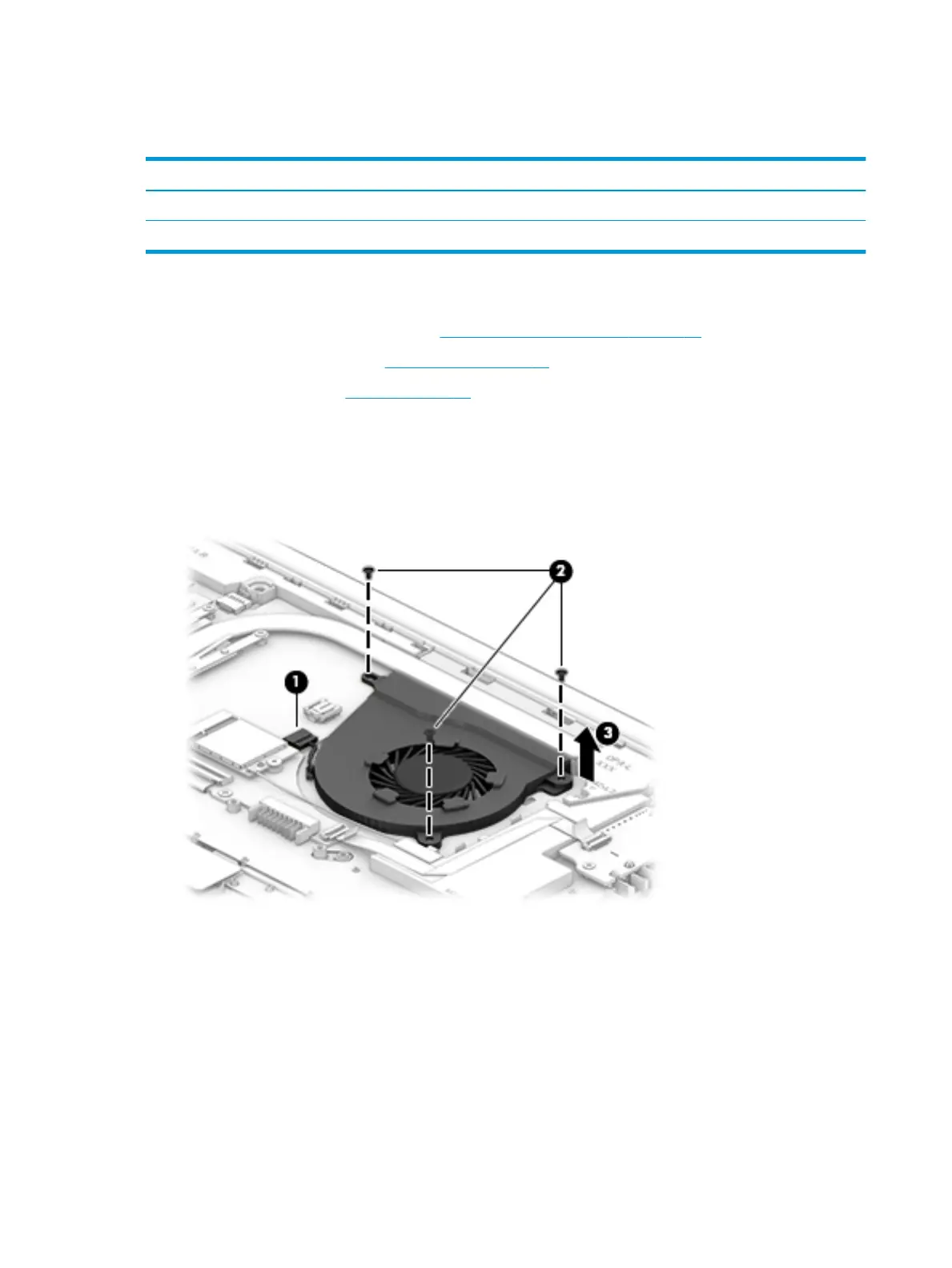

Remove the fan:

1. Disconnect the fan cable from the system board (1).

2. Remove the three Phillips M2.0 × 3.0 screws (2) that secure the fan to the computer.

3. Remove the fan from the computer (3).

Reverse this procedure to install the fan.

36 Chapter 5 Removal and replacement procedures for authorized service provider parts
