3600-48 v2 SI Switch panel views

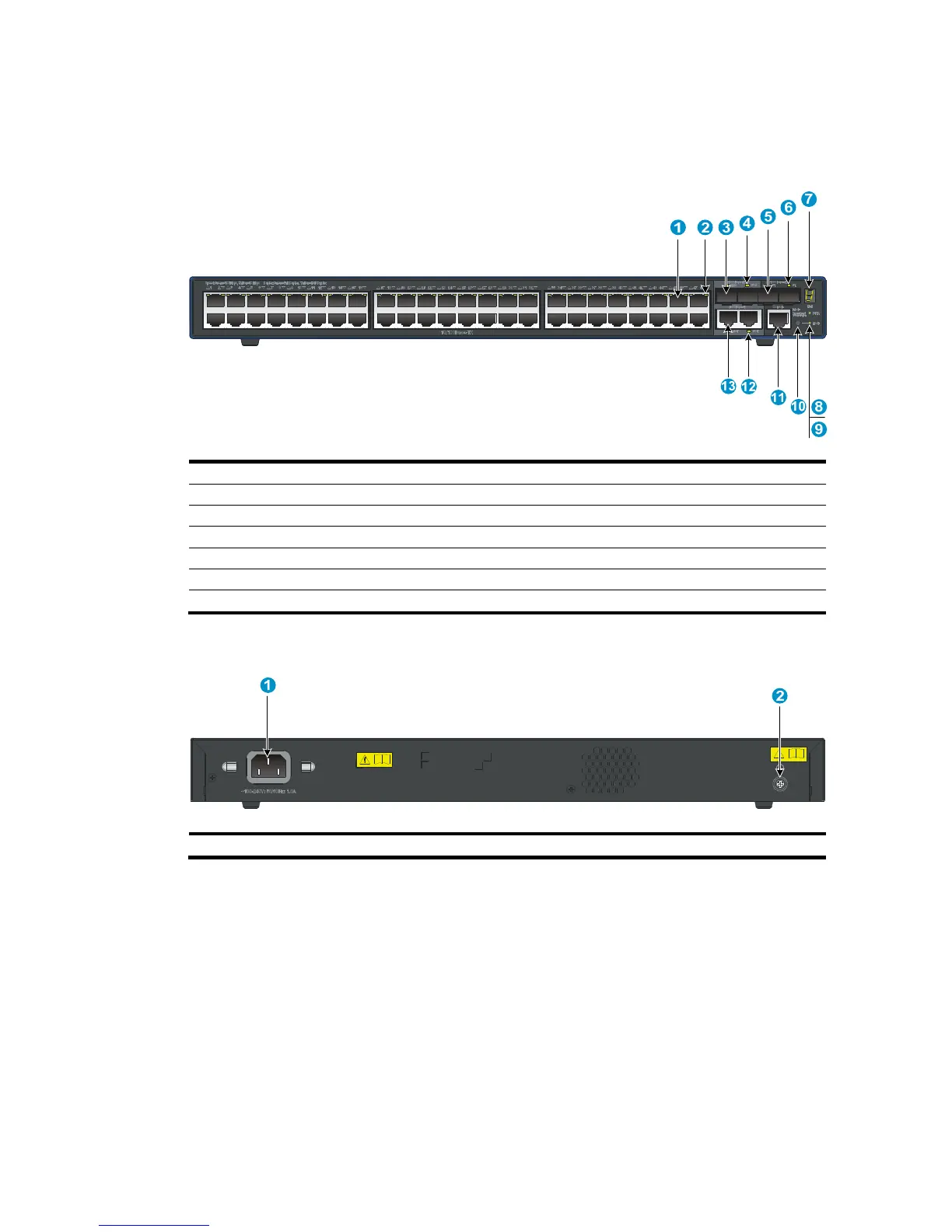

Figure 7 3600-48 v2 SI front panel
(1) 10/100Base-TX auto-sensin
g
Ethernet port (2)
10/100Base-TX Ethernet port LED
(3) 1000Base-X SFP combo port (4) 1000Base-X SFP combo port LED
(5) 1000Base-X SFP port (6)
1000Base-X SFP port LED
(7) Seven-se
g
ment LED (8)
System status LED (PWR)
(9) Port mode LED (Mode) (10) Port LED mode switching button
(11) Console port (12)
1000Base-T Ethernet port LED
(13) 1000Base-T Ethernet port
Figure 8 3600-48 v2 SI rear panel
(1)
A
C-input power receptacle (2)
Groundin
g
screw
