36 Getting Started
Getting Started36

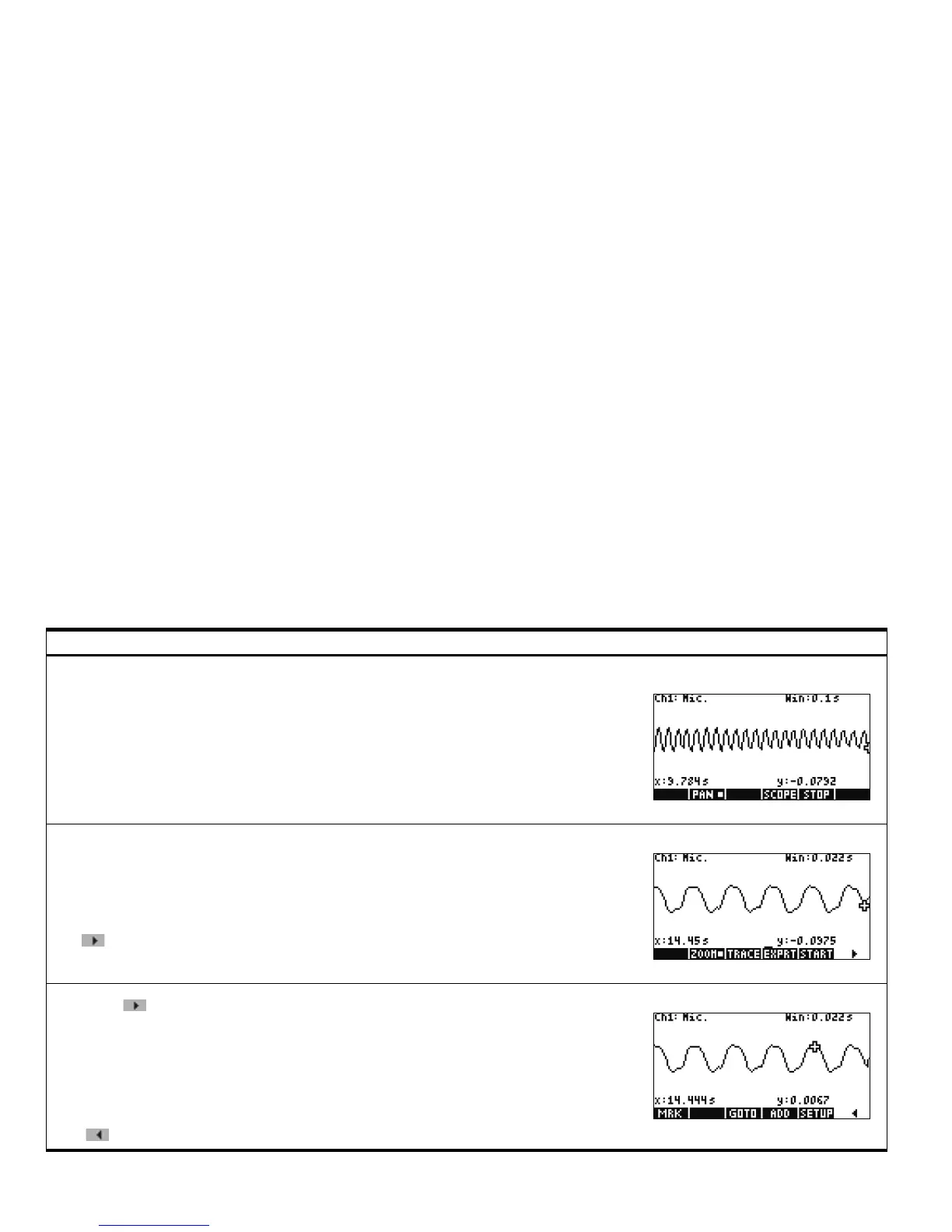

Table 1-8 StreamSmart Aplet Summary
Summary of Functionality View Name and Display
Press PLOT to return to this view at any time. The StreamSmart Plot view displays the
incoming data streams in real time at up to 5,000 samples per second. The top of the
display shows the sensor ID and the width of the window in seconds. The bottom of the
display shows the current tracer coordinates. The menu items are:
• PAN/ZOOM: toggles between using the cursor direction keys for panning (scrolling) or
zooming on the data stream
• SCOPE: toggles oscilloscope mode on and off
• START/STOP: stops and re-starts data streaming
Plot View (during streaming)
Press the STOP menu key to stop data streaming. After data streaming stops, the Plot view
menu changes substantially to allow selection of a final data set.
• PAN/ZOOM: same as above
• TRACE: toggles tracing on and off
• EXPRT: opens the Export Menu (see below)
• : opens page 2 of the menu
Plot View (post streaming)
Press the menu key to enter the 2nd page of the Plot view menu. The menu items are:
• MRK: sets a mark at the current tracer location; further movement of the tracer shows the
delta in both x and y from the mark
• GOTO: jumps to a particular data value
• ADD: works with SETUP to select points of interest to add to the data set one point at a
time
• SETUP: defines how ADD works, where the data goes in the Statistics Aplet, etc.
• : returns to page 1 of the menu
Plot View Page 2 (post streaming)
