HP 525 5/XX User Manual

132
5 Video Controllers

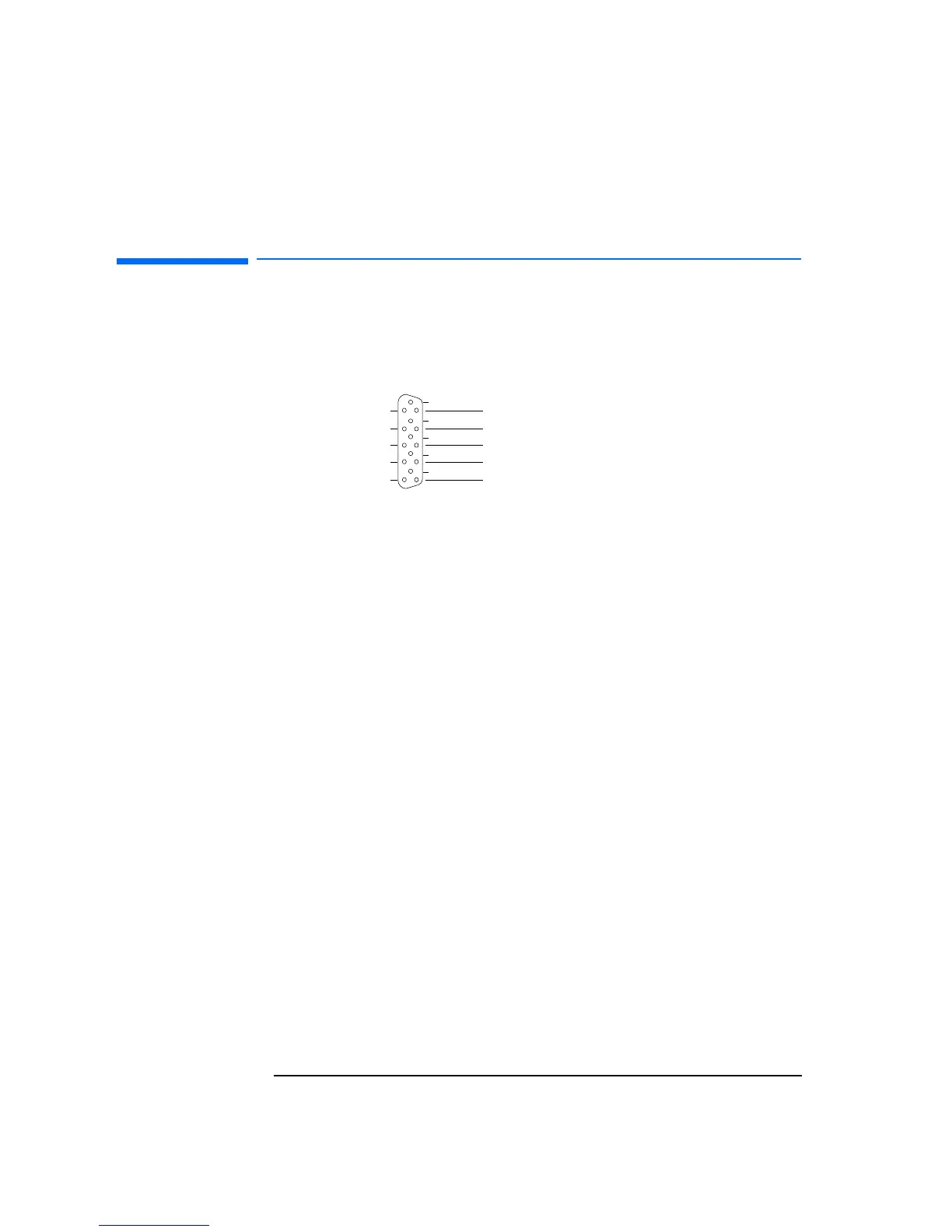

DB15 Connector Pinout
DB15 Connector Pinout
The layout of the pins for the DB15 VGA Connector are the same for the
three video controllers mentioned earlier in this section.
6 - Ground
11 - Not Used
12 - Data from display (DDC1)
13 - H-Sync
14 - V-Sync
15 - Not Used
7 - Ground
8 - Ground
10 - Ground
9 - Not Used
Red -1
Green - 2
Blue - 3
Not Used - 4
Ground - 5
