2 System Board - (SiS Chipset) (Part Number: D4051-63001)
Backplane (D4051-63001)
Minitower Backplane
The HP Vectra 500 Series minitower backplane supports three 16-bit ISA
(Industry Standard Architecture) cards, two 32-bit PCI (Peripheral
Component Interconnect) cards and has one combination slot for an ISA or
PCI card.
The six expansion card slots are arranged as follows:
• Slot 1 - (the innermost) Combination slot that can be used for a
half-length 16-bit ISA card (15 cm / 6 inches) or a 32-bit PCI card.
• Slot 2 - can be used for a 32-bit PCI card.
• Slot 3 - can be used for a 32-bit PCI card.
• Slot 4 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).
• Slot 5 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).
• Slot 6 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).

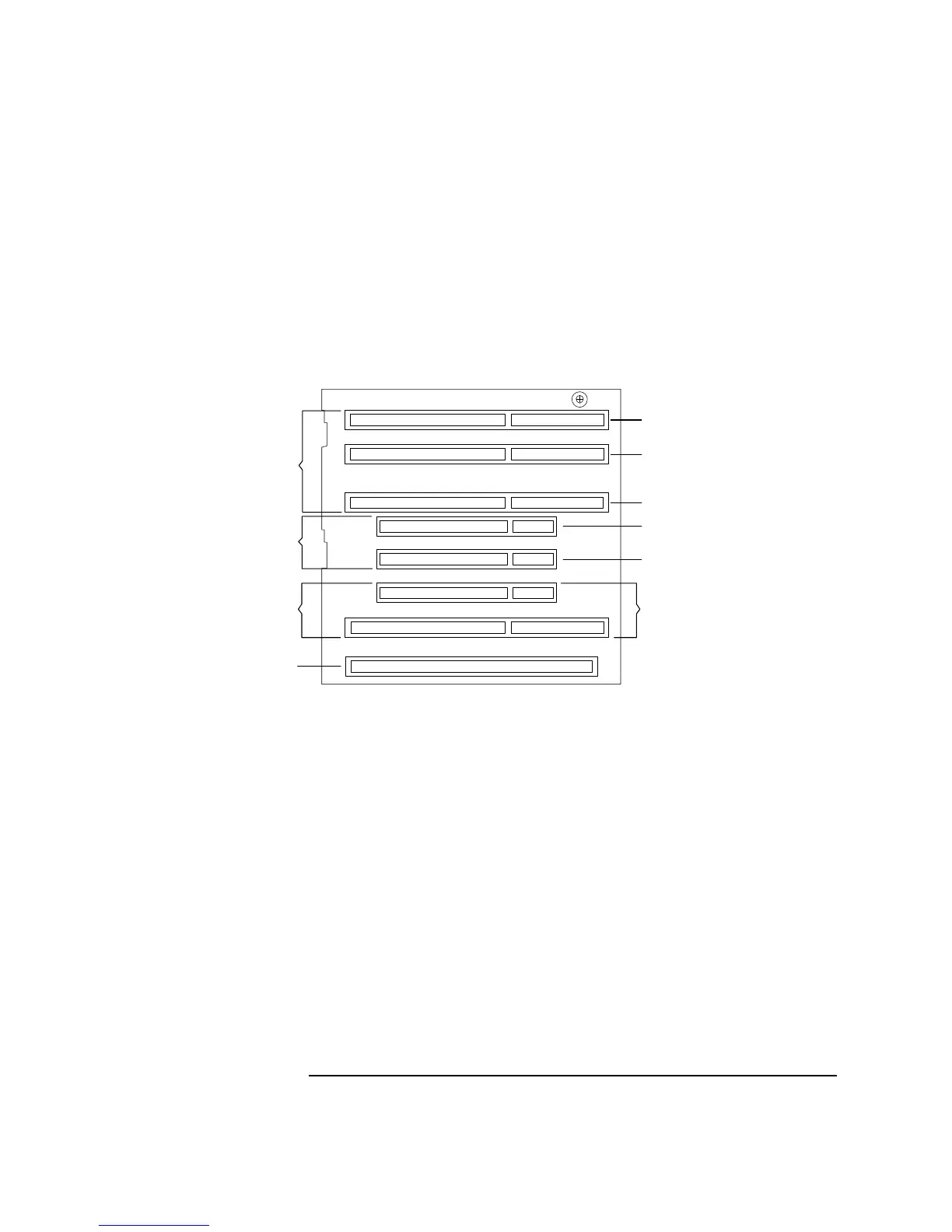

3 x ISA
2 x PCI
1 x ISA/PCI
Combination Slot
System Board
Connector
Slot 3
Slot 2
Slot 1
Slot 4
Slot 5
Slot 6
