41
2 System Board - (SiS Chipset) (Part Number: D4051-63001)
SiS Chipset
Processor Socket (D4051-63001)
The microprocessor is packaged in a pin-grid-array (PGA), which is seated
on the system board in a zero-insertion-force (ZIF) socket.
Memory Sockets (D4051-63001)
There are six main memory module sockets available with the HP Vectra 500
Series minitower and desktop computers. The sockets are arranged in three
banks (A to C), allowing memory installation up to a maximum of 192 MB.

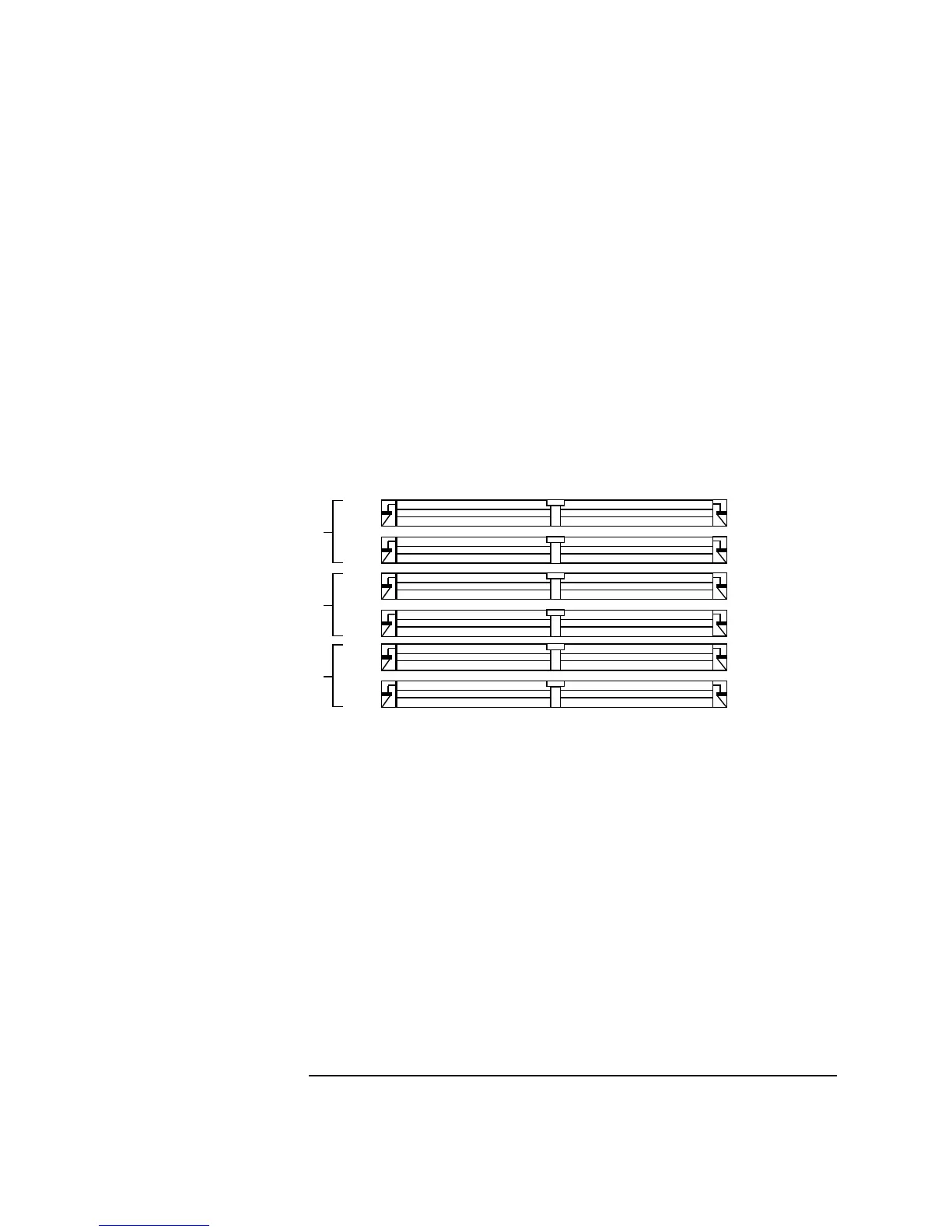

The following illustration shows the physical layout of the memory bank
organization.
J10
SIMM Socket 6 (C2)
J9
SIMM Socket 5 (C1)
Bank C
J5
SIMM Socket 4 (B2)
J4
SIMM Socket 3 (B1)
Bank B
J14
SIMM Socket 2 (A2)
J13
SIMM Socket 1 (A1)
Bank A
