HP 530 Maintenance And Service Guide

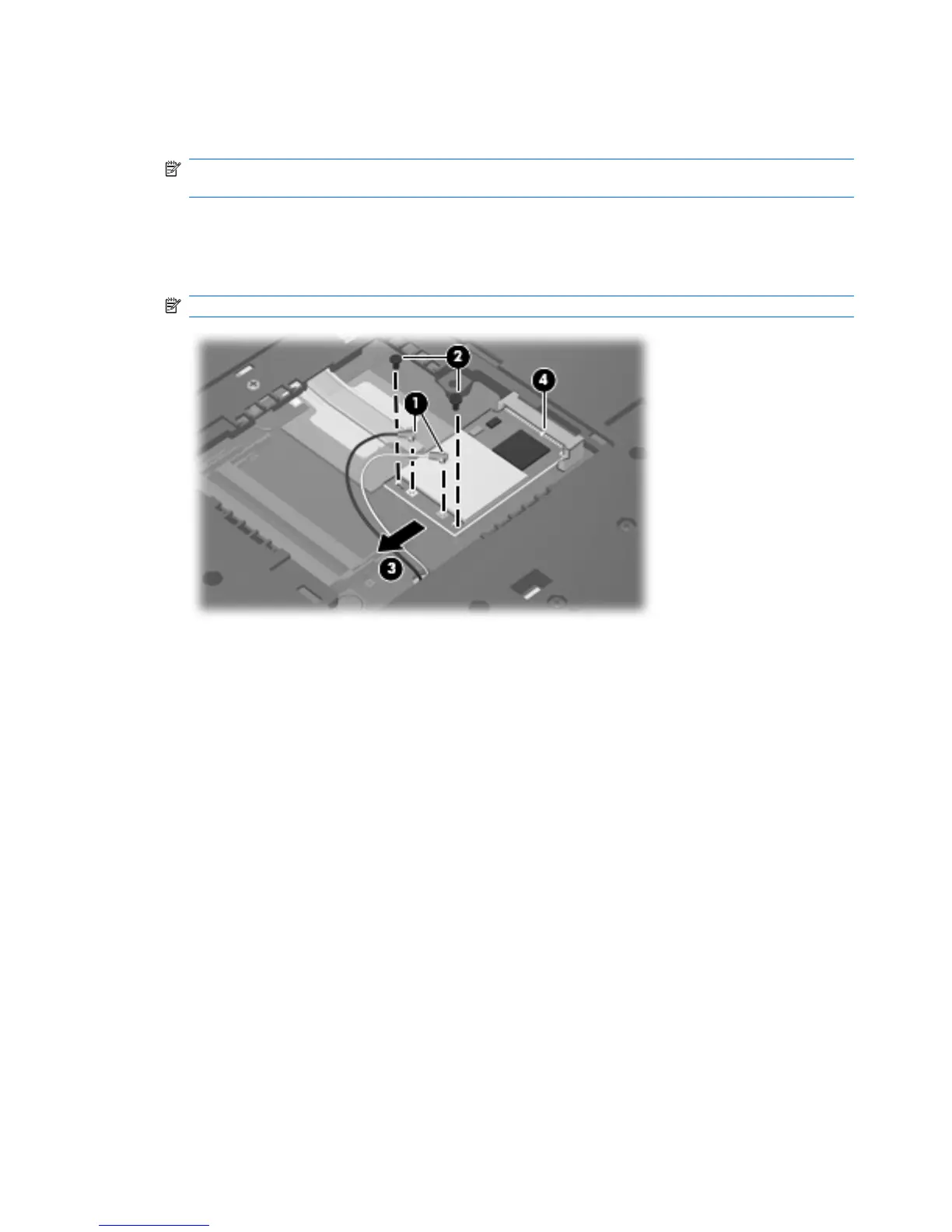

Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
gray WLAN antenna cable is connected to the WLAN module “Aux” terminal.
2. Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the system board.
(The edge of the module opposite the slot rises away from the computer.)
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect installation.
Reverse this procedure to install a WLAN module.
38 Chapter 4 Removal and replacement procedures

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
