HP 530 Maintenance And Service Guide

Base enclosure
Description Spare part number
Base enclosure 441625-001
Rubber Feet Kit 438557-001
Before removing the base enclosure, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 32).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 33)
b.
Memory/WLAN module compartment cover (see
Memory module on page 35)
c.
Optical drive (see
Optical drive on page 39)
d.
Switch cover (see
Switch cover on page 41)
e.
Keyboard (see
Keyboard on page 43)
f.
Display assembly (see
Display assembly on page 47)

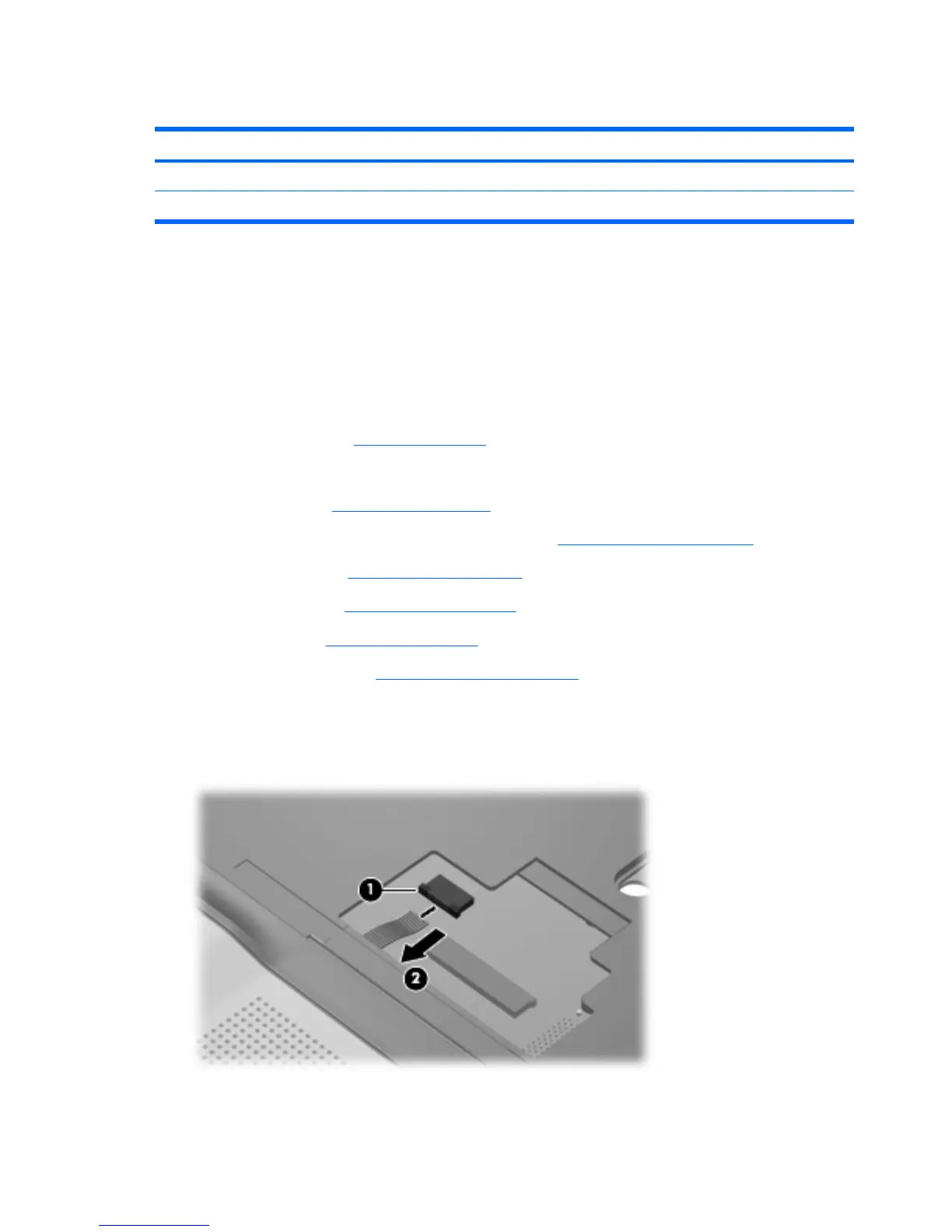

Remove the base enclosure:
1. Release the ZIF connector (1) to which the TouchPad cable is attached, and disconnect the TouchPad
cable (2) from the system board.
2.
Turn the computer upside down, with the front toward you.
52 Chapter 4 Removal and replacement procedures

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
