HP 530 Maintenance And Service Guide

Display assembly
Description Spare part number
15.4-inch, WXGA BrightView display assembly for use only with computer models with WLAN
capability (includes wireless antenna transceivers and cables)
440716-001
15.4-inch, WXGA BrightView display assembly for use only with computer models without WLAN
capability
440715-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 32).
5.
Remove the memory/WLAN module compartment cover (see
Memory module on page 35) and
disconnect the wireless antenna cables from the WLAN module (see
WLAN module on page 37).
6.
Remove the following components:
a.
Switch cover (see
Switch cover on page 41)
b.
Keyboard (see
Keyboard on page 43)
Remove the display assembly:
1.
Close the computer and turn it upside down, with the rear panel toward you.
2.

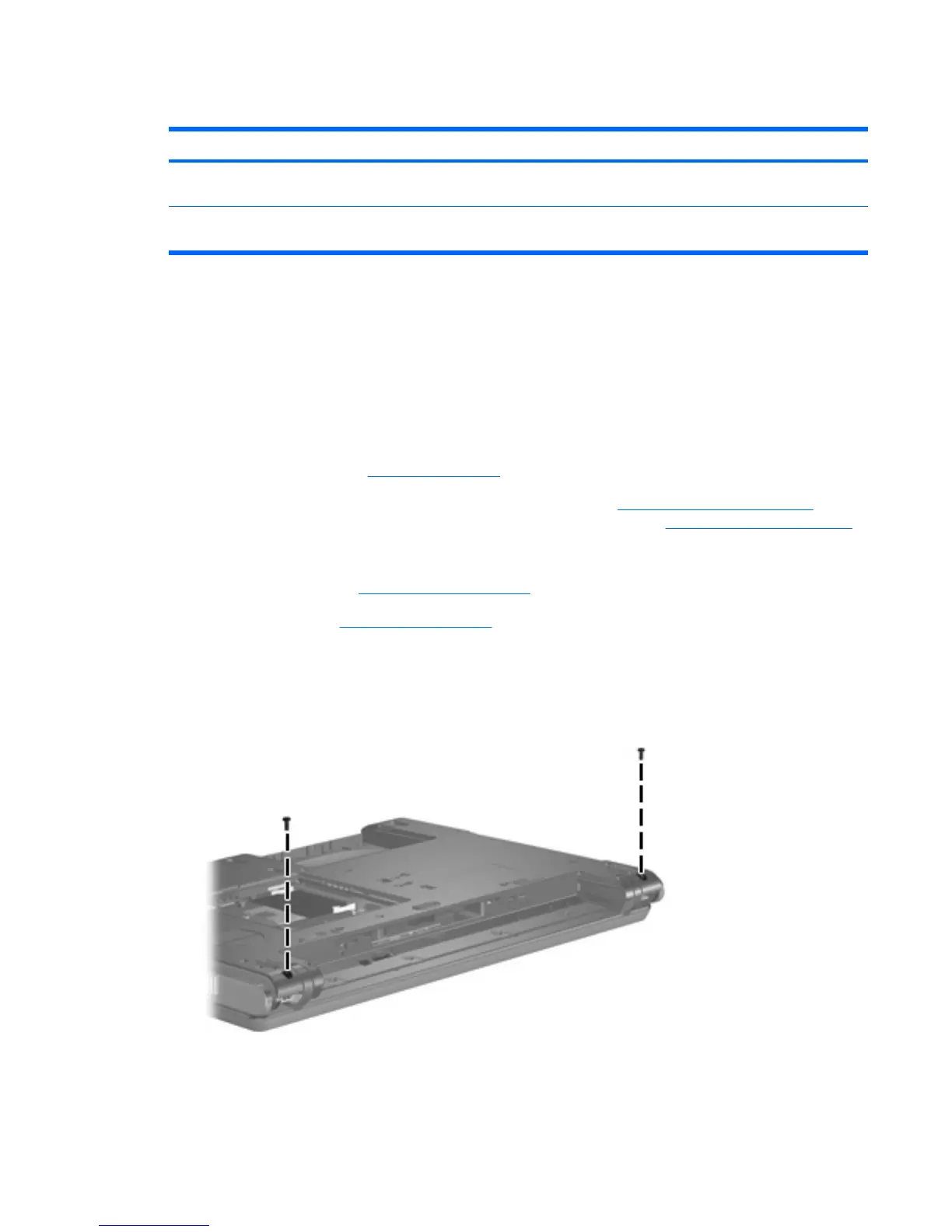

Remove the two Phillips PM2.0×7.0 screws that secure the display assembly to the computer.
3.
Turn the computer display-side up, with the front toward you.
4.
Open the computer until the display assembly is in an upright position.
Component replacement procedures 47

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
