Model 5328A
Operation
Table
3-7.
Arming Status
FUNCTION
FREQ A
PERIOD A
PERIOD AVG
A
T.I. A to B
T.I. AVG A to
B
FREQ C
DVM
EVENTS C, A to B
RATIO B/A
RATIO
C/A
DVM/At
DVM A to Bt
START
START
CLOCKf
ARMING OFF ARMING
ON
Armed by A input
Armed by
B
input
Armed by SAMPLE RATE Armed by
B
input
Armed by SAMPLE RATE
Armed by B input
Armed by SAMPLE RATE Armed by C input
Armed by SAMPLE RATE Armed by C input
Armed by C input Armed by
B
input
Armed by SAMPLE RATE Armed by B input
Armed by SAMPLE RATE Armed by C input
Armed by SAMPLE RATE Armed by C input
Armed by C input Armed by B input
Armed by SAMPLE RATE Armed by B input
Armed by SAMPLE RATE Armed by C input
Measurement controlled by FUNCTION switch
Measurement controlled by FUNCTION switch
t"Phanmm7'
f~ncti~ns
3-60.
Resolution,
N
Switch
3-61.
The RESOLUTION, N switch determinestheamount of time that thecounter's main gate
is
open for a particular measurement when the Main Gate
FF
(see Figure 3-1) determines the gate
time. Depending on the measurement, this time results in a certain measurement resolution
(e.g., frequency measurements),
a
number of intervals averaged (e.g., T.I. AVG measurements),
a scaling factor by which the time base
is
divided (e.g., period measurements), or an integration
time (e.g., DVM measurements). Table 3-2 shows thesetting of the RESOLUTION switch and the
corresponding time the main gate is open.

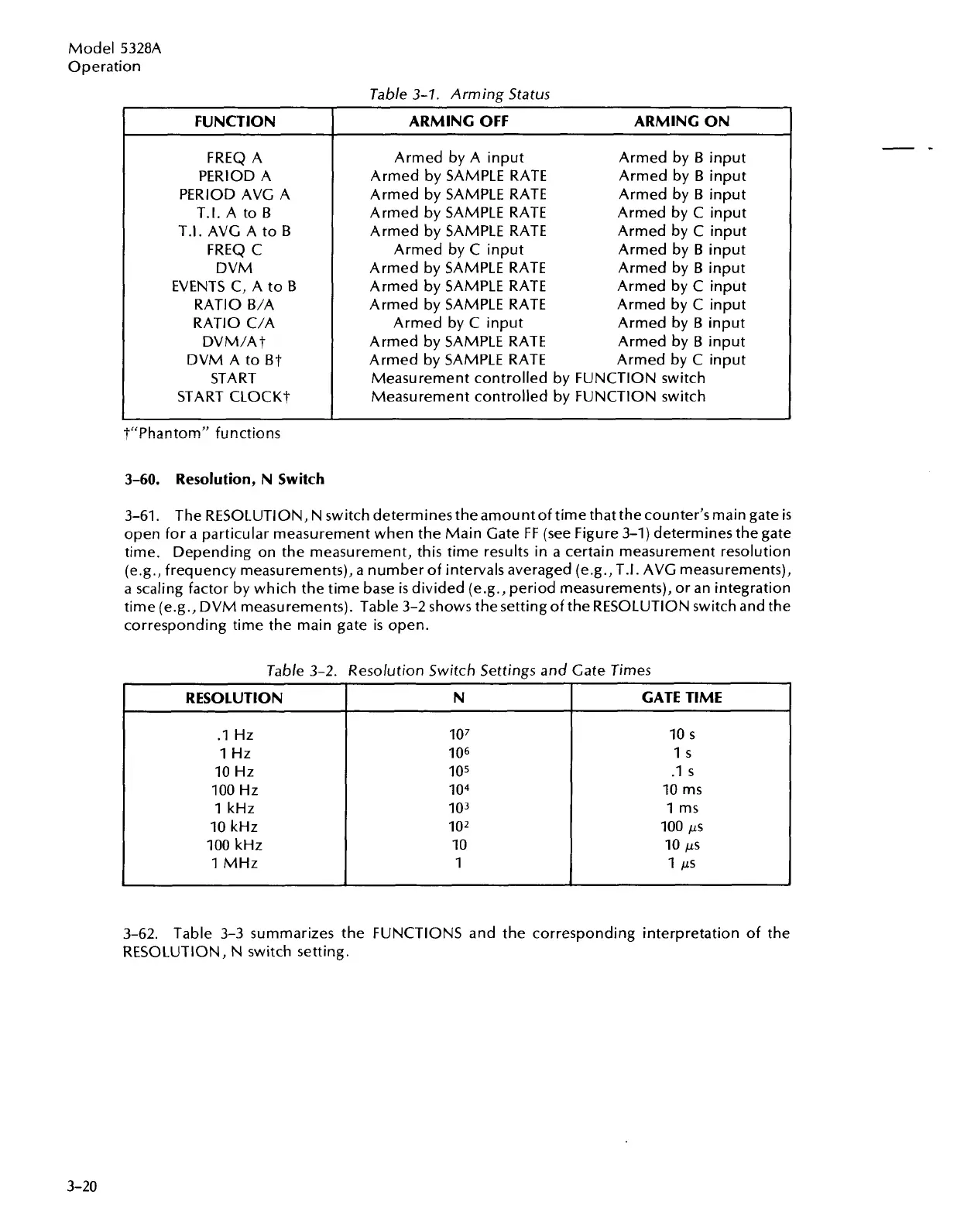

Table
3-2.
Resolution Switch Settings and Gate Times
RESOLUTION
.I
Hz
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
N
I
GATE TIME
3-62.
Table 3-3 summarizes the FUNCTIONS and the corresponding interpretation of the
RESOLUTION, N switch setting.
