HP 5328A User Manual

Model 5328A
Programming

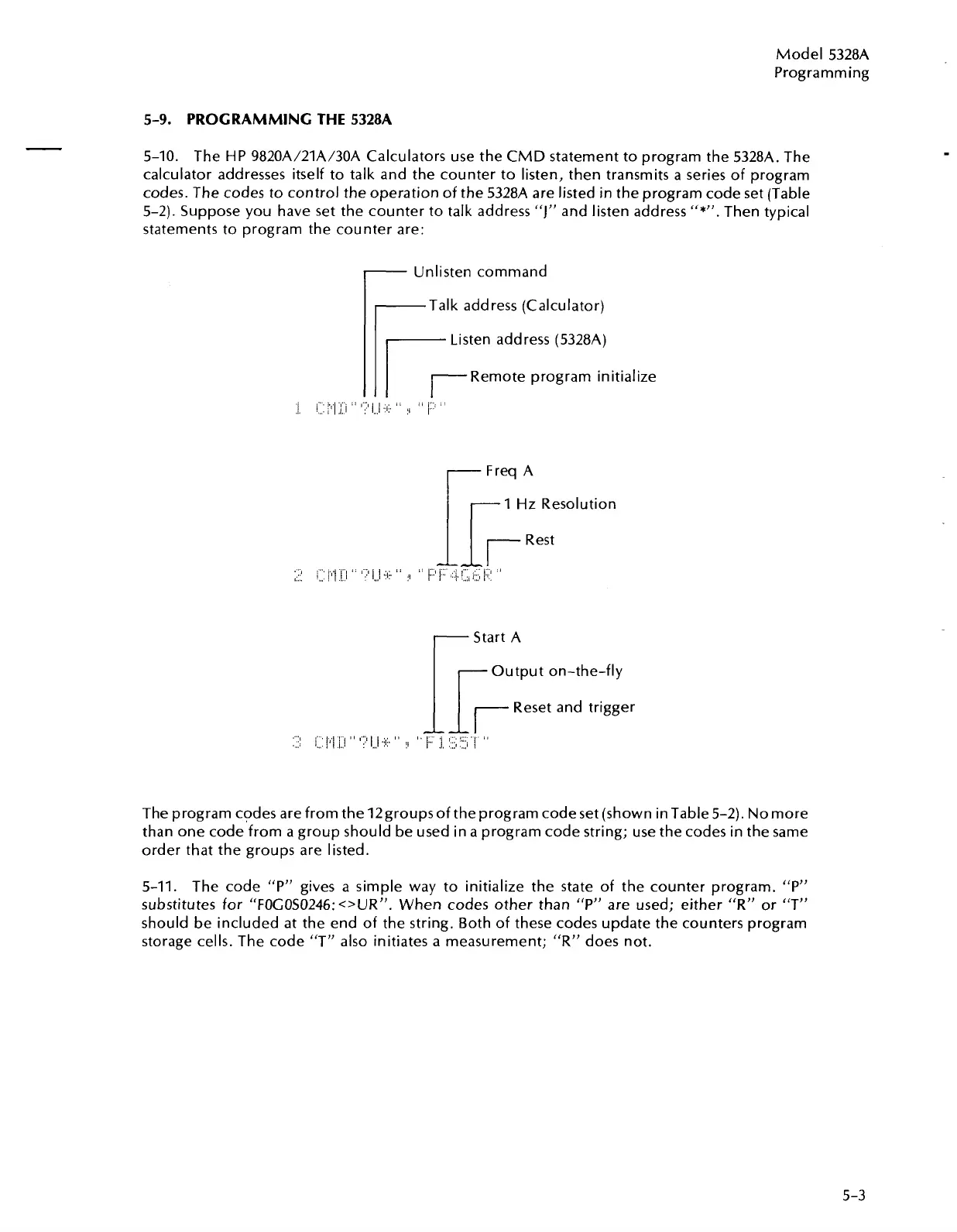

5-9. PROGRAMMING THE 5328A
5-10. The HP 9820A/21A/30A Calculators use the CMD statement to program the 5328A. The
calculator addresses itself to talk and the counter to listen, then transmits a series of program
codes. The codes to control the operation of the
5328A are listed in the program code set (Table
5-2). Suppose you have set the counter to talk address
"I" and listen address "*". Then typical
statements to program the counter are:
Unlisten command
Talk address (Calculator)
Listen address
(5328A)
Remote program initialize
j
>'.. . /./., :i;li 8, ..(
!
.,, .:,
1 ,.I I,,! .;I;. ',
1::
Start A
Output on-the-fly
The program codes are from the 12groupsof the program code set (shown in Table 5-2). No more
than one code from a group should be used in a program code string; use the codes in the same
order that the groups are listed.
5-11. The code "P" gives a simple way to initialize the state of the counter program. "P"
substitutes for "FOGOS0246: <>UR". When codes other than
"P" are used; either "R" or "T"
should be included at the end of the string. Both of these codes update the counters program
storage cells. The code "T" also initiates a measurement; "R" does not.
