HP 7 Pro Series User Manual

13

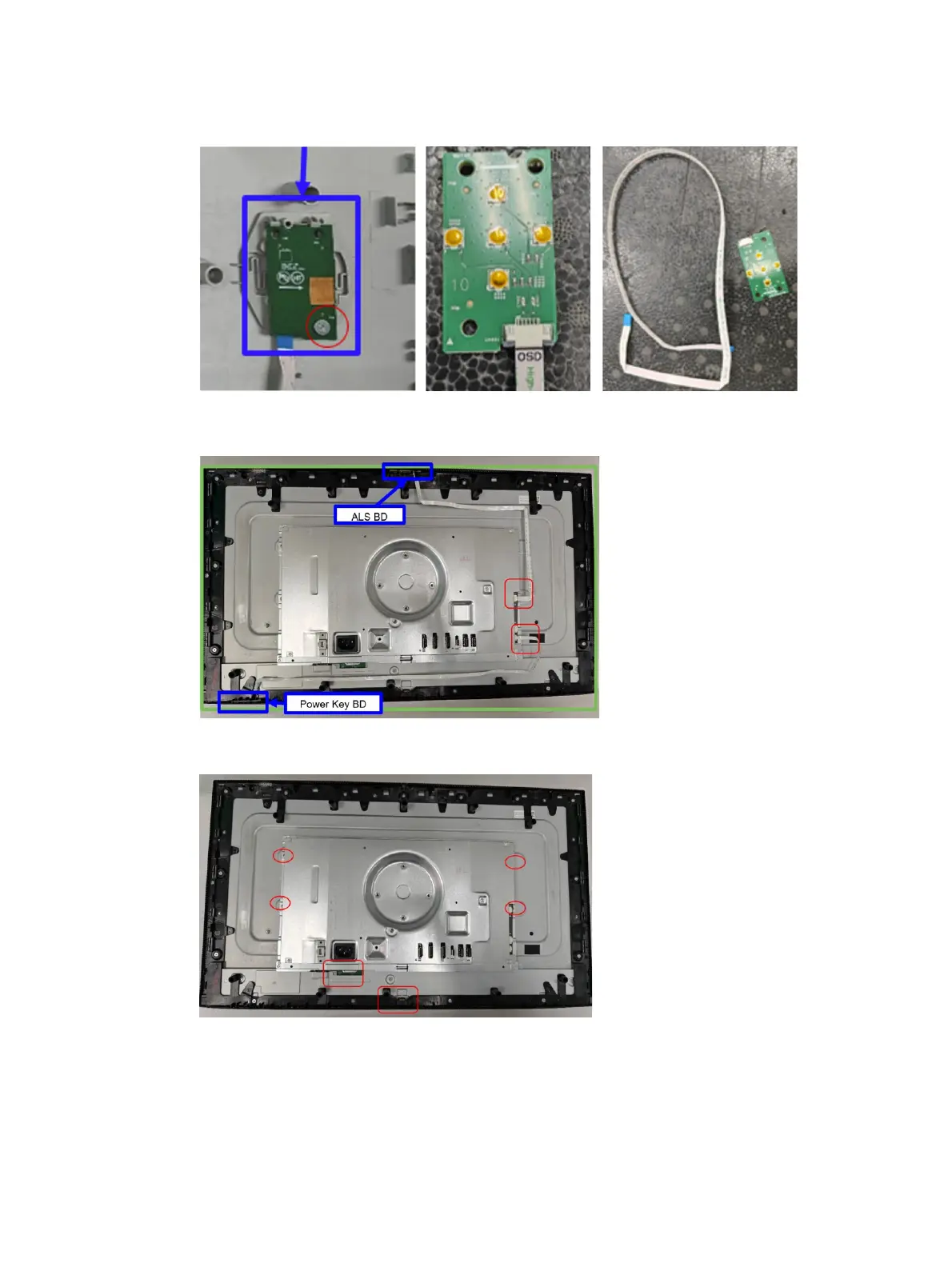

4) Release OSD key board from rear cover: remove 1pcs screw and disconnect the key cable
5) Remove the ALS board and power key board from the middle frame.
6) Remove Bracket Assembly From Display Head: remove all inside cable, then remove the 4pcs screws from
the back bracket.
7) Remove middle frame from the display head by removing 15pcs screws.

HP 7 Pro Series Specifications

General

Brand	HP
Model	7 Pro Series
Category	Monitor
Language	English
