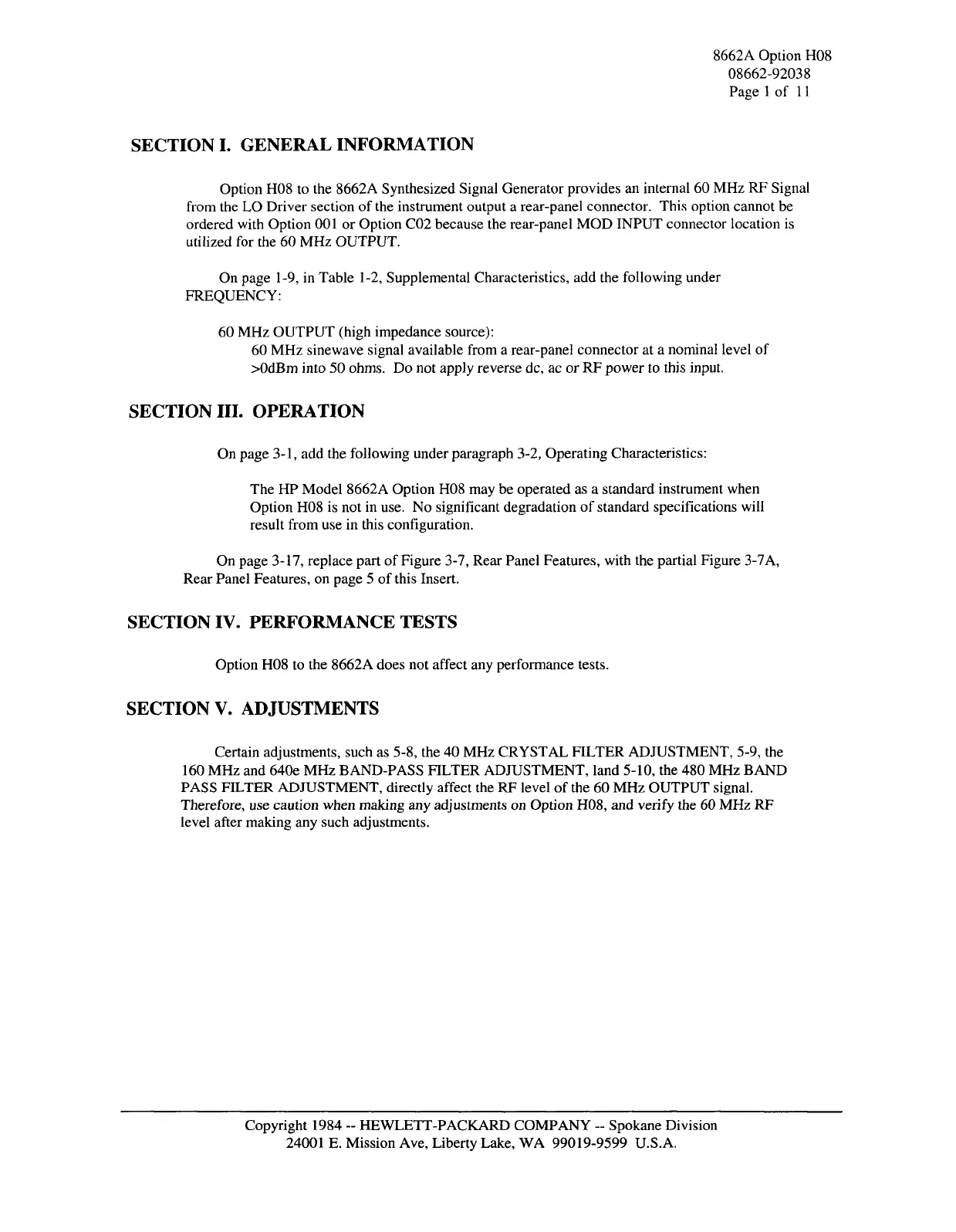

8662A Option H08
08662-92038
Page
1
of 11
SECTION I. GENERAL INFORMATION
Option H08 to the 8662A Synthesized Signal Generator provides an internal 60 MHz RF Signal
from the LO Driver section of the instrument output a rear-panel connector. This option cannot be
ordered with Option 001 or Option C02 because the rear-panel MOD INPUT connector location is
utilized for the 60 MHz OUTPUT.
On page 1-9, in Table 1-2, Supplemental Characteristics, add the following under
FREQUENCY:
60 MHz OUTPUT (high impedance source):
60 MHz sinewave signal available from a rear-panel connector at a nominal level of
>0dBm into 50 ohms. Do not apply reverse dc, ac or RF power to this input.
SECTION III. OPERATION
On page
3-1,
add the following under paragraph 3-2, Operating Characteristics:
The HP Model 8662A Option H08 may be operated as a standard instrument when
Option H08 is not in use. No significant degradation of standard specifications will
result from use in this configuration.
On page 3-17, replace part of Figure 3-7, Rear Panel Features, with the partial Figure 3-7 A,
Rear Panel Features, on page 5 of this Insert.
SECTION IV. PERFORMANCE TESTS
Option H08 to the 8662A does not affect any performance tests.
SECTION V. ADJUSTMENTS
Certain adjustments, such as 5-8, the 40 MHz CRYSTAL FILTER ADJUSTMENT, 5-9, the
160 MHz and 640e MHz BAND-PASS FILTER ADJUSTMENT, land 5-10, the 480 MHz BAND
PASS FILTER ADJUSTMENT, directly affect the RF level of the 60 MHz OUTPUT signal.
Therefore, use caution when making any adjustments on Option H08, and verify the 60 MHz RF
level after making any such adjustments.
Copyright 1984 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
