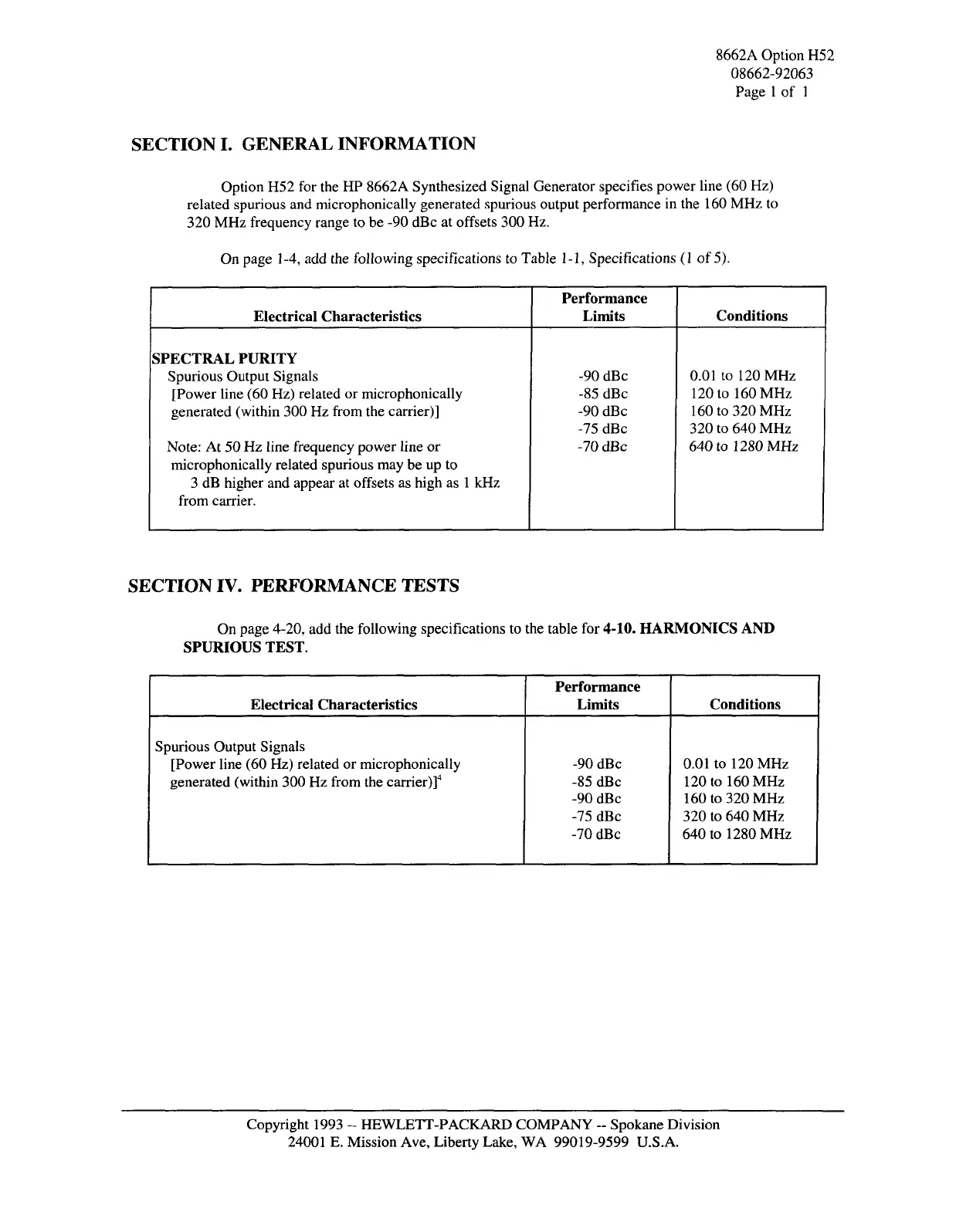

8662A Option H52
08662-92063
Page
1
of 1
SECTION I. GENERAL INFORMATION
Option H52 for the HP 8662A Synthesized Signal Generator specifies power line (60 Hz)
related spurious and microphonically generated spurious output performance in the 160 MHz to
320 MHz frequency range to be -90 dBc at offsets 300 Hz.
On page 1-4, add the following specifications to Table 1-1, Specifications (1 of 5).
Electrical Characteristics
SPECTRAL PURITY
Spurious Output Signals
[Power line (60 Hz) related or microphonically
generated (within 300 Hz from the carrier)]
Note: At 50 Hz line frequency power line or
microphonically related spurious may be up to
3 dB higher and appear at offsets as high as
1
kHz
from carrier.
Performance
Limits
-90 dBc
-85 dBc
-90 dBc
-75 dBc
-70 dBc
Conditions
0.01 to 120 MHz
120 to 160 MHz
160 to 320 MHz
320 to 640 MHz
640 to 1280 MHz
SECTION IV. PERFORMANCE TESTS
On page 4-20, add the following specifications to the table for 4-10. HARMONICS AND
SPURIOUS TEST.
Electrical Characteristics
Spurious Output Signals
[Power line (60 Hz) related or microphonically
generated (within 300 Hz from the carrier)]
4
Performance
Limits
-90 dBc
-85 dBc
-90 dBc
-75 dBc
-70 dBc
Conditions
0.01 to 120 MHz
120 to 160 MHz
160 to 320 MHz
320 to 640 MHz
640 to 1280 MHz
Copyright 1993 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
