8662AOptionH18
08662-92033
Page
1
of 3

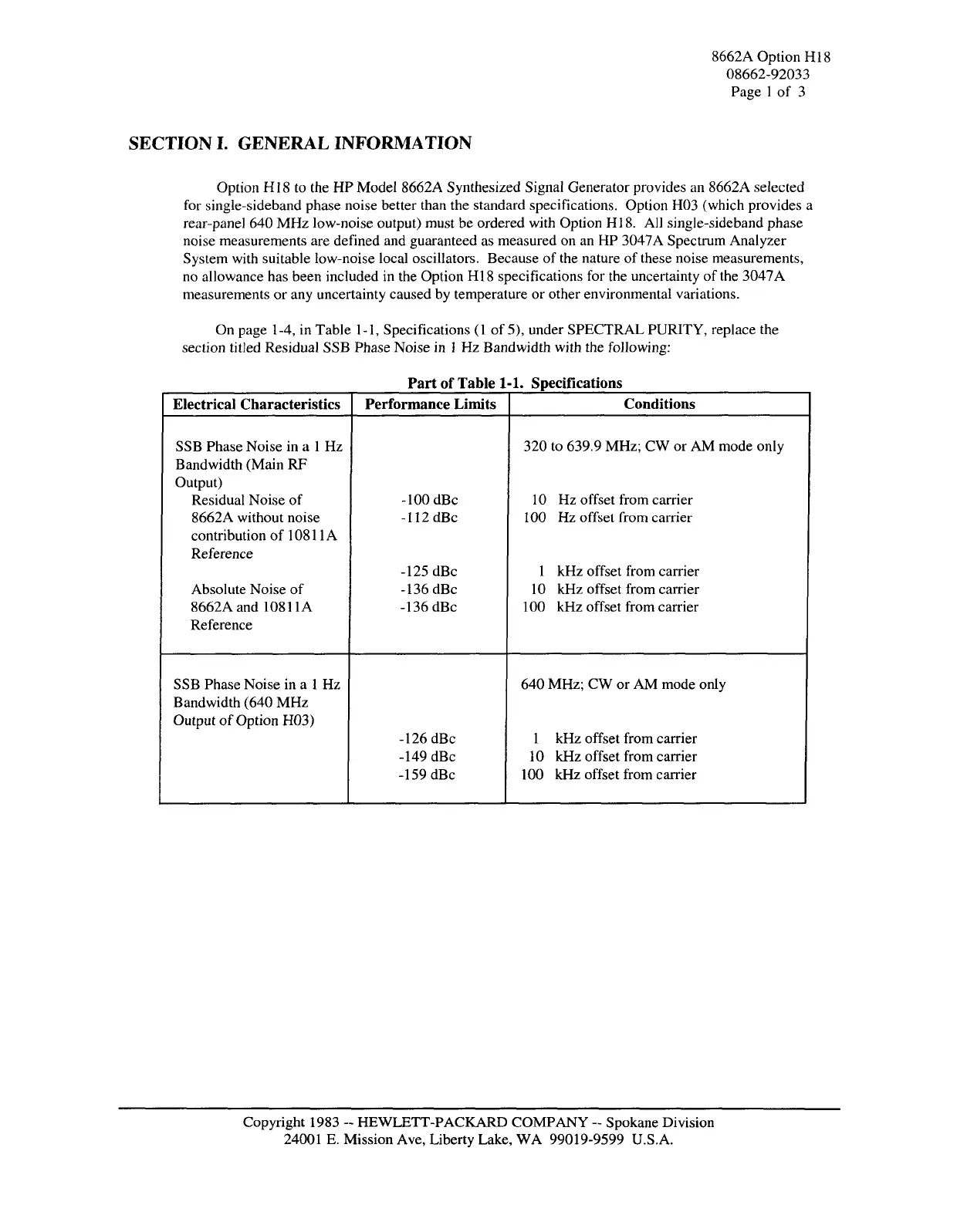

SECTION I. GENERAL INFORMATION
Option HI8 to the HP Model 8662A Synthesized Signal Generator provides an 8662A selected
for single-sideband phase noise better than the standard specifications. Option H03 (which provides a
rear-panel 640 MHz low-noise output) must be ordered with Option HI8. All single-sideband phase
noise measurements are defined and guaranteed as measured on an HP 3047A Spectrum Analyzer
System with suitable low-noise local oscillators. Because of the nature of these noise measurements,
no allowance has been included in the Option HI
8
specifications for the uncertainty of the 3047A
measurements or any uncertainty caused by temperature or other environmental variations.
On page 1-4, in Table 1-1, Specifications (1 of
5),
under SPECTRAL PURITY, replace the
section titled Residual SSB Phase Noise in
1
Hz Bandwidth with the following:
Part of Table 1-1. Specifications
Electrical Characteristics
SSB Phase Noise in a
1
Hz
Bandwidth (Main RF
Output)
Residual Noise of
8662A without noise
contribution of 10811A
Reference
Absolute Noise of
8662Aand 10811A
Reference
SSB Phase Noise in a
1
Hz
Bandwidth (640 MHz
Output of Option H03)
Performance Limits
-100 dBc
-112 dBc
-125 dBc
-136 dBc
-136 dBc
-126 dBc
-149 dBc
-159 dBc
Conditions
320 to 639.9 MHz; CW or AM mode only
10 Hz offset from carrier
100 Hz offset from carrier
1 kHz offset from carrier
10 kHz offset from carrier
100 kHz offset from carrier
640 MHz; CW or AM mode only
1 kHz offset from carrier
10 kHz offset from carrier
100 kHz offset from carrier
Copyright 1983 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
