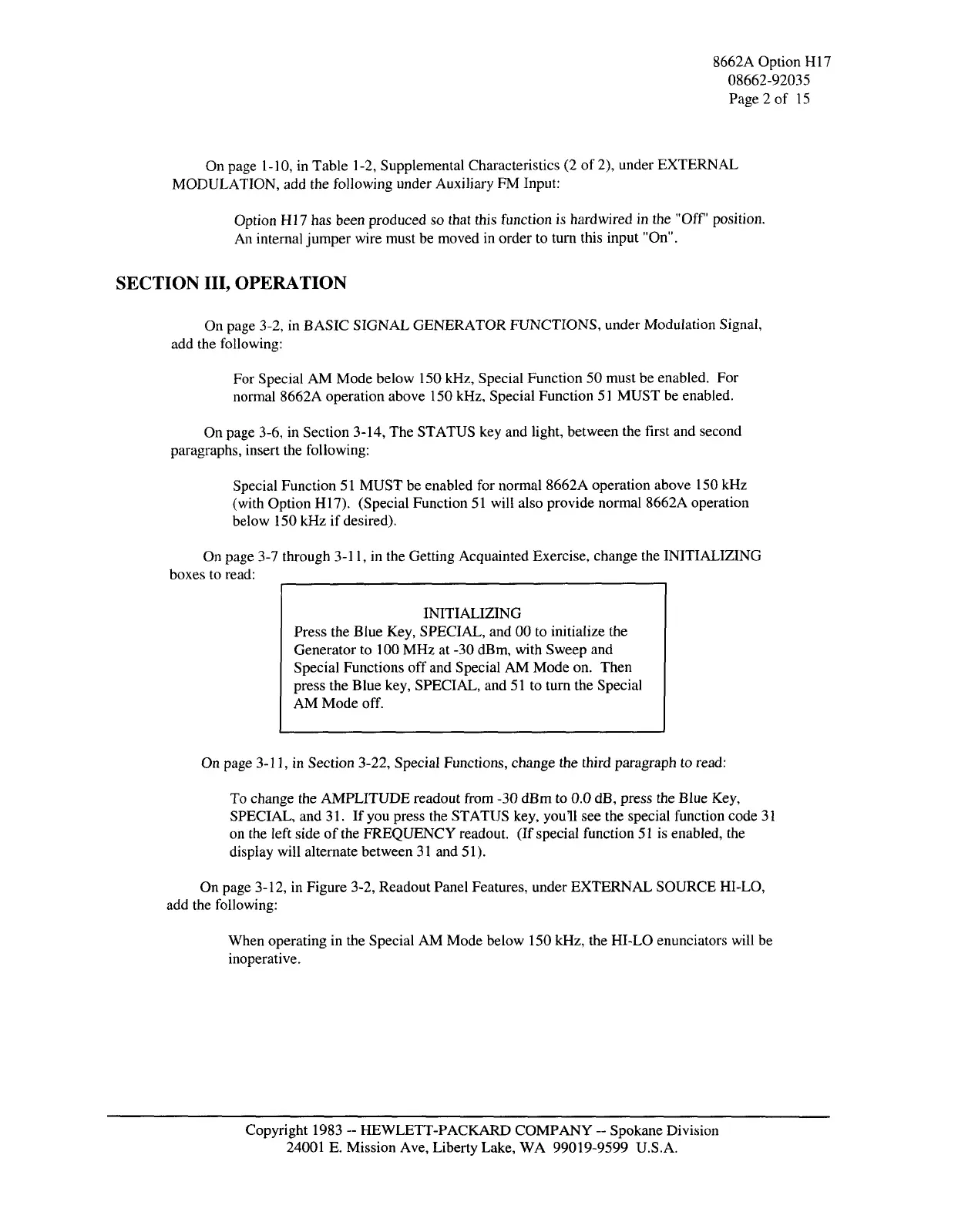

8662AOptionH17
08662-92035
Page 2 of 15
On page 1-10, in Table 1-2, Supplemental Characteristics (2 of
2),
under EXTERNAL
MODULATION, add the following under Auxiliary FM Input:
Option H17 has been produced so that this function is hardwired in the "Off position.
An internal jumper wire must be moved in order to turn this input "On".
SECTION III, OPERATION
On page 3-2, in BASIC SIGNAL GENERATOR FUNCTIONS, under Modulation Signal,
add the following:
For Special AM Mode below 150 kHz, Special Function 50 must be enabled. For
normal 8662A operation above 150 kHz, Special Function 51 MUST be enabled.
On page 3-6, in Section 3-14, The STATUS key and light, between the first and second
paragraphs, insert the following:
Special Function 51 MUST be enabled for normal 8662A operation above 150 kHz
(with Option H17). (Special Function
51
will also provide normal 8662A operation
below 150 kHz if desired).
On page 3-7 through 3-11, in the Getting Acquainted Exercise, change the INITIALIZING
boxes to read:
INITIALIZING
Press the Blue Key, SPECIAL, and 00 to initialize the
Generator to 100 MHz at -30 dBm, with Sweep and
Special Functions off and Special AM Mode on. Then
press the Blue key, SPECIAL, and 51 to turn the Special
AM Mode off.
On page 3-11, in Section 3-22, Special Functions, change the third paragraph to read:
To change the AMPLITUDE readout from -30 dBm to 0.0 dB, press the Blue Key,
SPECIAL, and
31.
If you press the STATUS key, you'll see the special function code 31
on the left side of the FREQUENCY readout. (If special function
51
is enabled, the
display will alternate between
31
and 51).
On page 3-12, in Figure 3-2, Readout Panel Features, under EXTERNAL SOURCE HI-LO,
add the following:
When operating in the Special AM Mode below 150 kHz, the HI-LO enunciators will be
inoperative.
Copyright 1983 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
