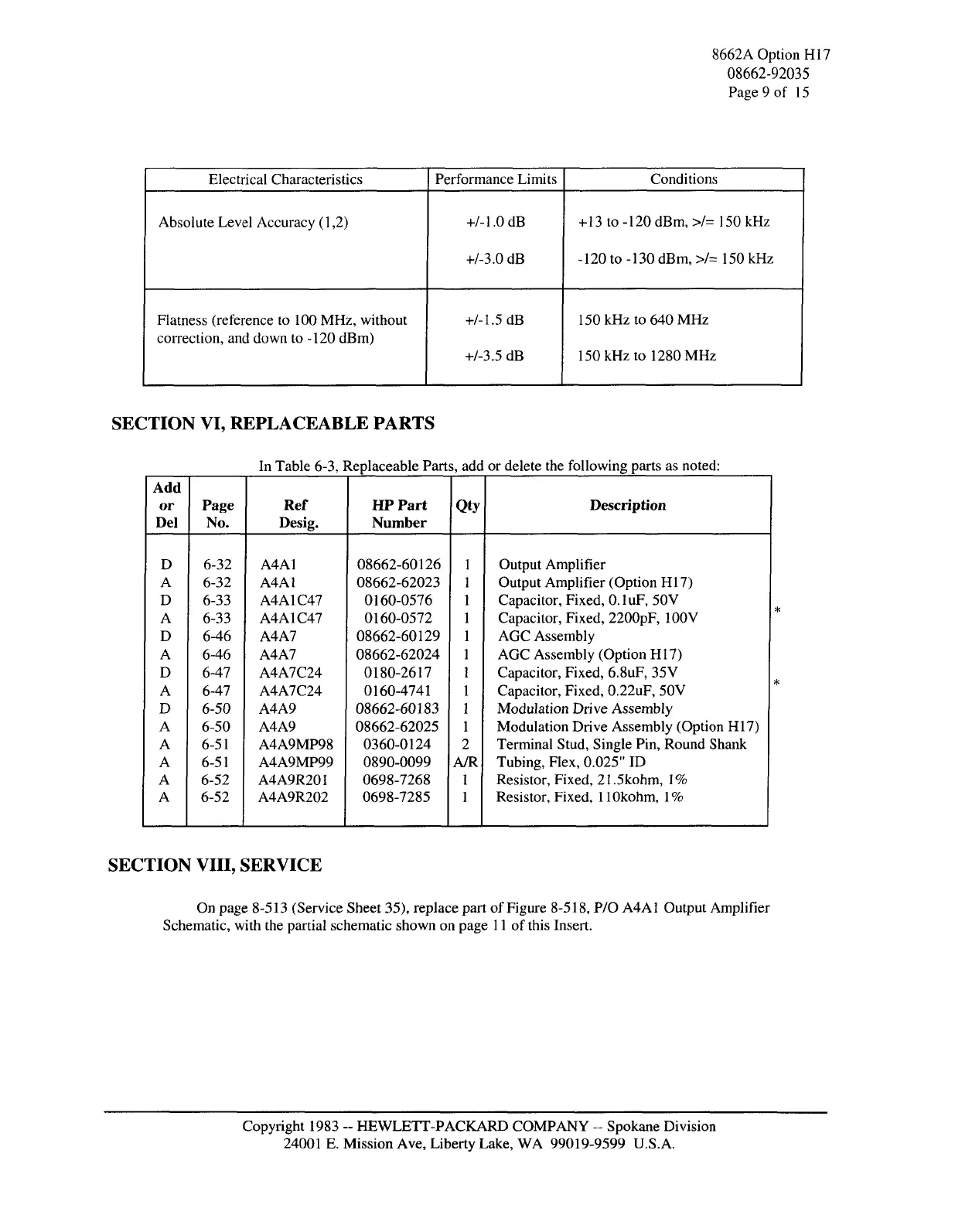

HP 8662A Service Manual

8662AOptionH17
08662-92035
Page 9 of 15
Electrical Characteristics
Absolute Level Accuracy (1,2)
Flatness (reference to 100 MHz, without
correction, and down to -120 dBm)
Performance Limits
+/-1.0dB
+/-3.0 dB
+/-1.5dB
+/-3.5 dB
Conditions
+ 13 to -120 dBm, >/= 150 kHz
-120 to -130 dBm, >/= 150 kHz
150 kHz to 640 MHz
150 kHz to 1280 MHz
SECTION VI, REPLACEABLE PARTS
In Table 6-3, Replaceable Parts, add or delete the following parts as noted:
Add
or
Del
D
A
D
A
D
A
D
A
D
A
A
A
A
A
Page
No.
6-32
6-32
6-33
6-33
6-46
6-46
6-47
6-47
6-50
6-50
6-51
6-51
6-52
6-52
Ref
Desig.
A4A1
A4A1
A4A1C47
A4A1C47
A4A7
A4A7
A4A7C24
A4A7C24
A4A9
A4A9
A4A9MP98
A4A9MP99
A4A9R201
A4A9R202
HP Part
Number
08662-60126
08662-62023
0160-0576
0160-0572
08662-60129
08662-62024
0180-2617
0160-4741
08662-60183
08662-62025
0360-0124
0890-0099
0698-7268
0698-7285
Qty
1
1
1
1
1
1
1
1
1
1
2
A/R
1
1
Description
Output Amplifier
Output Amplifier (Option HI7)
Capacitor, Fixed, 0.1 uF, 50V
Capacitor, Fixed, 2200pF, 100V
AGC Assembly
AGC Assembly (Option HI7)
Capacitor, Fixed, 6.8uF, 35V
Capacitor, Fixed, 0.22uF, 50V
Modulation Drive Assembly
Modulation Drive Assembly (Option H17)
Terminal Stud, Single Pin, Round Shank
Tubing, Flex, 0.025" ID
Resistor, Fixed, 21.5kohm, 1%
Resistor, Fixed, HOkohm, 1%
SECTION VIII, SERVICE
On page 8-513 (Service Sheet 35), replace part of Figure 8-518, P/O A4A1 Output Amplifier
Schematic, with the partial schematic shown on page 11 of this Insert.
