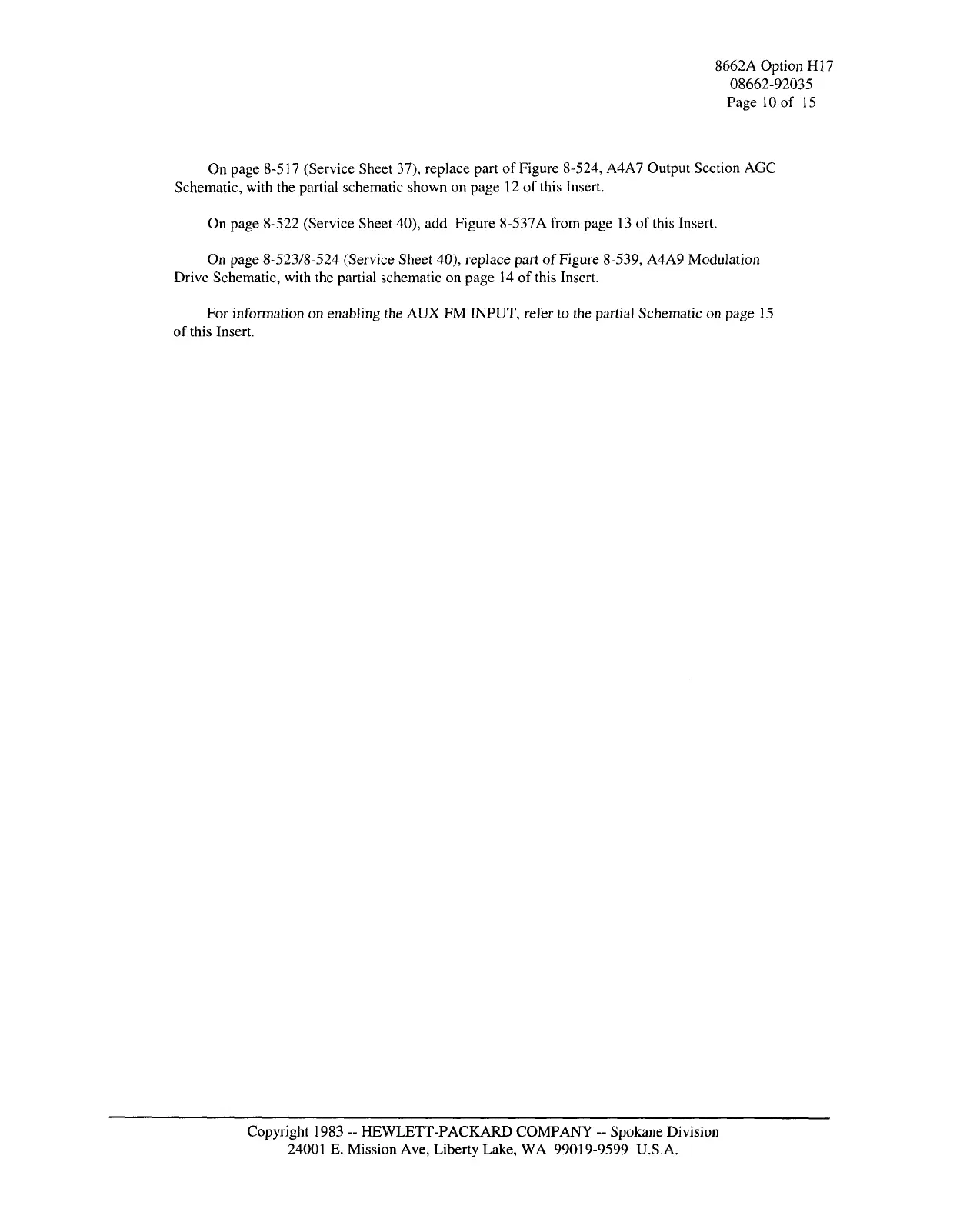

8662AOptionH17
08662-92035
Page 10 of 15
On page 8-517 (Service Sheet 37), replace part of Figure 8-524, A4A7 Output Section AGC
Schematic, with the partial schematic shown on page 12 of this Insert.
On page
8-522
(Service Sheet 40), add Figure
8-537
A from page 13 of this Insert.
On page 8-523/8-524 (Service Sheet 40), replace part of Figure 8-539, A4A9 Modulation
Drive Schematic, with the partial schematic on page 14 of this Insert.
For information on enabling the AUX FM INPUT, refer to the partial Schematic on page 15
of this Insert.
Copyright 1983 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
