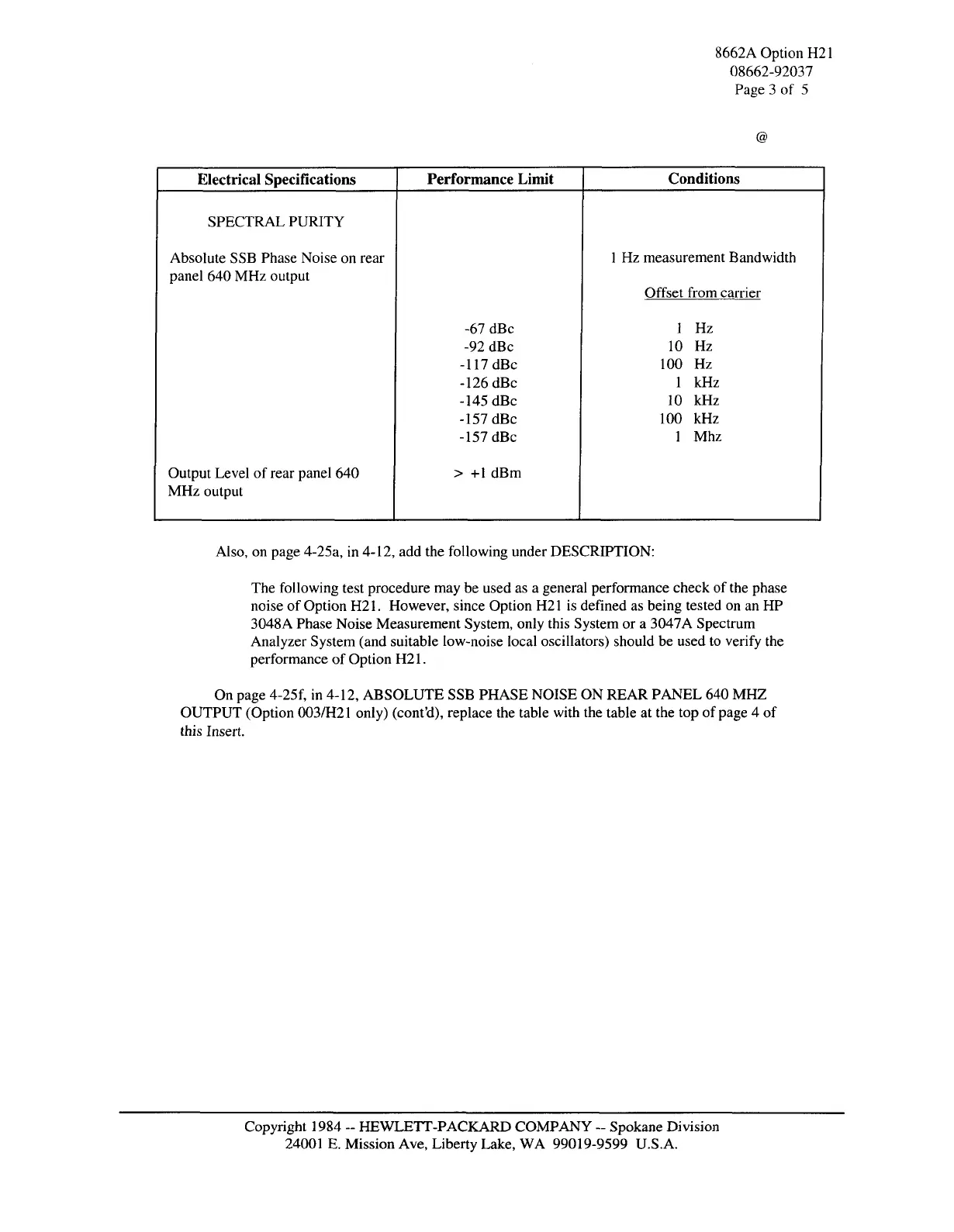

HP 8662A Service Manual

8662A Option H21
08662-92037
Page 3 of 5
@
Electrical Specifications
SPECTRAL PURITY
Absolute SSB Phase Noise on rear
panel 640 MHz output
Output Level of rear panel 640
MHz output
Performance Limit
-67 dBc
-92 dBc
-117 dBc
-126 dBc
-145 dBc
-157 dBc
-157 dBc
> +1 dBm
Conditions
1 Hz measurement Bandwidth
Offset from carrier
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 Mhz
Also, on page 4-25a, in 4-12, add the following under DESCRIPTION:
The following test procedure may be used as a general performance check of the phase
noise of Option H21. However, since Option H21 is defined as being tested on an HP
3048A Phase Noise Measurement System, only this System or a 3047A Spectrum
Analyzer System (and suitable low-noise local oscillators) should be used to verify the
performance of Option H21.
On page 4-25f, in 4-12, ABSOLUTE SSB PHASE NOISE ON REAR PANEL 640 MHZ
OUTPUT (Option 003/H21 only) (cont'd), replace the table with the table at the top of page 4 of
this Insert.
Copyright 1984 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
