8662A Option H17
08662-92035
Page
1
of 15

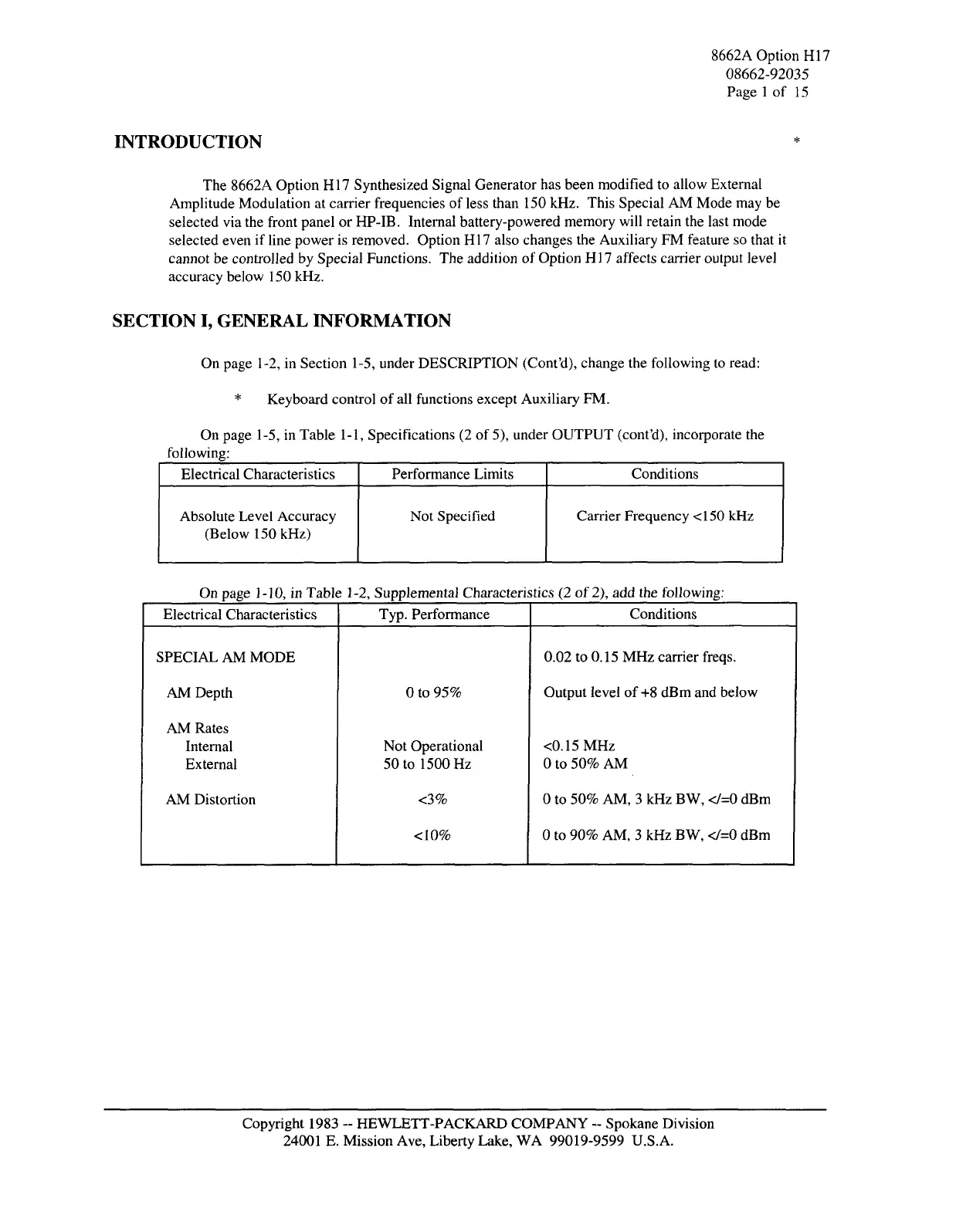

INTRODUCTION
The 8662A Option H17 Synthesized Signal Generator has been modified to allow External
Amplitude Modulation at carrier frequencies of less than 150 kHz. This Special AM Mode may be
selected via the front panel or HP-IB. Internal battery-powered memory will retain the last mode
selected even if line power is removed. Option HI7 also changes the Auxiliary FM feature so that it
cannot be controlled by Special Functions. The addition of Option H17 affects carrier output level
accuracy below 150 kHz.
SECTION I, GENERAL INFORMATION
On page 1-2, in Section 1-5, under DESCRIPTION (Cont'd), change the following to read:
* Keyboard control of all functions except Auxiliary FM.
On page 1-5, in Table 1-1, Specifications (2 of
5),
under OUTPUT (cont'd), incorporate the
following:
Electrical Characteristics
Absolute Level Accuracy
(Below 150 kHz)
Performance Limits
Not Specified
Conditions
Carrier Frequency <150 kHz
On page 1-10, in Table 1-2, Supplemental Characteristics (2 of
2),
add the following:
Electrical Characteristics
SPECIAL AM MODE
AM Depth
AM Rates
Internal
External
AM Distortion
Typ.
Performance
0 to 95%
Not Operational
50 to 1500 Hz
<3%
<10%
Conditions
0.02 to 0.15 MHz carrier freqs.
Output level of
+8
dBm and below
<0.15MHz
0 to 50% AM
0 to 50% AM, 3 kHz BW, </=0 dBm
0 to 90% AM, 3 kHz BW, </=0 dBm
Copyright 1983 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
