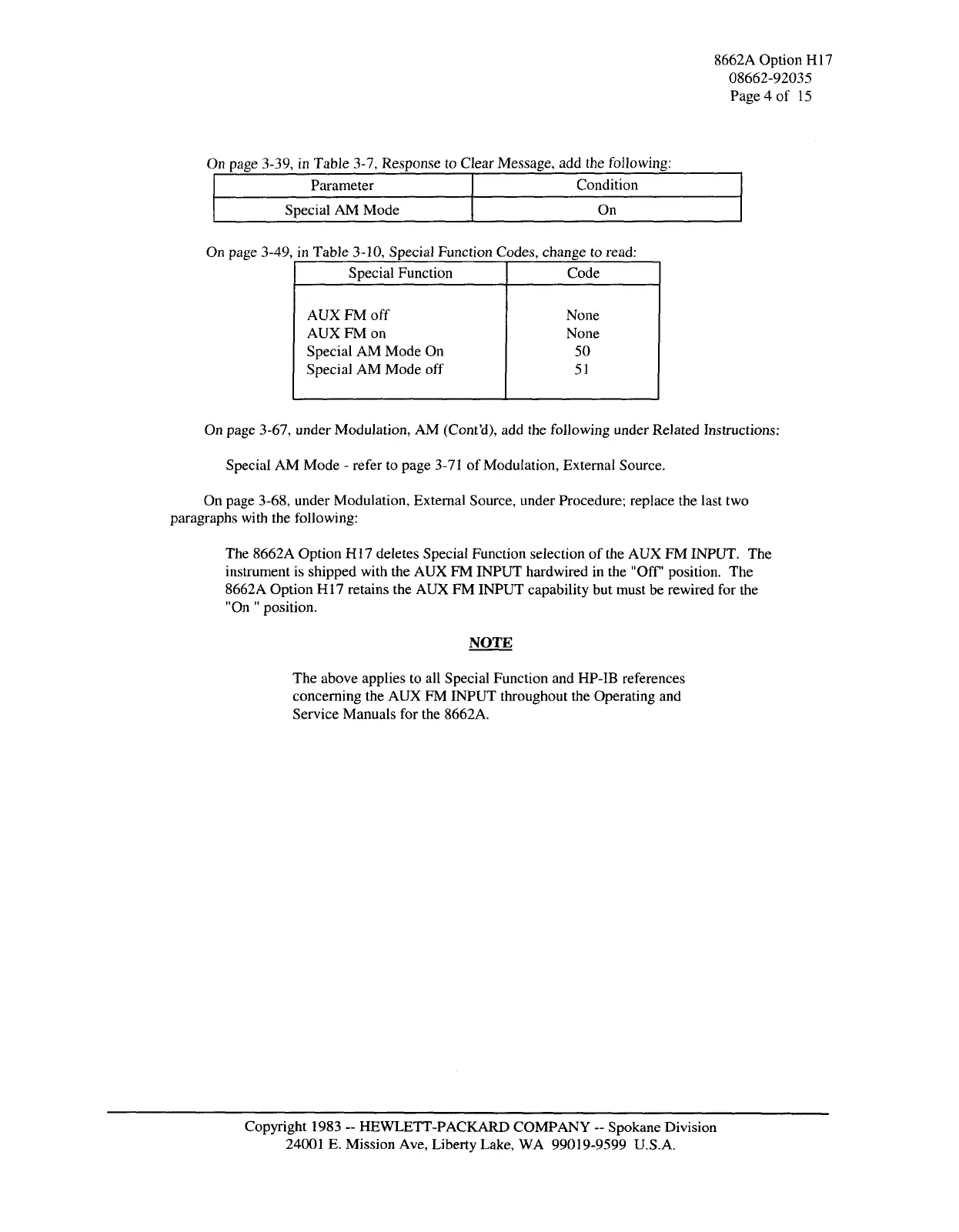

8662AOptionH17
08662-92035
Page 4 of 15
On page 3-39, in Table 3-7, Response to Clear Message, add the following:
Parameter
Special AM Mode
Condition
On
On page 3-49, in Table 3-10, Special Function Codes, change to read:
Special Function
AUX FM off
AUX FM on
Special AM Mode On
Special AM Mode off
Code
None
None
50
51
On page 3-67, under Modulation, AM (Cont'd), add the following under Related Instructions:
Special AM Mode - refer to page 3-71 of Modulation, External Source.
On page 3-68, under Modulation, External Source, under Procedure; replace the last two
paragraphs with the following:
The 8662A Option HI7 deletes Special Function selection of the AUX FM INPUT. The
instrument is shipped with the AUX FM INPUT hardwired in the "Off position. The
8662A Option HI7 retains the AUX FM INPUT capability but must be rewired for the
"On " position.
NOTE
The above applies to all Special Function and HP-IB references
concerning the AUX FM INPUT throughout the Operating and
Service Manuals for the 8662A.
Copyright 1983 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
