HP 8662A Service Manual

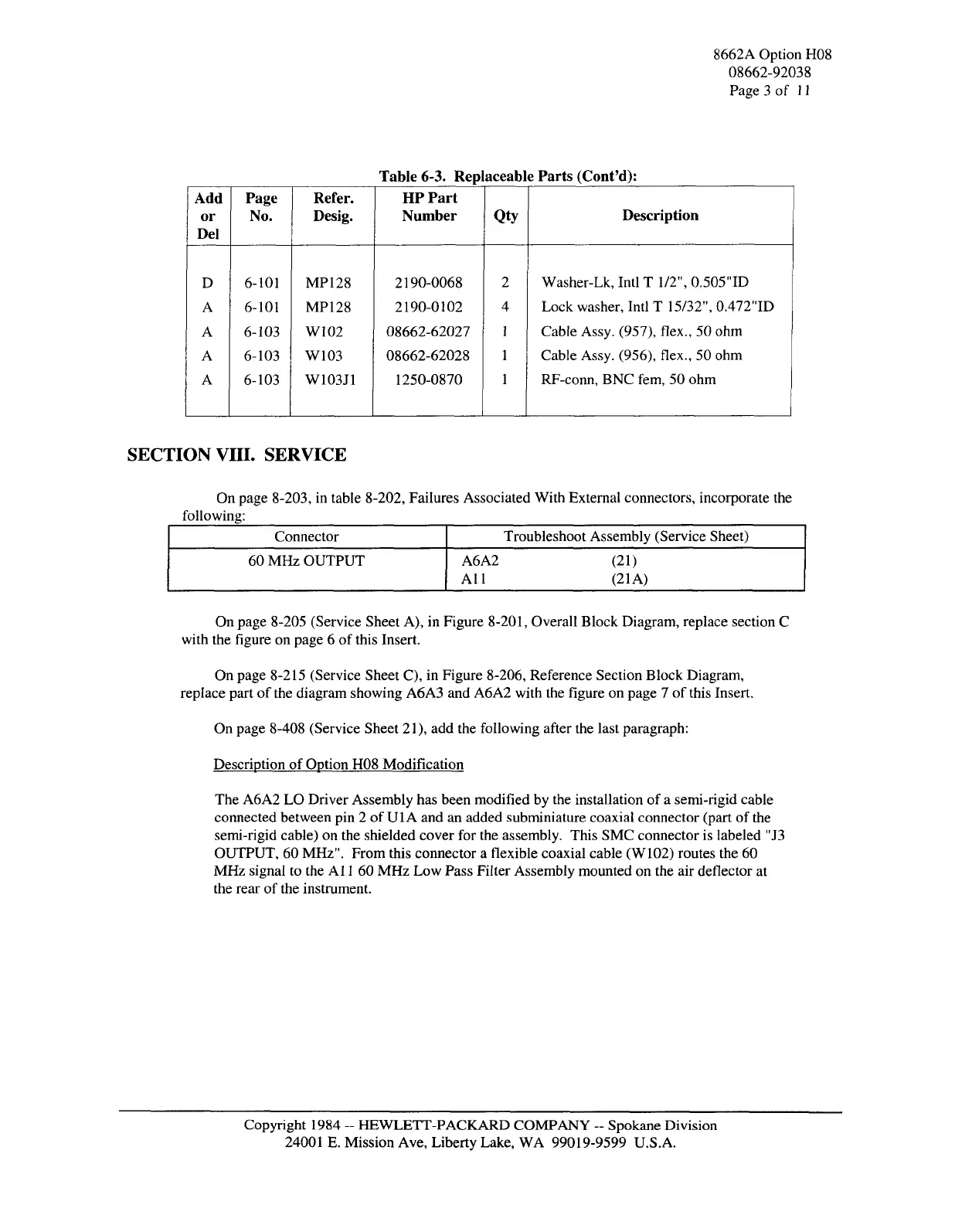

8662A Option H08
08662-92038
Page 3 of 11
Table 6-3. Replaceable Parts (Cont'd):
Add
or
Del
D
A
A
A
A
Page
No.
6-101
6-101
6-103
6-103
6-103
Refer.
Desig.
MP128
MP128
W102
W103
W103J1
HP Part
Number
2190-0068
2190-0102
08662-62027
08662-62028
1250-0870
Qty
2
4
1
1
1
Description
Washer-Lk, Intl T 1/2", 0.505"ID
Lock washer, Intl T 15/32", 0.472"ID
Cable Assy. (957), flex., 50 ohm
Cable Assy. (956), flex., 50 ohm
RF-conn, BNC fern, 50 ohm
SECTION VIII. SERVICE
On page 8-203, in table 8-202, Failures Associated With External connectors, incorporate the
following:
Connector
60 MHz OUTPUT
Troubleshoot Assembly (Service Sheet)
A6A2 (21)
All (21 A)
On page 8-205 (Service Sheet A), in Figure 8-201, Overall Block Diagram, replace section C
with the figure on page 6 of this Insert.
On page 8-215 (Service Sheet C), in Figure 8-206, Reference Section Block Diagram,
replace part of the diagram showing A6A3 and A6A2 with the figure on page 7 of this Insert.
On page 8-408 (Service Sheet 21), add the following after the last paragraph:
Description of Option H08 Modification
The A6A2 LO Driver Assembly has been modified by the installation of a semi-rigid cable
connected between pin 2 of Ul A and an added subminiature coaxial connector (part of the
semi-rigid cable) on the shielded cover for the assembly. This SMC connector is labeled "J3
OUTPUT, 60 MHz". From this connector a flexible coaxial cable (W102) routes the 60
MHz signal to the Al 1 60 MHz Low Pass Filter Assembly mounted on the air deflector at
the rear of the instrument.
Copyright 1984 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
