HP 8662A - Page 88

8662A Option H40
08662-92045
Page 3 of 5

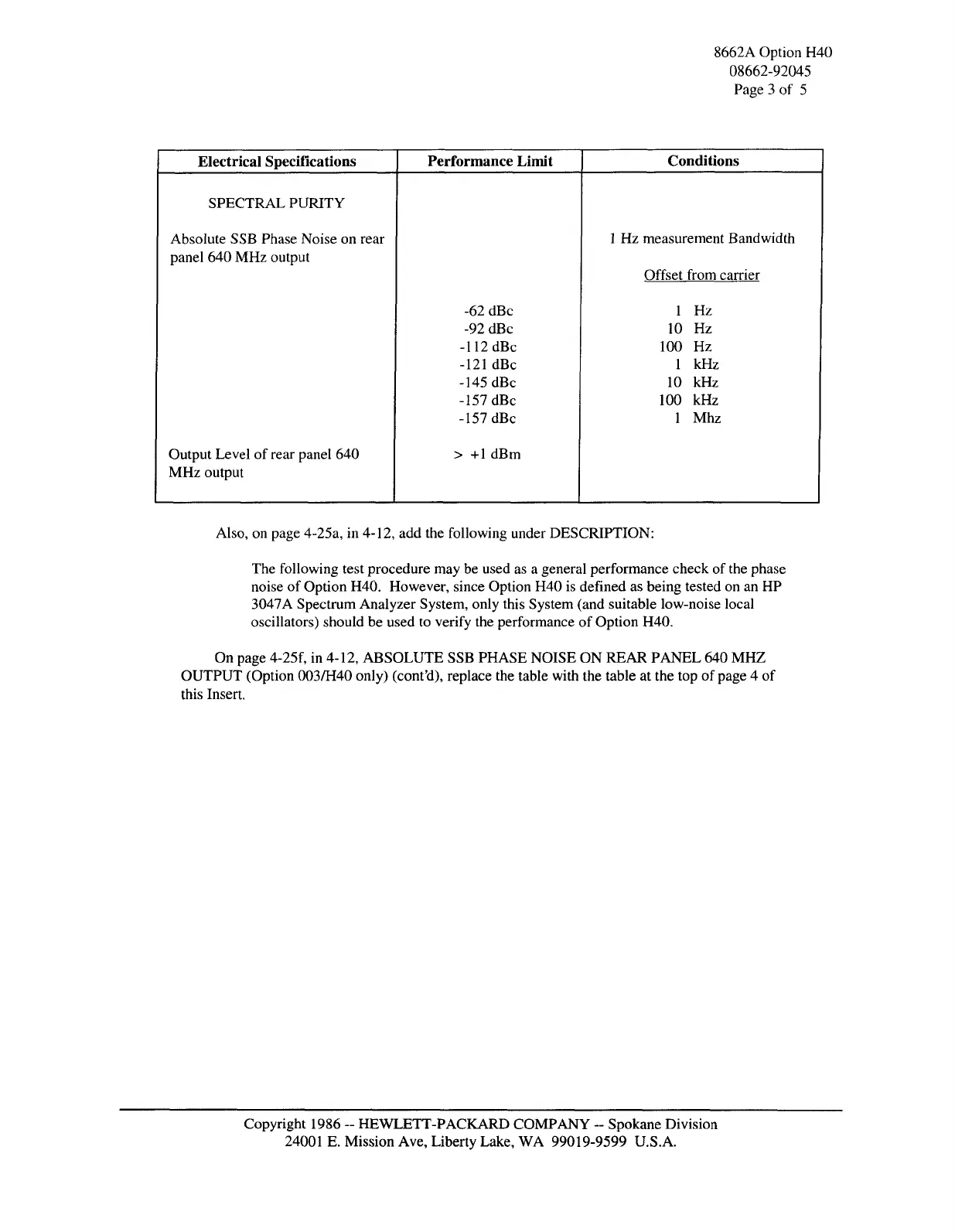

Electrical Specifications
SPECTRAL PURITY
Absolute SSB Phase Noise on rear
panel 640 MHz output
Output Level of rear panel 640
MHz output
Performance Limit
-62 dBc
-92 dBc
-112 dBc
-121 dBc
-145 dBc
-157 dBc
-157 dBc
> +1 dBm
Conditions
1 Hz measurement Bandwidth
Offset from carrier
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 Mhz
Also, on page 4-25a, in 4-12, add the following under DESCRIPTION:
The following test procedure may be used as a general performance check of the phase
noise of Option H40. However, since Option H40 is defined as being tested on an HP
3047A Spectrum Analyzer System, only this System (and suitable low-noise local
oscillators) should be used to verify the performance of Option H40.
On page 4-25f, in 4-12, ABSOLUTE SSB PHASE NOISE ON REAR PANEL 640 MHZ
OUTPUT (Option 003/H40 only) (cont'd), replace the table with the table at the top of page 4 of
this Insert.
Copyright 1986 - HEWLETT-PACKARD COMPANY ~ Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
