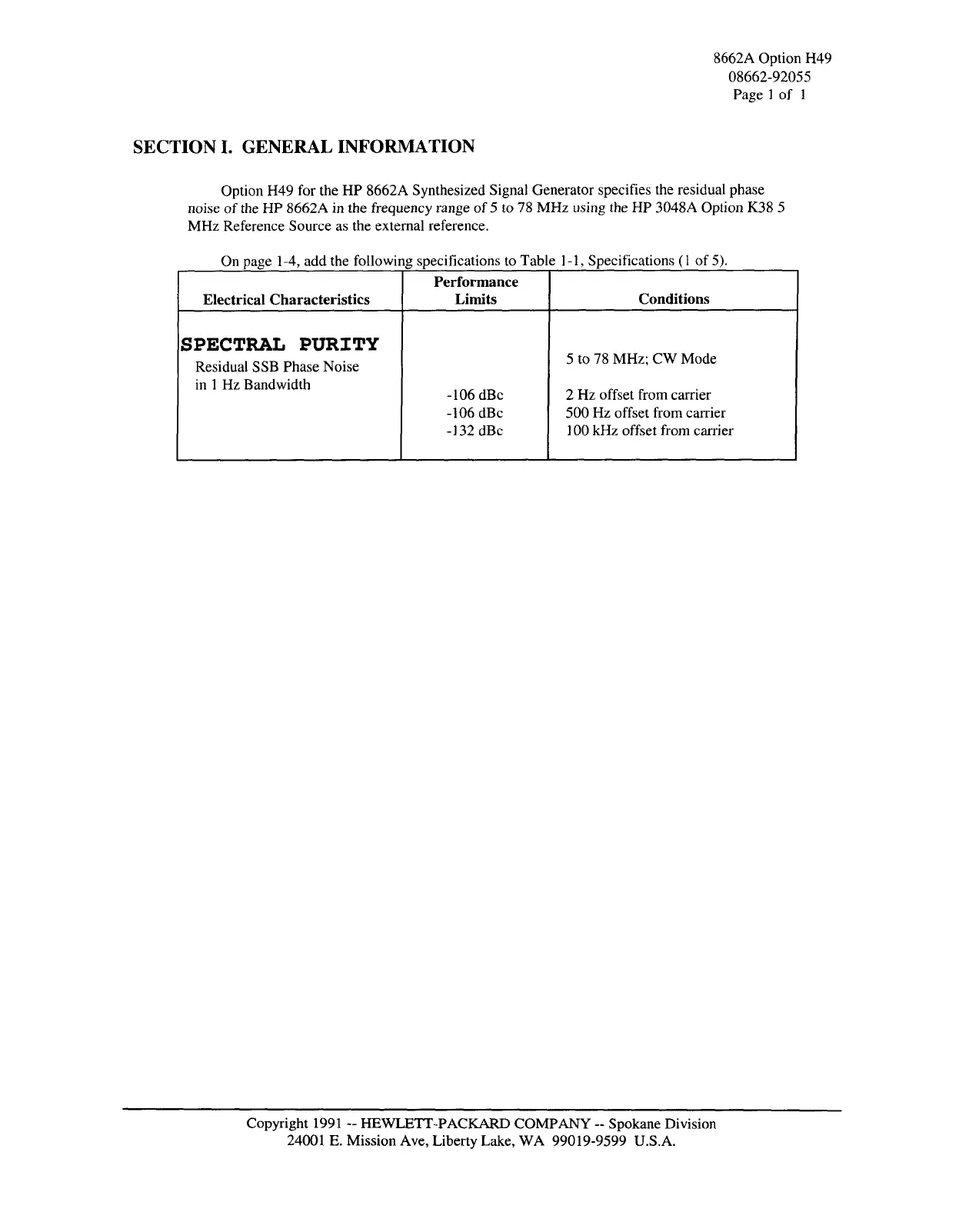

8662A Option H49
08662-92055
Page 1 of 1
SECTION I. GENERAL INFORMATION
Option H49 for the HP 8662A Synthesized Signal Generator specifies the residual phase
noise of the HP 8662A in the frequency range of
5
to 78 MHz using the HP 3048A Option K38 5
MHz Reference Source as the external reference.
On page 1-4, add the following specifications to Table 1-1, Specifications (1 of 5).
Electrical Characteristics
SPECTRAL PURITY
Residual SSB Phase Noise
in
1
Hz Bandwidth
Performance
Limits
-106 dBc
-106 dBc
-132 dBc
Conditions
5 to 78 MHz; CW Mode
2 Hz offset from carrier
500 Hz offset from carrier
100 kHz offset from carrier
Copyright 1991 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
