Fans
Preliminary Requirements
1.
Turn
the
unit
off.
2.
Remove
the
power cord.
3. Remove
the
front panel.
Procedures
1.
Using needlenose pliers, disconnect
the
fan wire
connector
from
its
pins
on
the
mother-
board.
Refer
to
Figure
2-11.
Voltage Test
Points
Fan
Wire
Connectors
LED
Wire
Connector

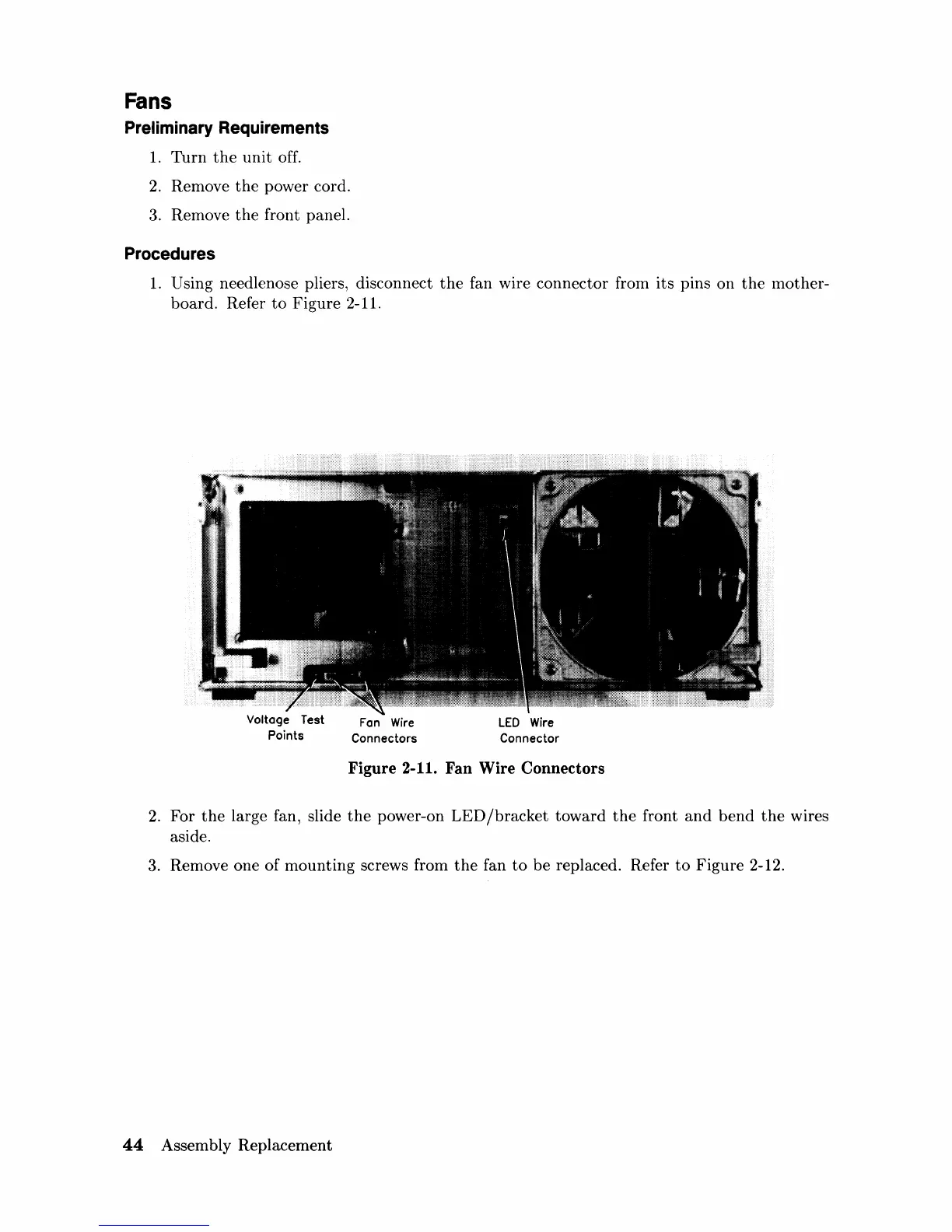

Figure 2-11.
Fan
Wire Connectors
2.
For
the
large fan, slide
the
power-on
LED/bracket
toward
the
front
and
bend
the
wires
aside.
3. Remove
one
of
mounting
screws from
the
fan
to
be
replaced. Refer
to
Figure
2-12.
44
Assembly
Replacement
