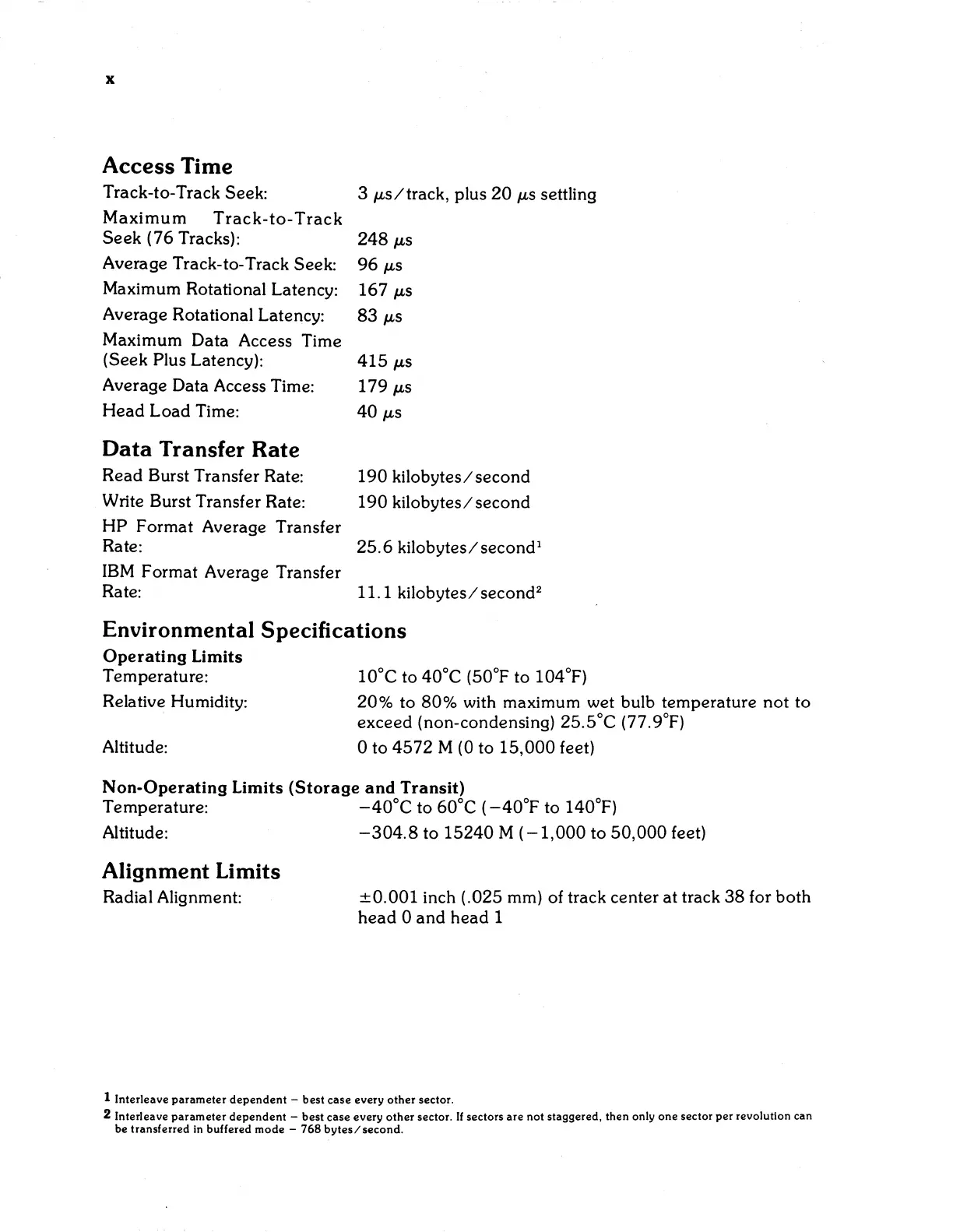

HP 9800 SERIES Service Manual

x
Access Time
Track-to-Track Seek:
Maximum Track-to- Track
Seek (76 Tracks):
Average Track-to-Track Seek:
Maximum Rotational Latency:
Average Rotational Latency:
Maximum Data Access Time
(Seek Plus Latency):
Average Data Access Time:
Head Load Time:
Data Transfer Rate
3 ILs/track, plus 20 ILS settling
248ILs
96ILs
167 ILS
83 ILS
Read Burst Transfer Rate: 190 kilobytes/second
Write Burst Transfer Rate: 190 kilobytes/ second
HP Format Average Transfer
Rate:
25.6 kilobytes/second
1
IBM Format Average Transfer
Rate: 11.1 kilobytes/ second
2
Environmental Specifications
Operating Limits
Temperature:
Relative Humidity:
Altitude:
20% to 80% with maximum wet bulb temperature not to
exceed (non-condensing)
25.5°C (77.9°F)
o to 4572 M (0 to 15,000 feet)
Non-Operating Limits (Storage and Transit)
Temperature:
-40°C to 60°C ( -40°F to 140°F)
Altitude: -304.8 to 15240 M (-1,000 to 50,000 feet)
Alignment Limits
Radial Alignment: ±0.001 inch (.025 mm) of track center at track 38 for both
head 0 and head 1
1 Interleave parameter dependent - best case every other sector.
2 Interleave
parameter dependent - best case every other sector. If sectors are not staggered, then only one sector per revolution can
be transferred in buffered
mode - 768 bytes/second.
