Upgrading Your System
Removing the Power Supply
4. Using the handle, lift up the power supply and place the bail in the bail lock to hold the power
supply upright.

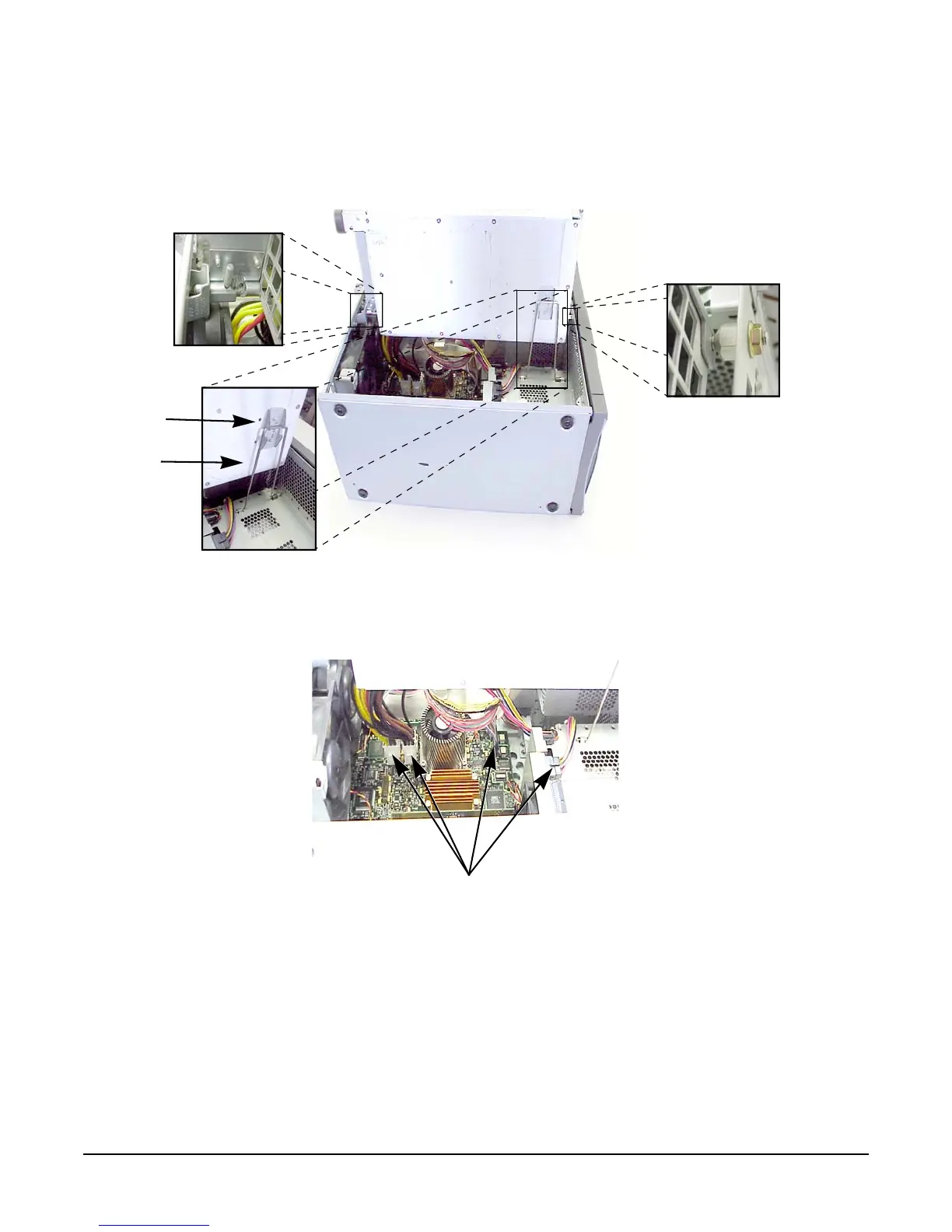

Figure 2-8 Tipping Up the Power Supply
Spring Hinge
Right-side Hinge Pin
Bail
Lock
Bail
5. Disconnect the four cables shown below located below the raised power supply: three system
power cables and the SCA hard disk backplane cable.
Figure 2-9 Location of Power Cables
Power Cables
Chapter 2
15
