Upgrading Your System
Reinserting PCI I/O Cards
Reinserting PCI I/O Cards
NOTE Reference the PCI label in the system for correct installation procedure.
CAUTION When installing a PCI I/O card, do not rock it from side to side, or the card may be damaged.
CAUTION To ensure optimum system performance and prevent system damage, install all I/O cards into
their original slots. Refer to the I/O slot numbers on the back of the workstation.
1. Align the edges of the PCI card with its slot and firmly push down to connect the card to the system board.
Visually inspect and confirm the connection between the I/O card and the system board.

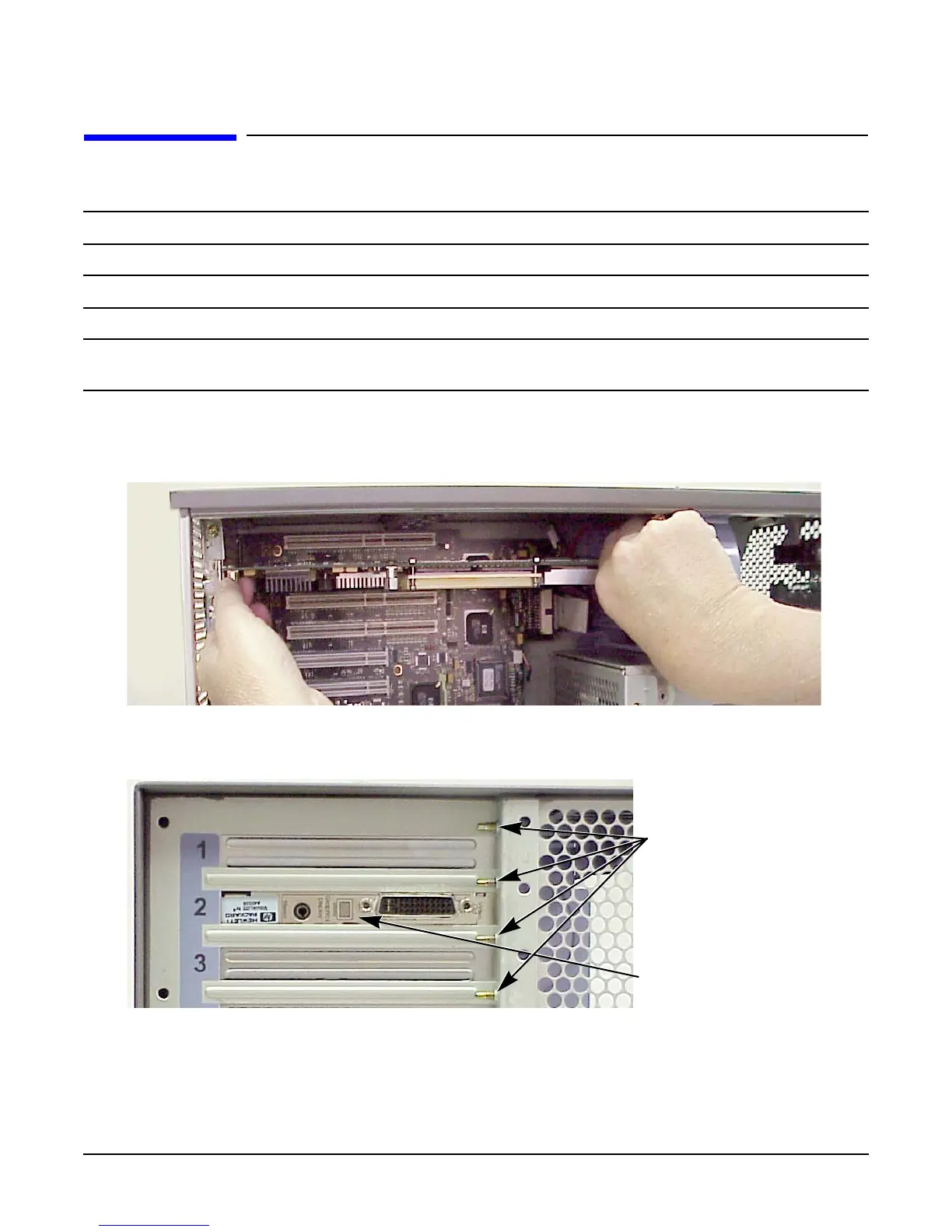

Figure 2-18 Installing the PCI Cards
2. Looking down on the PCI cards, replace the bulkhead screw for each PCI card.
Figure 2-19 Inserting the PCI Cards’ Bulkhead Screws
Typical PCI Card
Bulkhead screws
(insert from inside)
3. Repeat Steps 1 and 2 above to install all the PCI I/O cards.
24
