Upgrading Your System
Reinstalling the Air Divider
Reinstalling the Air Divider
1. Slide the air divider into the workstation.
2. Replace the two T-15 Torx screws—one on the back and one on the side—that secure the air divider to the
chassis.
3. Replace the PCI retainer clip by inserting its bottom end into the hole in the air divider, and then pushing
upward and inward—making sure that all the PCI cards’ edges are aligned properly with the individual
retainers on the clip—until the clip clicks into place against the top panel of the chassis. (The purpose of
the air divider is to keep the airflow that cools the PCI I/O cards separate from the airflow that cools the
system board; without the air divider, the cooling of the components would be insufficient.)

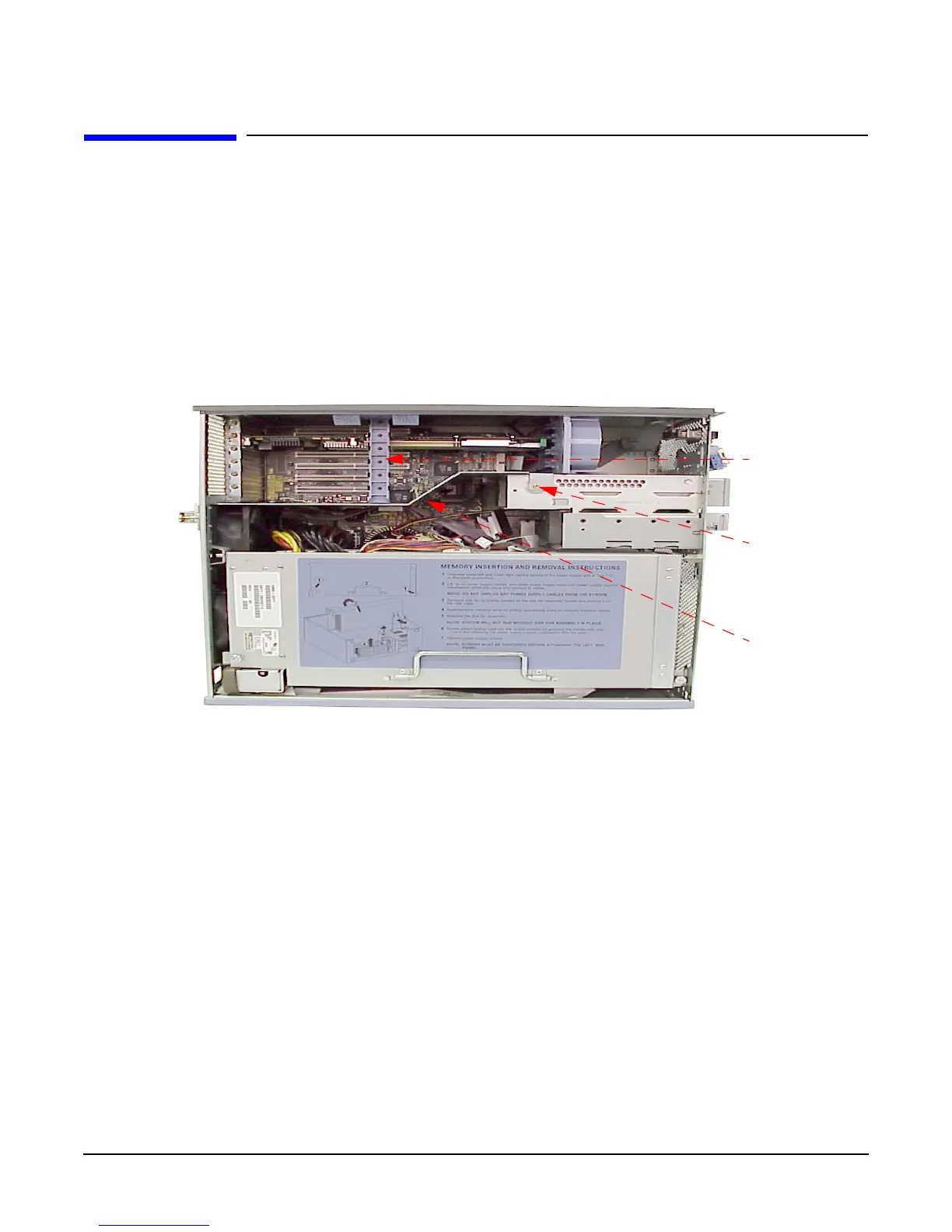

Figure 2-20 Installing the Air Divider
PCI
Retainer
Clip
T-15
Torx
Thumbscrew
Air Divider
Chapter 2
25
