Reinstalling the Hard Disk Fan
Reinstalling the Hard Disk Fan
1. Locate the area next to the DIMMs from which the fan was removed.
2. Align the hard-disk fan with the fan bracket guide and slide it into place, making sure the tabs engage the
holes in the chassis. The fan will click into place.

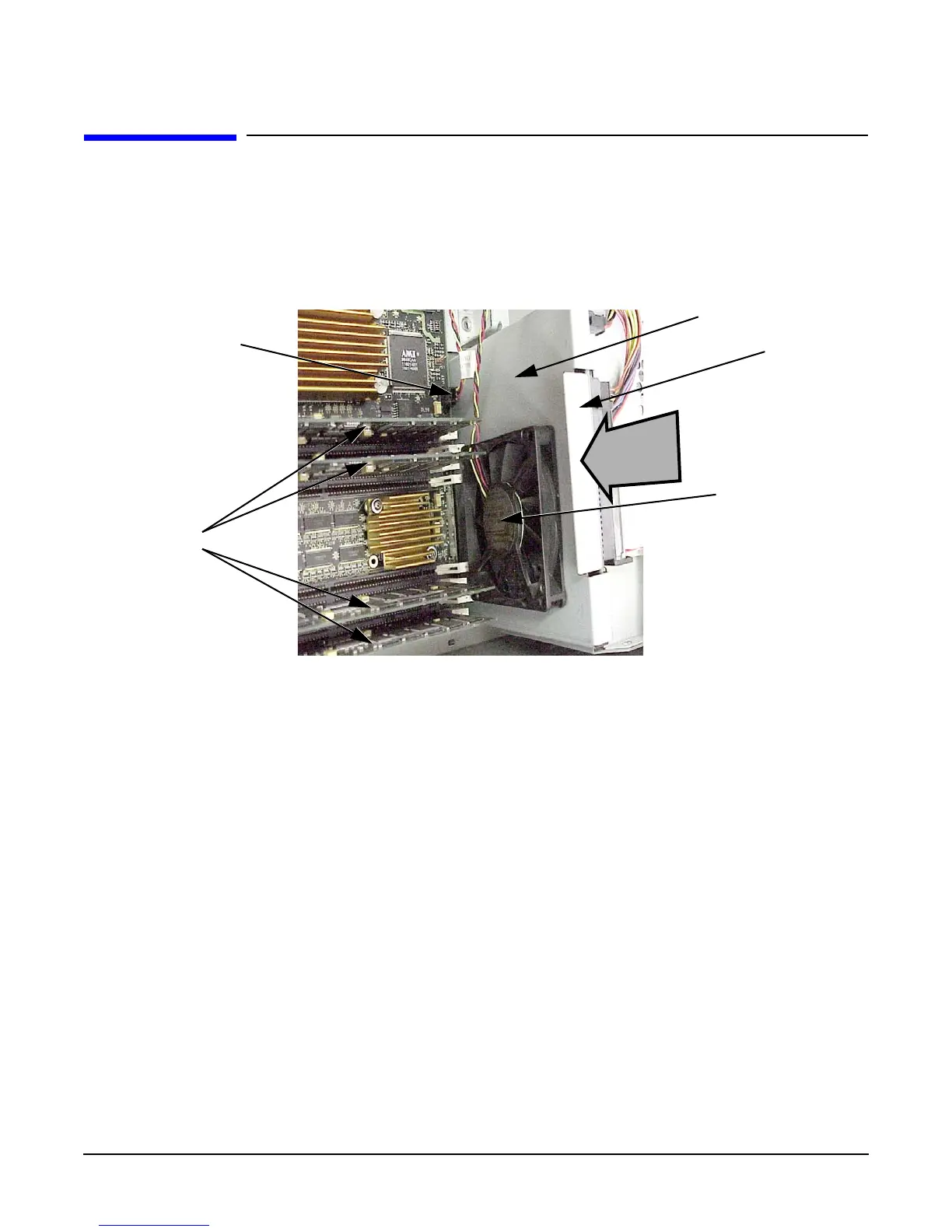

Figure 2-22 Reinstalling the Hard Disk Fan
Fan Bracket
Hard-Disk Fan
Power Cable
Fan Bracket Handle
Hard Disk Fan
DIMMs
3. Reconnect the fan’s power cable to the socket on the system board.
Chapter 2
27
