Fan
Description Spare part number
Fan L36913-001
Before removing the fan, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the bottom cover (see Computer feet and bottom cover on page 18).
3. Disconnect the battery (see Battery on page 20).

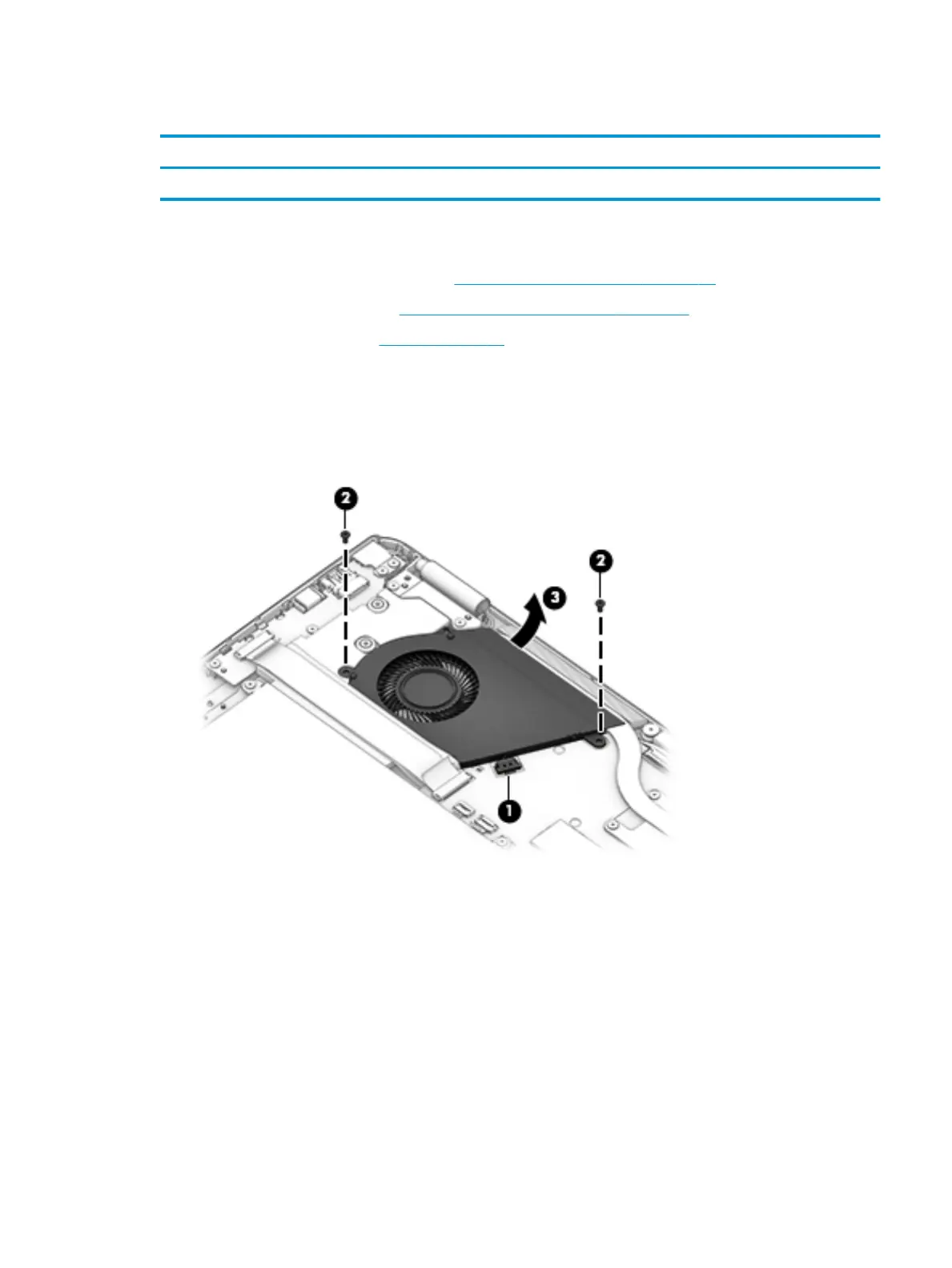

Remove the fan:
1. Disconnect the fan cable from the system board (1).
2. Remove the two Phillips M2.0×4.0 screws (2) that secure the fan to the system board.
3. Remove the fan from the computer (3).
Reverse this procedure to install the fan.
