Display assembly
Description Spare part number
Display assembly L36904-001
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the bottom cover (see Computer feet and bottom cover on page 18).
3. Disconnect the battery (see Battery on page 20).
Remove the display assembly:

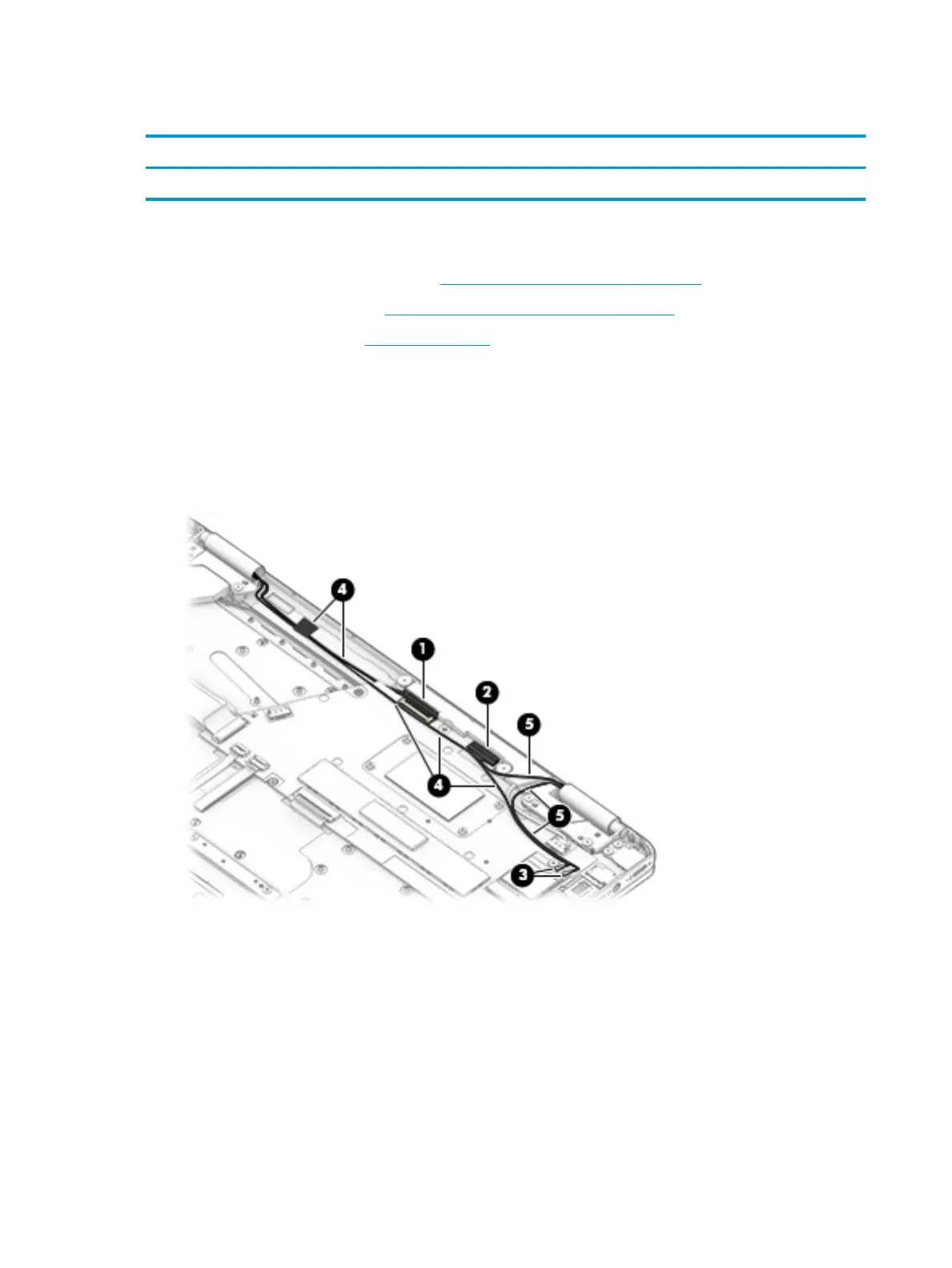

1. Disconnect the display cable (1) and the touch control cable (2) from the system board.
2. Disconnect the antenna cables from the WLAN module (3).
3. Remove the display cable from the routing channel in the computer (4).
4. Remove the antenna cables from the routing channel in the computer (5).
5. Position the computer with the keyboard facing downward and the display open 90 degrees and hanging
over the edge of a table.
6. Remove the four Phillips M2.5×6.0 screws (1) that secure the display to the computer.
28 Chapter 5 Removal and replacement procedures
