USB bracket, I/O board
Description Spare part number
USB bracket L36909-001
Before removing the USB bracket from the I/O board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the bottom cover (see Computer feet and bottom cover on page 18).
3. Remove the battery (see Battery on page 20).
4. Remove the I/O board (see USB bracket, I/O board on page 32).

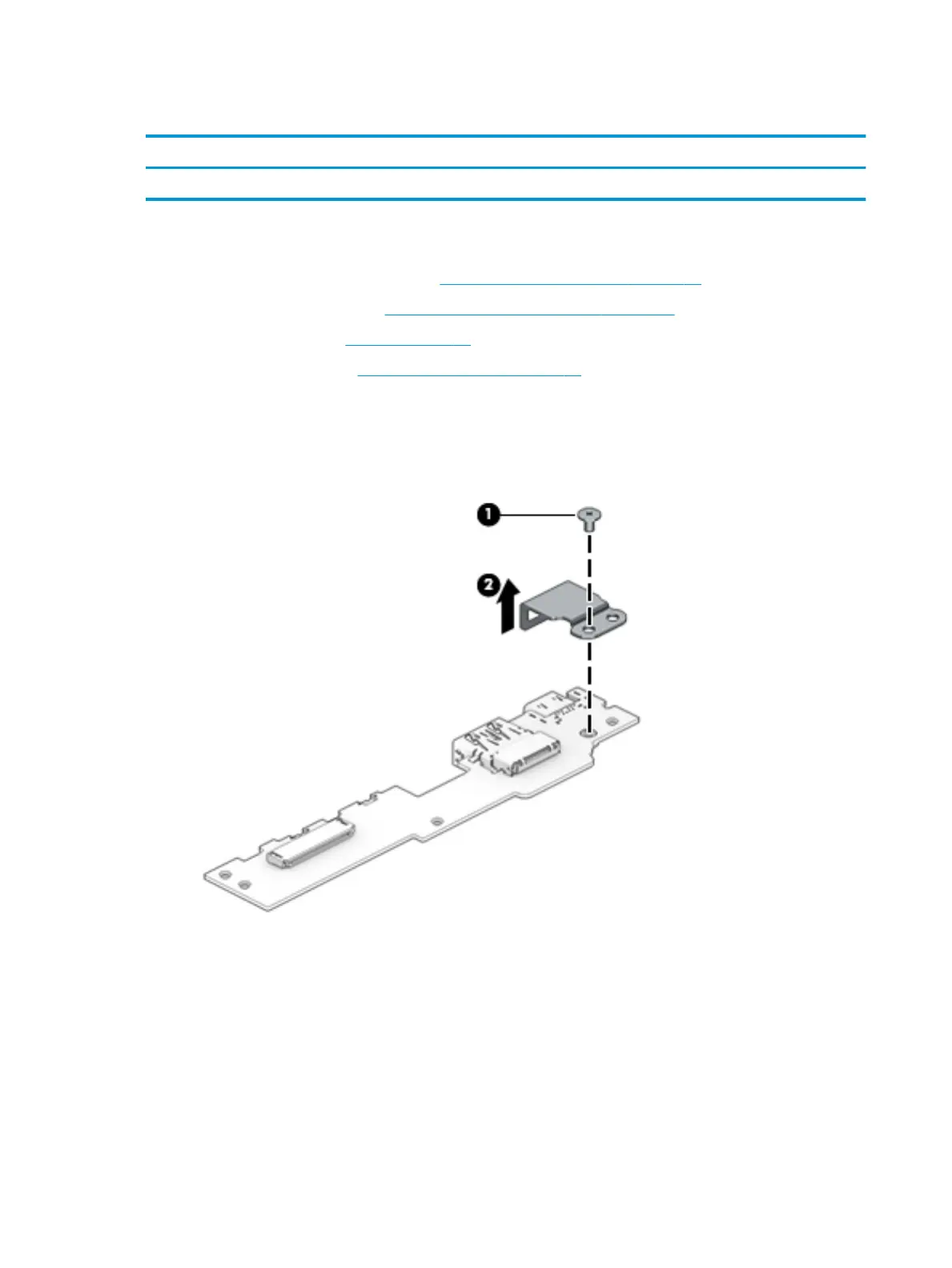

Remove the USB bracket from the I/O board:
1. Remove the Phillips M2.0×4.0 screw (1) that secures the USB bracket to the I/O board.
2. Remove the bracket from the I/O board (2).
Reverse this procedure to install the USB bracket onto the I/O board.
32 Chapter 5 Removal and replacement procedures
